SKU: KBS50-PP-INA

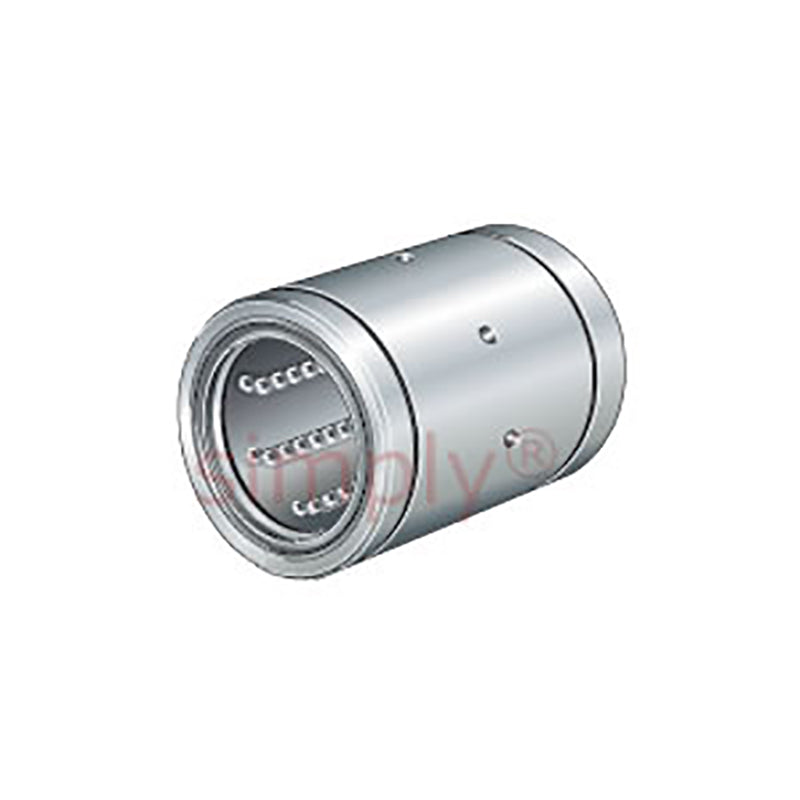

INA KBS50PP Linear Ball Bushing with Contact Seals 50x75x100mm
INA KBS50PP Linear Ball Bushing with Contact Seals 50x75x100mm
Regular price
€236,75
ex VAT
Regular price
Sale price
€236,75
ex VAT
In stock
Price Break
3+
€179,92
5+
€169,81
10+
€167,79
15+
€165,77
20+
€163,75
30+
€161,73
40+
€151,62
50+
€149,60
60+
€147,58
75+
€145,56
100+
€141,51
Quantity
Couldn't load pickup availability
Description
Description
|
INA KBS..-PP Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 75mm
- Width:
- 100mm
Technical
Technical

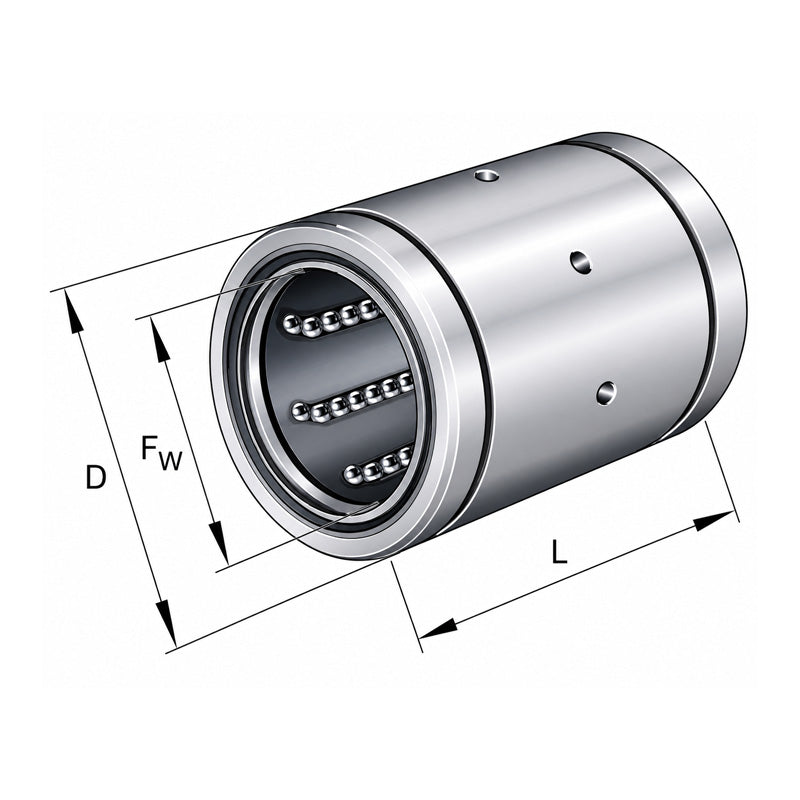

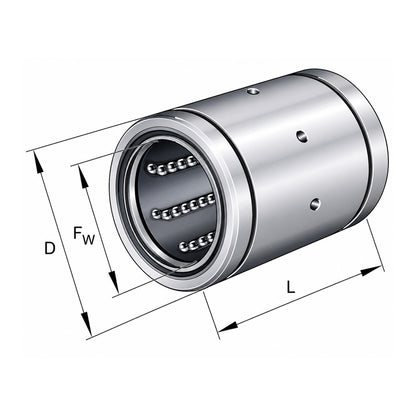

| Fw | 50mm |
|---|---|
| D | 75mm |
| L | 100mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 2.65mm |
| DN | 72mm |
| L2 | 77.3mm |
| Mass | 1 kg |
| Basic dynamic load rating C min | 8700 N |
| Basic static load rating C0 min | 6300 N |
| Basic dynamic load rating C max | 9200 N |
| Basic static load rating C0 max | 8000 N |
