SKU: KH3050-2RS-EU

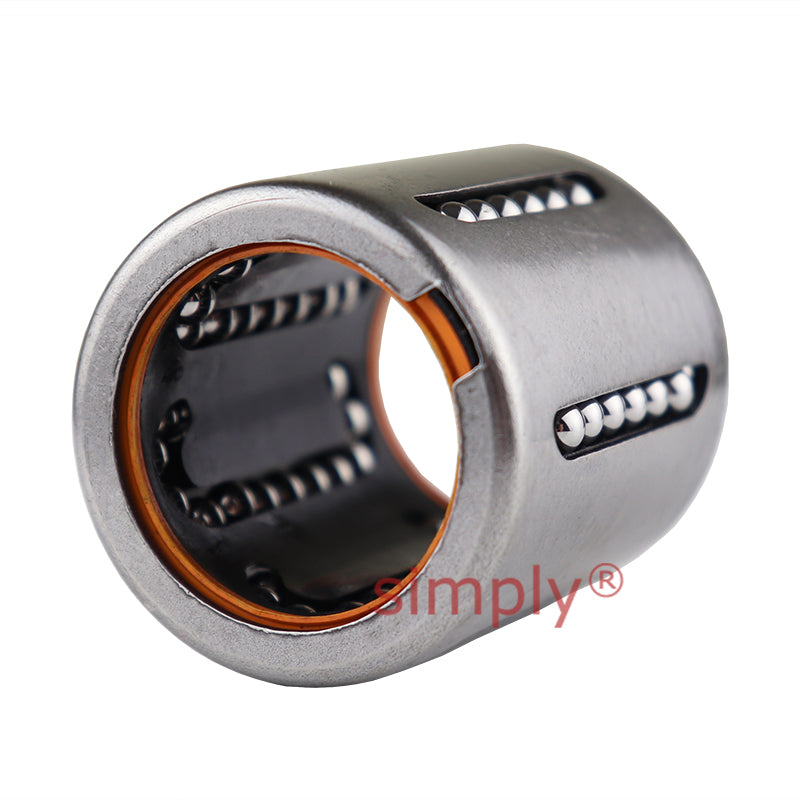

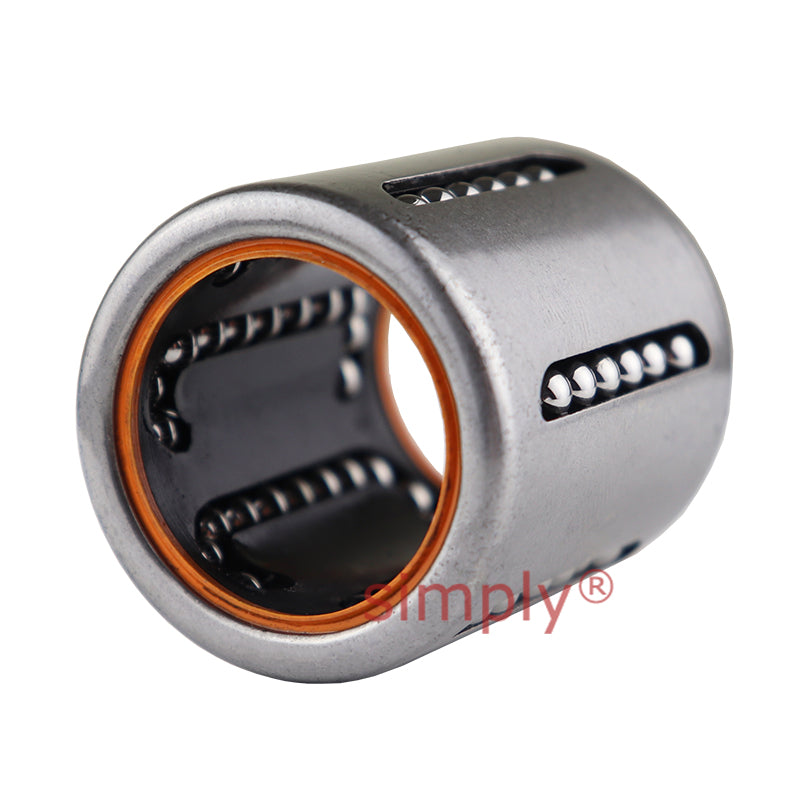

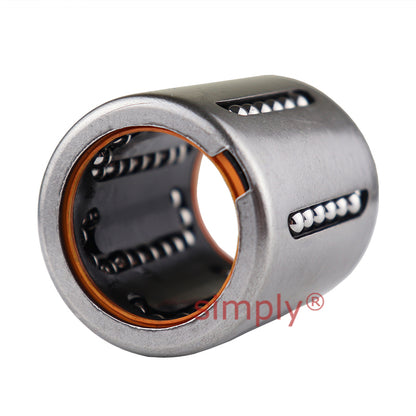

Budget KH30PP Relubricatable Closed Linear Ball Bushing Sealed with Contact Seals 30x40x50mm
- Regular price
- €18.53 ex VAT
- Sale price
- €18,53
- Regular price
-
Quantity Price Breaks
Budget KH30PP Relubricatable Closed Linear Ball Bushing Sealed with Contact Seals 30x40x50mm
- Regular price
- €18.53 ex VAT
- Sale price
- €18,53
- Regular price
-
Description
Quality Budget KH..-PP Linear Ball Bearings: These compact range linear ball bearings have a small radial design envelope and are particularly economical. The low radial section height makes them ideal for applications in which only a small amount of radial space is available. KH linear ball bearings have a closed design, making them suitable for use on shafts. The bearings are maintenance-free for many applications due to the initial greasing with high-quality grease. If necessary, they can be relubricated via the openings in the outer ring. This bearing has a lip seal on both sides of the bearing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C.
Benefits: Economical, maintenance-free, re-lubricatable, suitable for applications with a small amount of available radial space.
Technical
| Fw | = | 30mm |
| D | = | 40mm |
| L | = | 50mm |
| JL4 | = | 8mm |
| N2 | = | 2.5mm |
| Mass | = | 0.095 kg |
| Basic dynamic load rating C min | = | 3300 N |
| Basic static load rating C0 min | = | 2700 N |
| Basic dynamic load rating C max | = | 3300 N |
| Basic static load rating C0 max | = | 3100 N |
