SKU: KMTA30-SKF

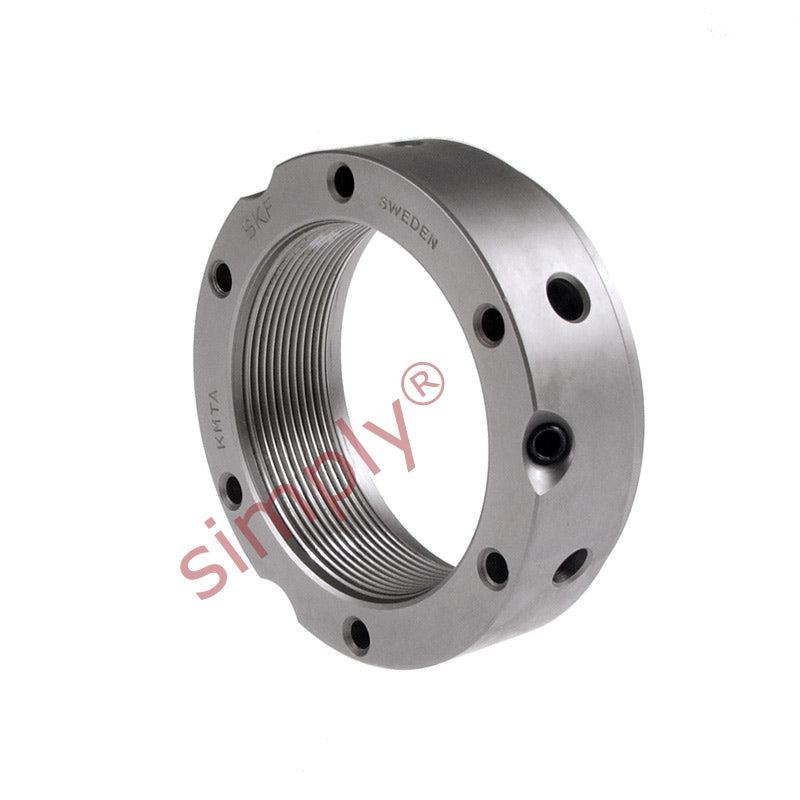

SKF KMTA30 Precision Locking Nut with Locking Pins M150x3mm
SKF KMTA30 Precision Locking Nut with Locking Pins M150x3mm
Out of stock
Share this product
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M150x3
Technical
Technical
| G | M150x3 |
|---|---|
| d2 | 190mm |
| d3 | 180mm |
| d4 | 152mm |
| B | 32mm |
| J1 | 175mm |
| J2 | 17mm |
| N1 | 6.4mm |
| N2 | 10mm |
| Axial load capacity | 1040 kN |
| Loosening torque | 1440 Nm |
| Weight | 2.6 kg |
| Spanner | B180-195 |
| Grub Screw | M10 |
| Screw torque | 35 Nm |
| Name | KMTA30 |
