SKU: KMTA36-SKF

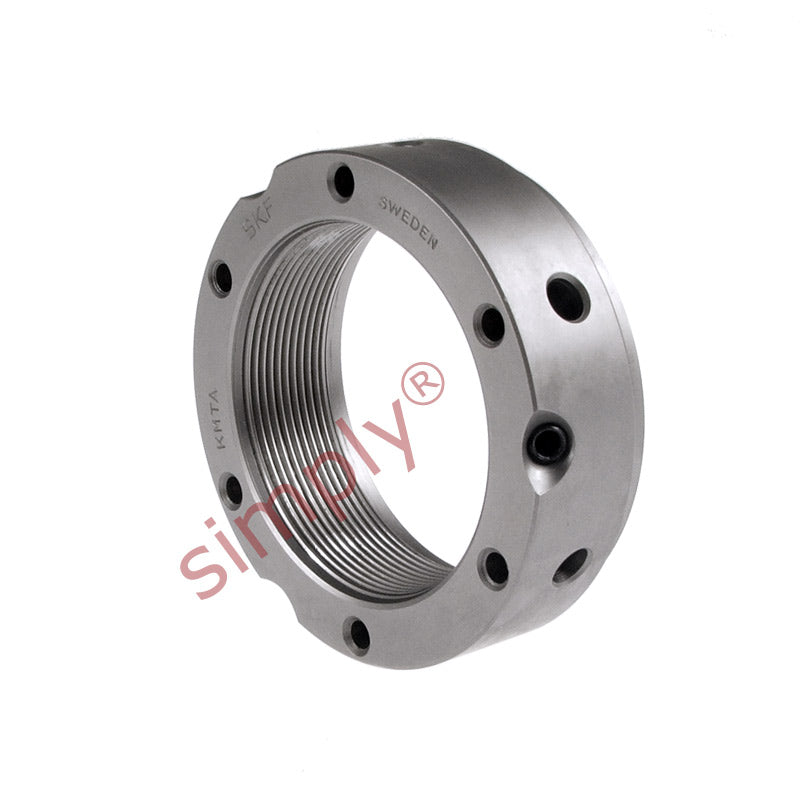

SKF KMTA36 Precision Locking Nut with Locking Pins M180x3mm

Name: SKF KMTA36 Precision Locking Nut with Locking Pins M180x3mm
Brand: SKF
SKU: KMTA36-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable

Brand / Quality:: SKF - High Quality
Thread Size:: M180x3

Technical

G	M180x3
d2	230mm
d3	215mm
d4	182mm
B	32mm
J1	210mm
J2	17mm
N1	8.4mm
N2	10mm
Axial load capacity	1220 kN
Loosening torque	1900 Nm
Weight	3.9 kg
Spanner	B230-245
Grub Screw	M10
Screw torque	35 Nm
Name	KMTA36
