SKU: KNO25-B-PP-INA

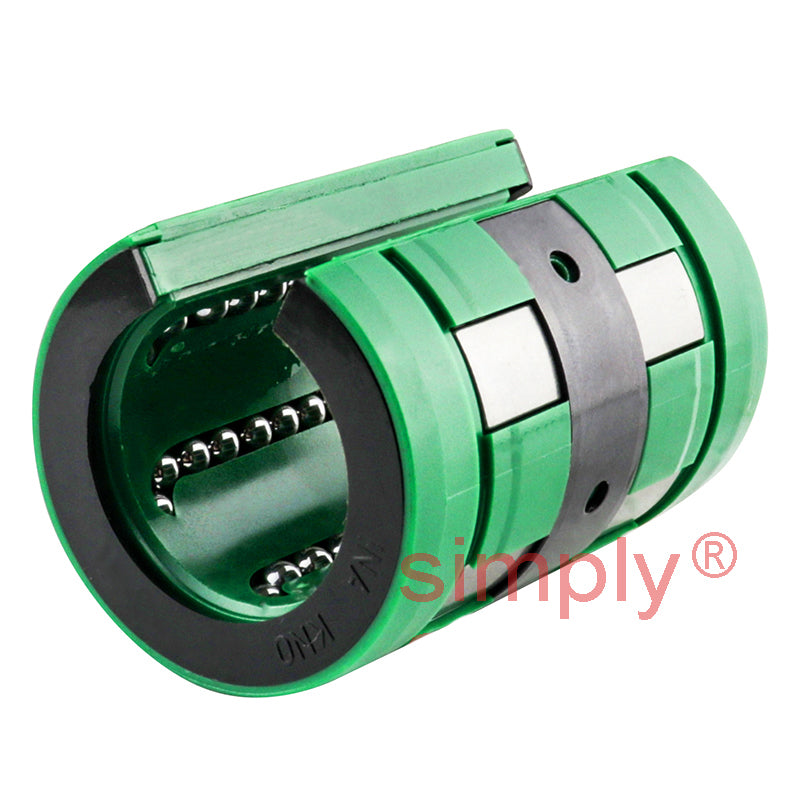

INA KNO25BPP Relubricatable Open Linear Ball Bushing with Contact Seals 25x40x58mm
INA KNO25BPP Relubricatable Open Linear Ball Bushing with Contact Seals 25x40x58mm
Regular price
€107,85
ex VAT
Regular price
Sale price
€107,85
ex VAT
In stock
Price Break
3+
€81,96
5+
€77,36
10+
€76,43
15+
€75,51
20+
€74,59
30+
€73,67
40+
€69,07
50+
€68,15
60+
€67,23
75+
€66,30
100+
€64,46
Quantity
Couldn't load pickup availability
Description
Description
|
INA KNO..-B-PP Linear Ball Bearings: These light range linear ball bearings have adjustable clearance in the appropriate housing. In order to compensate misalignments arising from manufacturing tolerances, mounting errors and shaft deflection, the linear bearings of KNO..-B-PP are self-aligning up to ±30 deg. Their robust construction allows operating even under aggressive operating conditions. The bearings are maintenance-free for many applications due to the initial greasing with a high quality grease. If necessary, they can be relubricated via the radial holes arranged in the centre of the bearing. This bearing has contact seals on both sides of the bearing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Allows operating under aggressive operating conditions, maintenance-free, relubricatable. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 40mm
- Width:
- 58mm
Technical
Technical

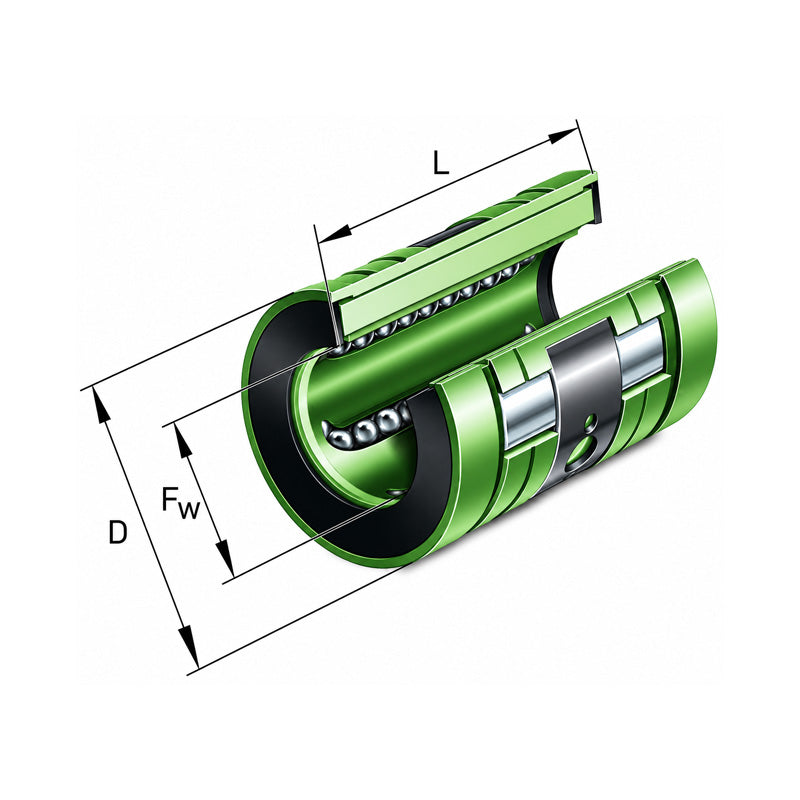

| Fw | 25mm |
|---|---|
| D | 40mm |
| L | 58mm |
| Number of rows of ball | 5 |
| A10 | 1.5mm |
| B2 | 11.5mm |
| b1 max | 2.5mm |
| N4 | 3mm |
| T4 | 1.4mm |
| α | 57° |
| Mass | 0.11 kg |
| Basic dynamic load rating C max | 3100 N |
| Basic static load ring C0 max | 2260 N |
