• Budget KR22 Crowned Cam Follower 22x12x10 M10x1 Thread
1 1

SKU: KR22-EU

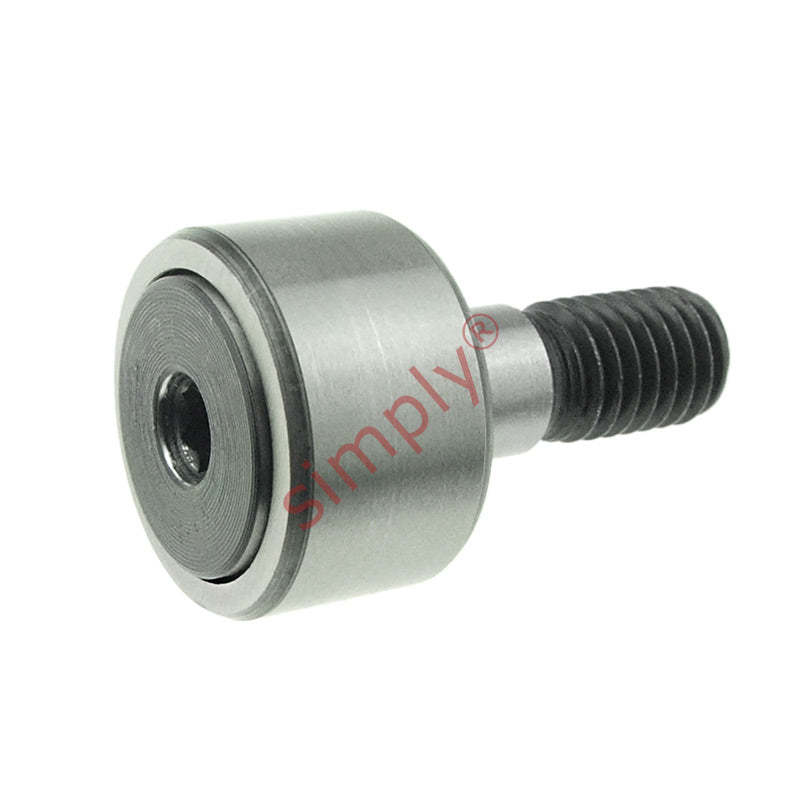

Budget KR22 Crowned Cam Follower 22x12x10 M10x1 Thread

Budget KR22 Crowned Cam Follower 22x12x10 M10x1 Thread
€25,46 ex VAT
€25,46 ex VAT
Sale Sold out

In stock

Price Break
10+ €19,35
19+ €18,26
29+ €18,05
39+ €17,83
49+ €17,61
74+ €17,39
99+ €16,31
199+ €16,09
249+ €15,87
499+ €15,65
999+ €15,22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KR Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer.
Benefits: High load, shock resistant.
Brand / Quality:
EU Budget - Economy Quality
Outside Diameter:
22mm
Width:
12mm
Pitch:
M10x1

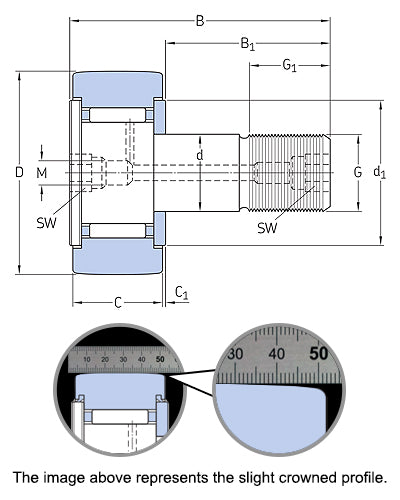

Technical
D 22mm
C 12mm
d (Stud Diameter) 10mm
B 36mm
B1 23mm
C1 0.6mm
d1 17mm
G M10x1
G1 12mm
M 4mm
r min 0.3mm
Dynamic load 4400 N
Static load 5000 N
Fatigue load limit Pu 560 N
Radial dynamic load 4250 N
Radial static load 6000 N
Speed rating 8000 rpm
Weight 44 g
