SKU: KR22PPA-IKO
Major Brand KR22PPA Contact Sealed Crowned Cam Follower 22x12x10 M10x1.25 Thread
Major Brand KR22PPA Contact Sealed Crowned Cam Follower 22x12x10 M10x1.25 Thread
Regular price
€47,77
ex VAT
Regular price
Sale price
€47,77
ex VAT
In stock
Price Break
10+
€36,31
19+
€34,27
29+
€33,86
39+
€33,45
49+
€33,04
74+
€32,64
99+
€30,60
199+
€30,19
249+
€29,78
499+
€29,37
999+
€28,56
Quantity
Couldn't load pickup availability
Description
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 22mm
- Width:
- 12mm
- Pitch:
- M10x1.25
Technical
Technical

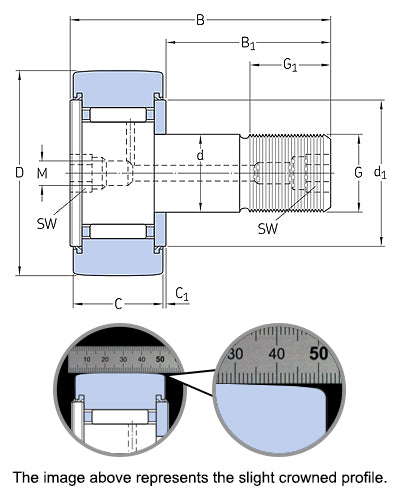

| D | 22mm |
|---|---|
| C | 12mm |
| d (Stud Diameter) | 10mm |
| B | 36mm |
| B1 | 23mm |
| C1 | 0.6mm |
| d1 | 17.5mm |
| G | M10x1.25mm |
| G1 | 12mm |
| r min | 0.3mm |
| SW | 5mm |
| Dynamic load | 4400 N |
| Static load | 5000 N |
| Fatigue load limit Pu | 560 N |
| Radial dynamic load | 4250 N |
| Radial static load | 6000 N |
| Speed rating | 8000 rpm |
| Weight | 43 g |
