SKU: KS12-PP-INA

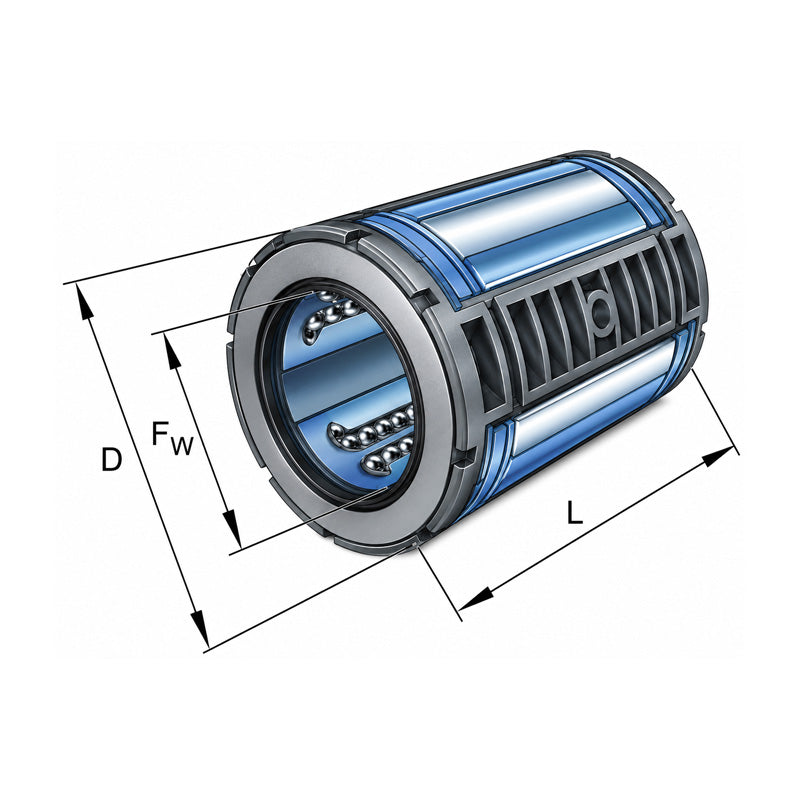

INA KS12PP Closed Self Aligning Linear Ball Bushing with Contact Seals 12x22x32mm
INA KS12PP Closed Self Aligning Linear Ball Bushing with Contact Seals 12x22x32mm
Regular price
€47,07
ex VAT
Regular price
Sale price
€47,07
ex VAT
In stock
Price Break
3+
€35,84
5+
€33,83
10+
€33,42
15+
€33,02
20+
€32,62
30+
€32,22
40+
€30,20
50+
€29,80
60+
€29,40
75+
€28,99
100+
€28,19
Quantity
Couldn't load pickup availability
Description
Description
|
INA KS..-PP Self Aligning Linear Ball Bearings: These heavy duty range linear ball bearing and housing units have particularly high load carrying capacity and have an angular adjustment facility for compensation of misalignments. KS linear ball bearings can compensate misalignment of up to ±40 deg. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with lip seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, compensates misalignments, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 22mm
- Width:
- 32mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 22mm |
| L | 32mm |
| BL2 | 1.3mm |
| DN | 21mm |
| L2 | 22.6mm |
| N4 | 3mm |
| Mass | 0.018 kg |
| Basic dynamic load rating C min | 630 N |
| Basic static load rating C0 min | 600 N |
| Basic dynamic load rating C max | 900 N |
| Basic static load rating C0 max | 1100 N |
