SKU: LFR.50/6-42RS.MB

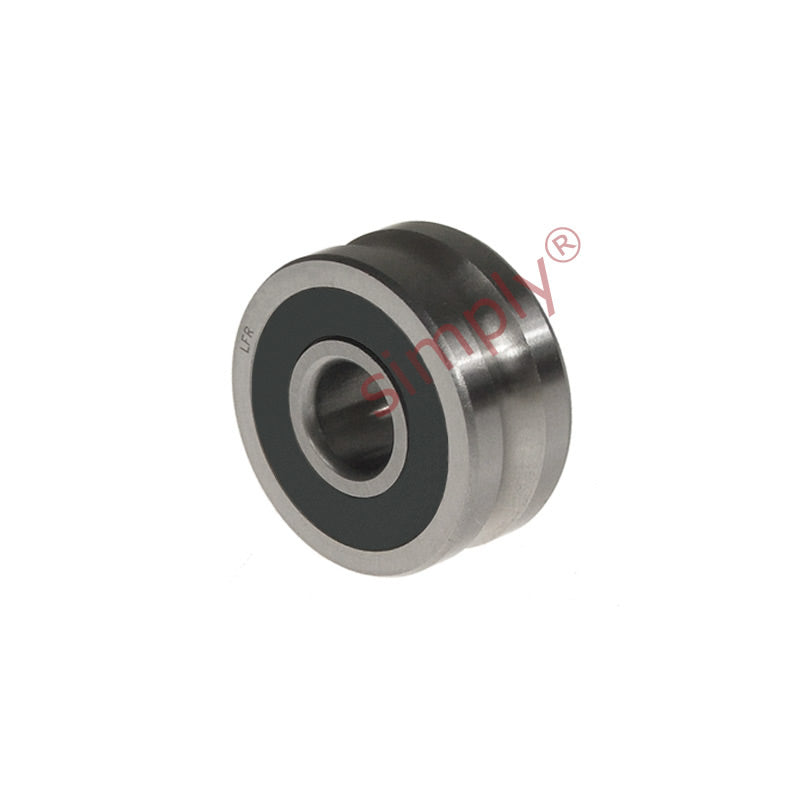

Major Brand LFR50/6-42RS Yoke Type Track Roller with U Groove 5x16x7/8mm
Major Brand LFR50/6-42RS Yoke Type Track Roller with U Groove 5x16x7/8mm
Equivalent to: LFR50/5NPP4
Out of stock
Share this product
Description
Description
Please note: This track roller has a different width for the inner and outer raceways, the inner is 8mm wide the outer is 7mm wide.
|
Rubber Sealed U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with rubber seals inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The seal can be easily removed for applications that only require 1 seal. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 16mm
- Width:
- 7mm / 8mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 5mm |
|---|---|
| D max | 16mm |
| B | 8mm |
| AT | 9mm |
| C | 7mm |
| ds | 4mm |
| r min | 0.2mm |
| Dynamic load | 1200 N |
| Static load | 860 N |
| Speed in grease | 1300 rpm |
| Speed in oil | 1780 rpm |
