SKU: LM.16.UU.AJ.EU

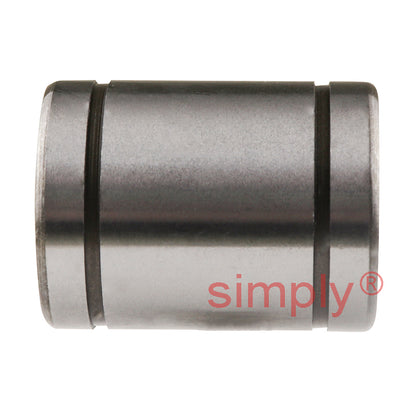

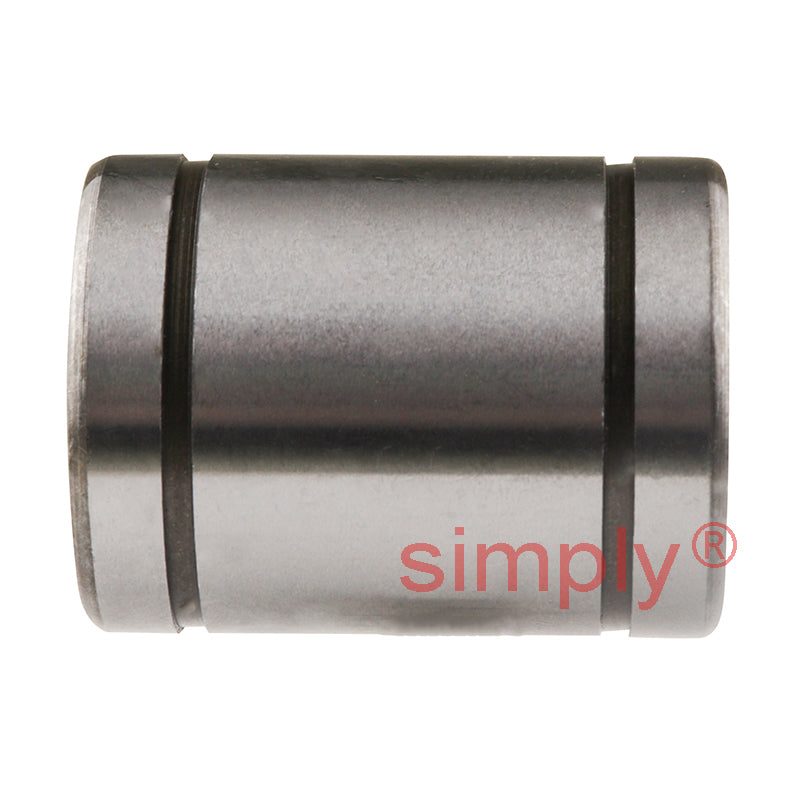

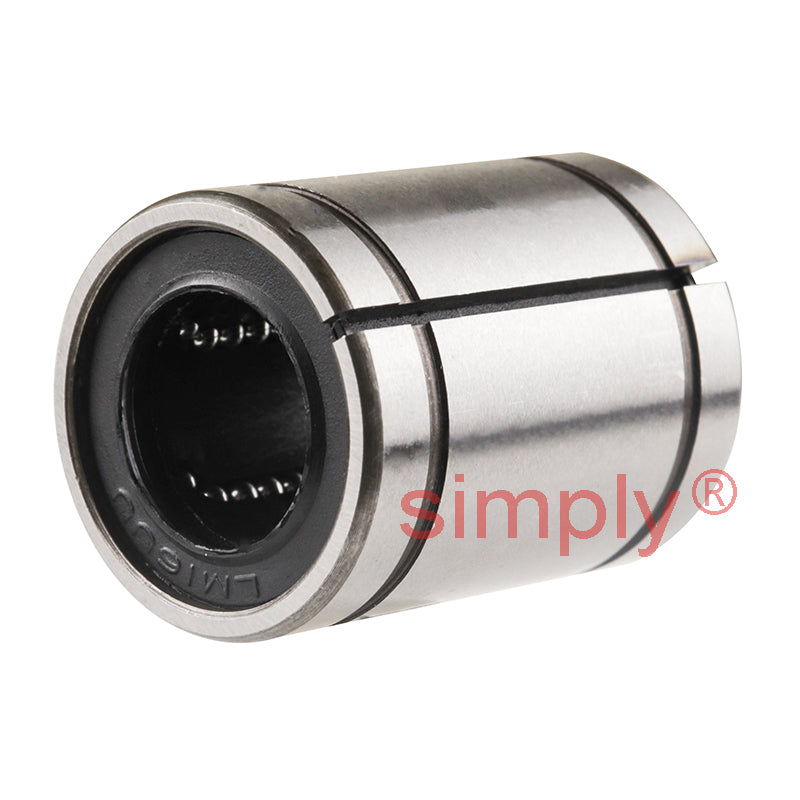

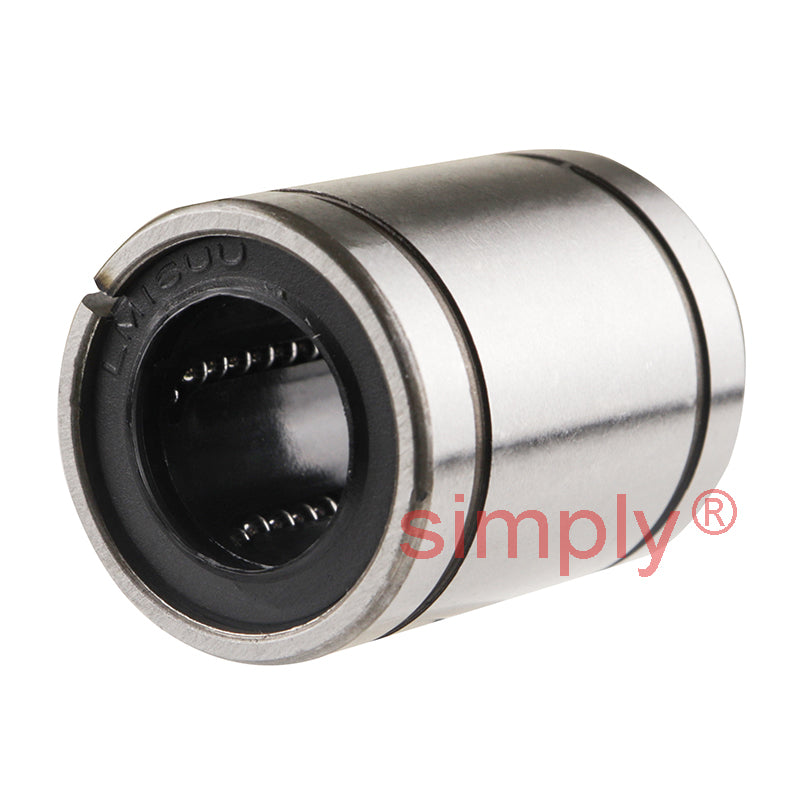

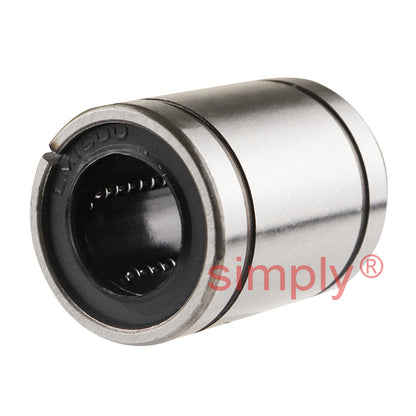

LM16UUAJ Adjustable Linear Ball Bushing with Rubber Seals 16x28x37mm

LM16UUAJ Adjustable Linear Ball Bushing with Rubber Seals 16x28x37mm
€14,66 ex VAT
€14,66 ex VAT
Sale Sold out

Equivalent to: SM16GUUAJ LBD16UUAJ LB16NTYDD N16VUUADJ L16ADJUU TB16ADJUU

In stock

Price Break
3+ €11,14
5+ €10,52
10+ €10,39
15+ €10,27
20+ €10,14
30+ €10,02
40+ €9,39
50+ €9,26
60+ €9,14
75+ €9,01
100+ €8,76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMAJ_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
16mm
Outside Diameter:
28mm
Length:
37mm
Technical
Inside Diameter dr 16mm Tol + 0 to - 6µm
Outside Diameter D 28mm Tol + 0 to - 12µm
Length L 37mm Tol + 0 to - 200µm
W 1.6mm
D1 27mm
h 1.5mm
Eccentricity 8µm
Dynamic load C 49 kgf
Static load C<sub>o</sub> 78 kgf
Weight 69 g
B 26.5mm Tol + 0 to - 200&micro;m
Number of ball rows 5
