SKU: LM.30.UU.AJ.EU

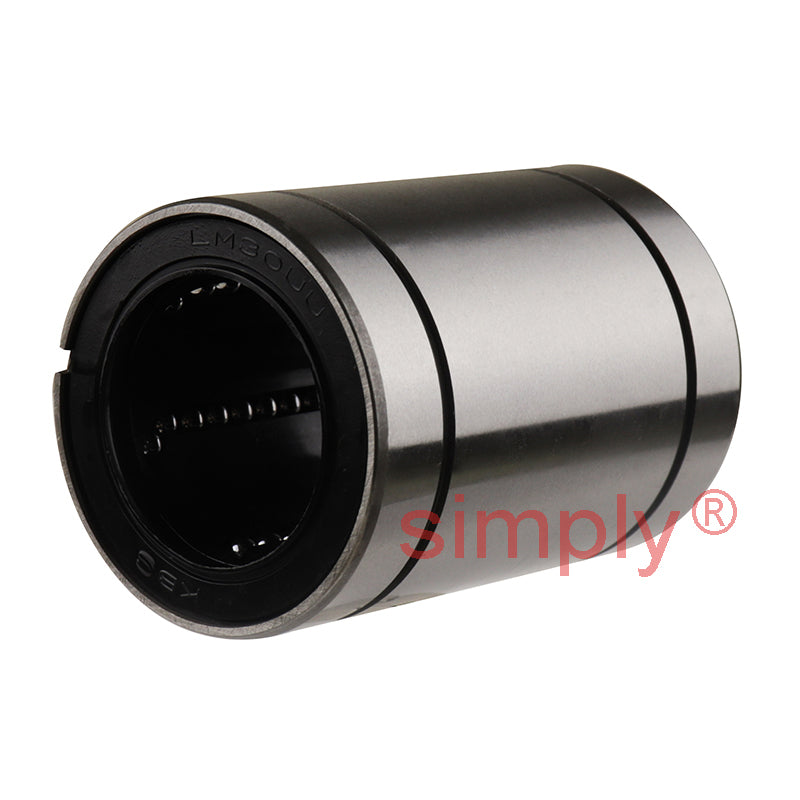

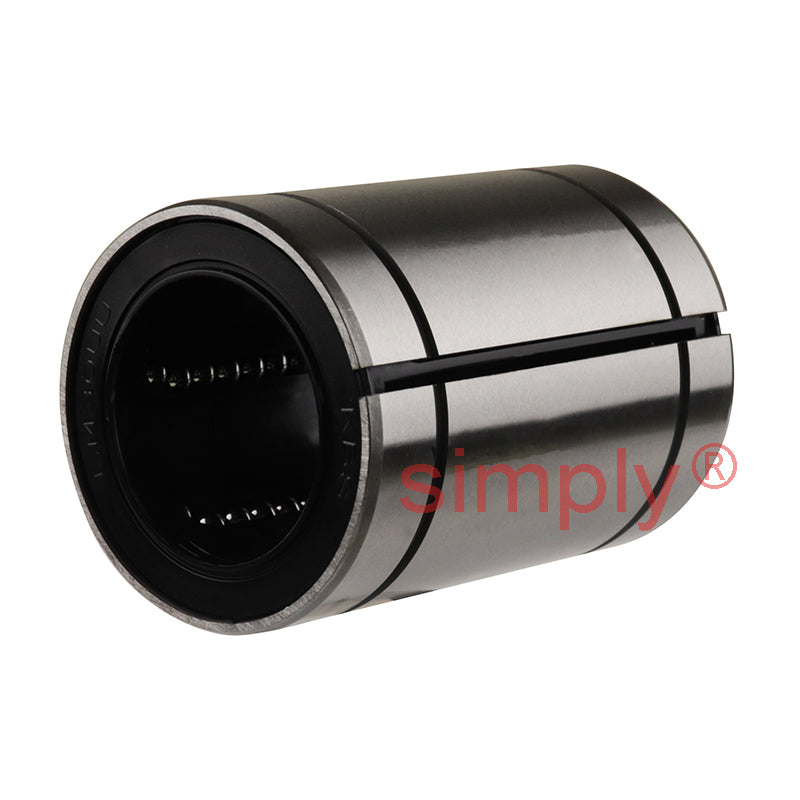

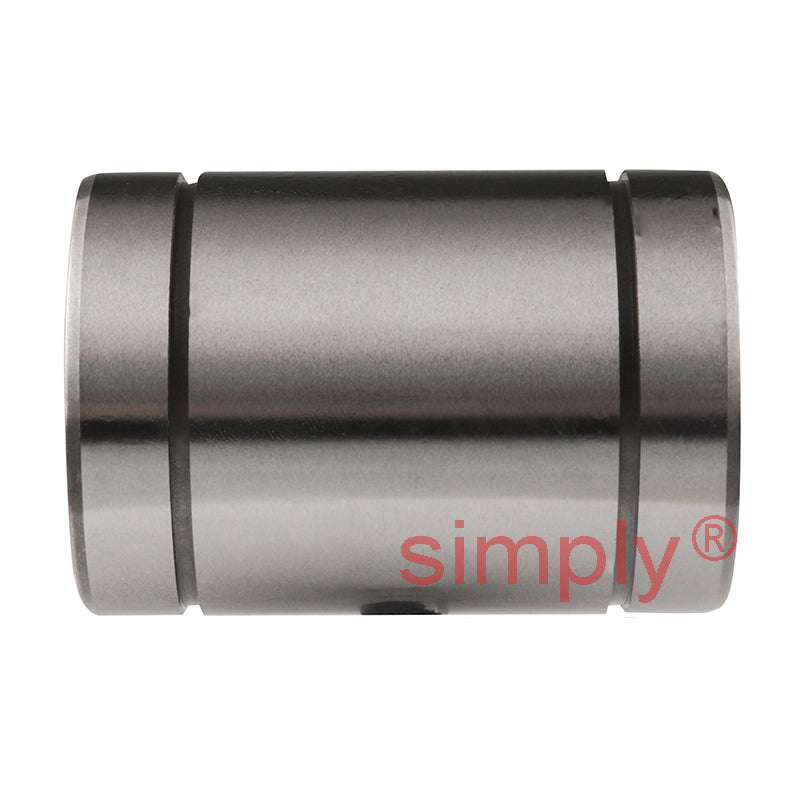

LM30UUAJ Adjustable Linear Ball Bushing with Rubber Seals 30x45x64mm

LM30UUAJ Adjustable Linear Ball Bushing with Rubber Seals 30x45x64mm
€22,06 ex VAT
€22,06 ex VAT
Sale Sold out

Equivalent to: SM30GUUAJ LBD30UUAJ LB30NTYDD N30VUUADJ L30AADJUU TB30ADJUU

In stock

Price Break
3+ €16,77
5+ €15,82
10+ €15,64
15+ €15,45
20+ €15,26
30+ €15,07
40+ €14,13
50+ €13,94
60+ €13,75
75+ €13,56
100+ €13,19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMAJ_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Outside Diameter:
45mm
Length:
64mm
Technical
Inside Diameter dr 30mm Tol + 0 to - 7µm
Outside Diameter D 45mm Tol + 0 to - 14µm
Length L 64mm Tol + 0 to - 300µm
W 1.85mm
D1 43mm
h 2.5mm
Eccentricity 10µm
Dynamic load C 140 kgf
Static load C<sub>o</sub> 255 kgf
Weight 250 g
B 44.5mm Tol + 0 to - 300&micro;m
Number of ball rows 6
