SKU: LM.38.UU.AJ.EU

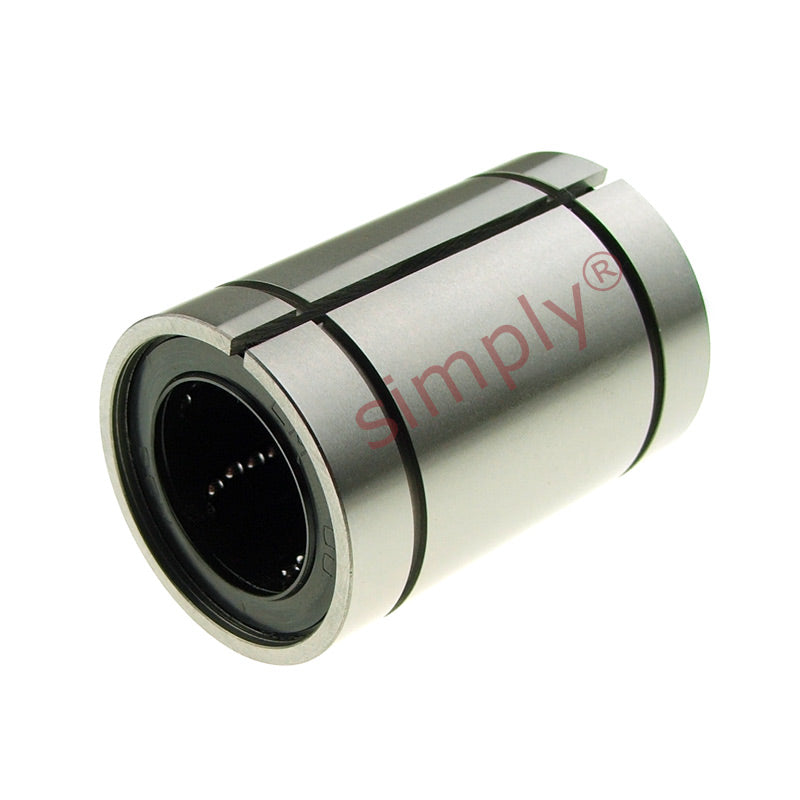

LM38UUAJ Adjustable Linear Ball Bushing with Rubber Seals 38x57x76mm
Out of stock
Share this product
Description
LM-AJ Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38mm
- Outside Diameter:
- 57mm
- Length:
- 76mm
Technical
| Inside Diameter dr | 38mm Tol + 0 to - 8µm |
|---|---|
| Outside Diameter D | 57mm Tol + 0 to - 17µm |
| Length L | 76mm Tol + 0 to - 300µm |
| W | 2.1mm |
| D1 | 54.5mm |
| h | 3mm |
| Eccentricity | 12µm |
| Dynamic load C | 205 kgf |
| Static load C<sub>o</sub> | 365 kgf |
| Weight | 495 g |
| B | 58.5mm Tol + 0 to - 300µm |
| Number of ball rows | 6 |
