SKU: LM.8.UU.EU

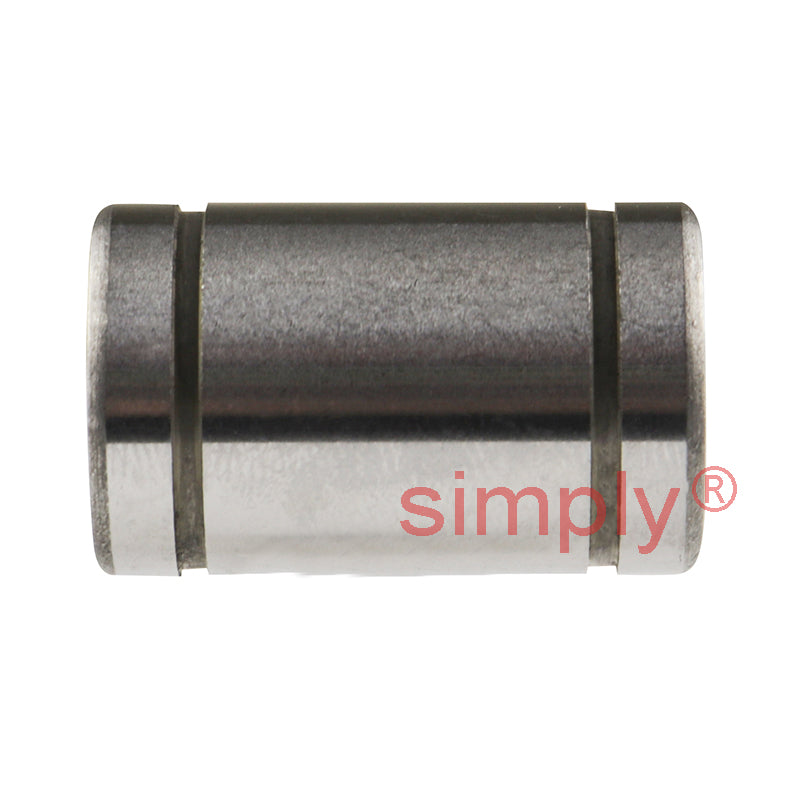

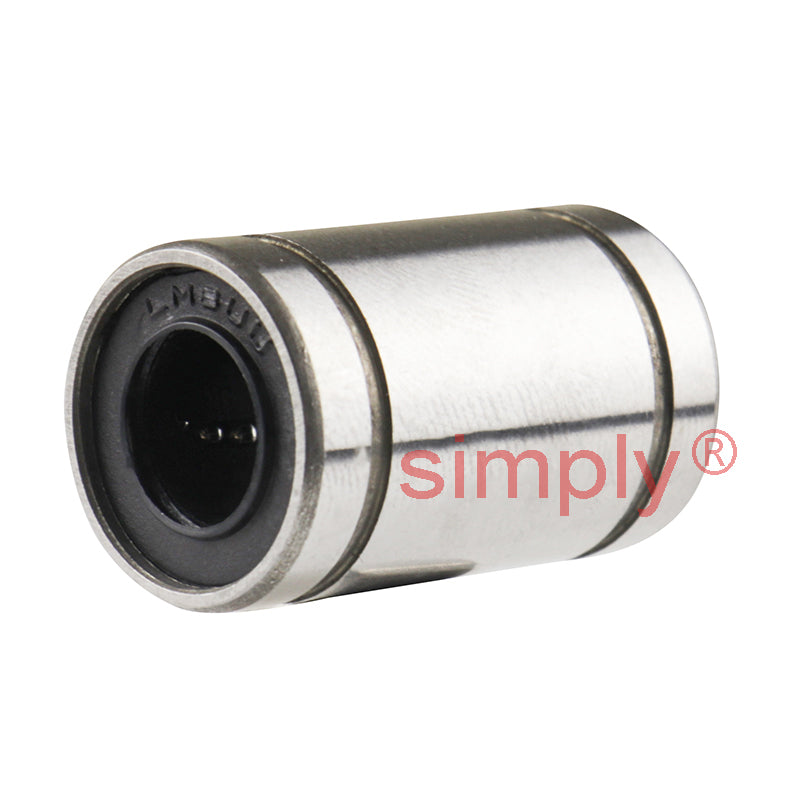

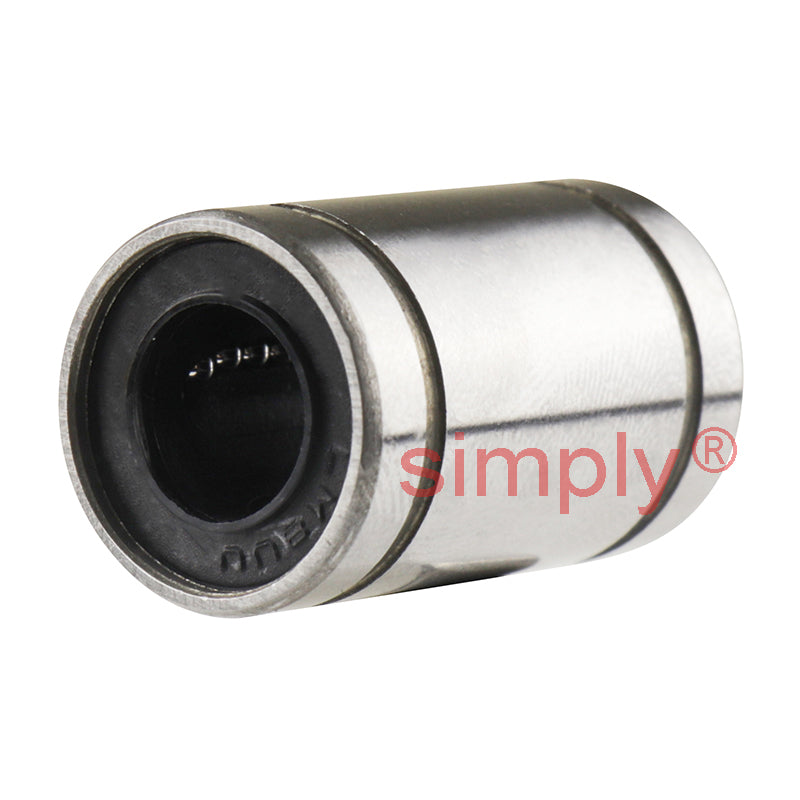

LM8UU Closed Linear Ball Bushing with Rubber Seals 8x15x24mm
Equivalent to: SM8GUU LBD8UU LB8NYDD N8VUU L8BUU TB8UU KLM8LL SDM8YUU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
LM Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 15mm
- Length:
- 24mm
Technical
| Inside Diameter dr | 8mm Tol + 0 to - 6µm |
|---|---|
| Outside Diameter D | 15mm Tol + 0 to - 10µm |
| Length L | 24mm Tol + 0 to - 200µm |
| W | 1.1mm |
| D1 | 14.3mm |
| Eccentricity | 8µm |
| Dynamic load C | 12 kgf |
| Static load C<sub>o</sub> | 23 kgf |
| Weight | 16 g |
| B | 17.5mm Tol + 0 to - 200µm |
| Number of ball rows | 4 |
| Tolerances dr & D | Apply to closed type only |
