• LME12UUAJ Adjustable Linear Ball Bushing with Rubber Seals 12x22x32mm
  • LME12UUAJ Adjustable Linear Ball Bushing with Rubber Seals 12x22x32mm
  • LME12UUAJ Adjustable Linear Ball Bushing with Rubber Seals 12x22x32mm
1 3

SKU: LM.E.12.UU.AJ.EU

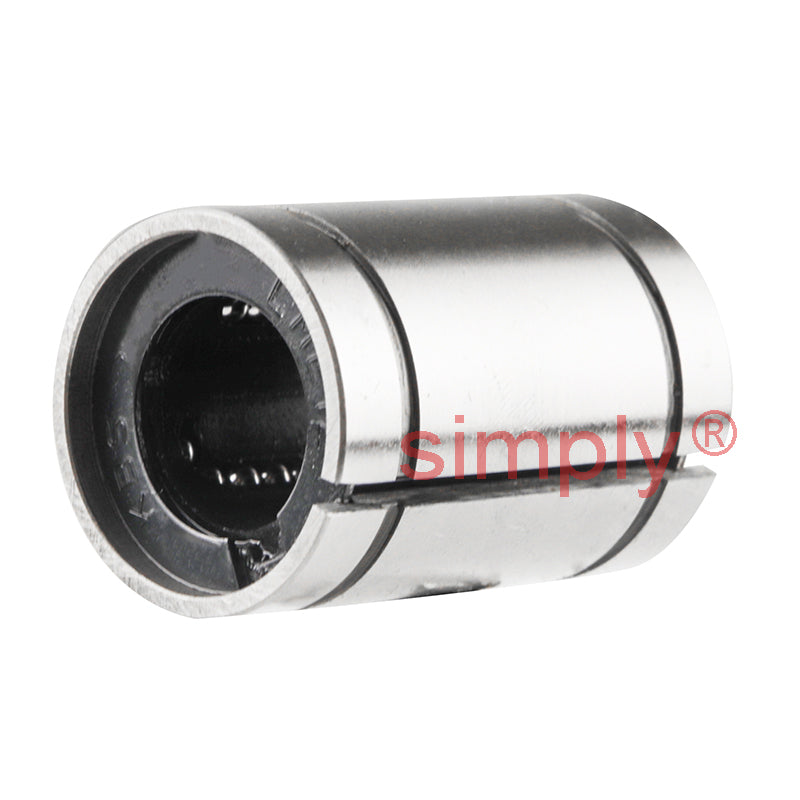

LME12UUAJ Adjustable Linear Ball Bushing with Rubber Seals 12x22x32mm

LME12UUAJ Adjustable Linear Ball Bushing with Rubber Seals 12x22x32mm
€12,75 ex VAT
€12,75 ex VAT
Sale Sold out

Equivalent to: KB12GUUAJ MAM12ADJWW LBE12UUAJ

In stock

Price Break
3+ €9,69
5+ €9,15
10+ €9,04
15+ €8,93
20+ €8,82
30+ €8,71
40+ €8,17
50+ €8,06
60+ €7,95
75+ €7,84
100+ €7,62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LME_AJ_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Outside Diameter:
22mm
Length:
32mm
Technical
Inside Diameter dr 12mm Tol +8 to - 0µm
Outside Diameter D 22mm Tol + 0 to - 9µm
Length L 32mm Tol + 0 to - 200µm
W 1.3mm
D1 21mm
B 22.9mm
h 1.5mm
Eccentricity 12µm
Dynamic load C 60 kgf
Static load C<sub>o</sub> 51 kgf
Weight 41 g
Number of ball rows 4
Tolerances dr & D Apply to closed type only
