SKU: LM.E.16.UU.AJ.EU

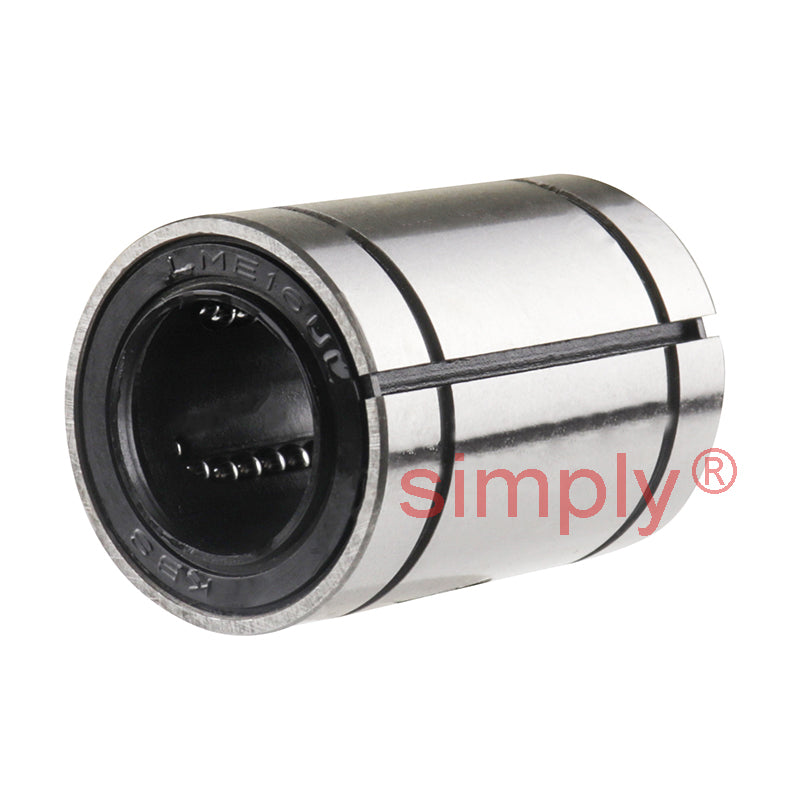

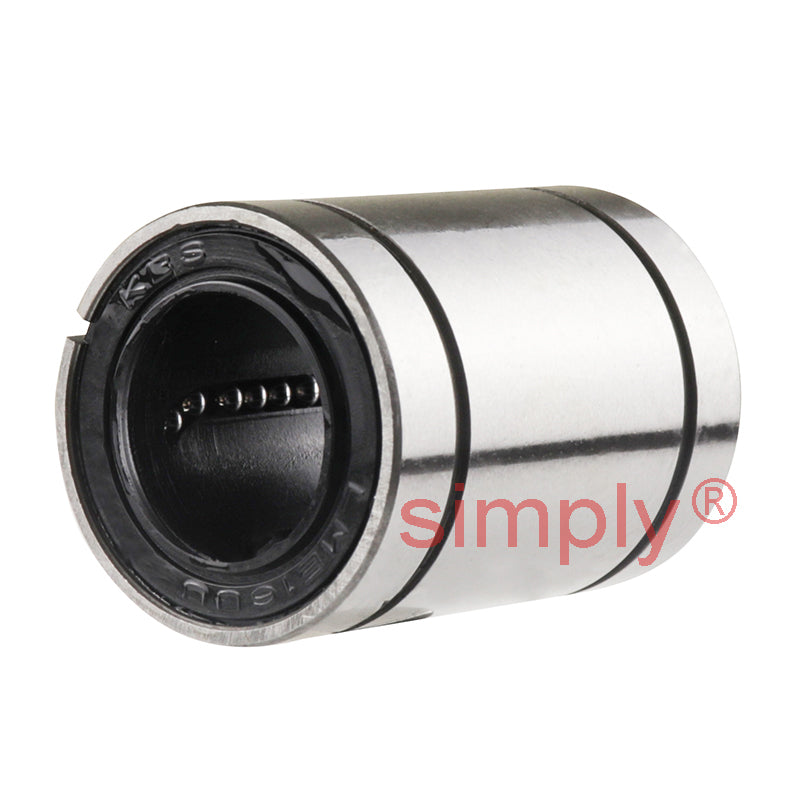

LME16UUAJ Adjustable Linear Ball Bushing with Rubber Seals 16x26x36mm

LME16UUAJ Adjustable Linear Ball Bushing with Rubber Seals 16x26x36mm
€14,62 ex VAT
€14,62 ex VAT
Sale Sold out

Equivalent to: KB16GUUAJ KBS1636PP MAM16ADJWW LBE16UUAJ

In stock

Price Break
3+ €11,10
5+ €10,48
10+ €10,36
15+ €10,23
20+ €10,11
30+ €9,98
40+ €9,36
50+ €9,23
60+ €9,11
75+ €8,98
100+ €8,73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LME_AJ_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
16mm
Outside Diameter:
26mm
Length:
36mm
Technical
Inside Diameter dr 16mm Tol +9 to - 0µm
Outside Diameter D 26mm Tol + 0 to - 9µm
Length L 36mm Tol + 0 to - 200µm
W 1.3mm
D1 24.9mm
B 24.9mm
h 1.5mm
Eccentricity 12µm
Dynamic load C 49 kgf
Static load C<sub>o</sub> 78 kgf
Weight 57 g
Number of ball rows 4
Tolerances dr & D Apply to closed type only
