SKU: LM.E.20.UU.AJ.EU

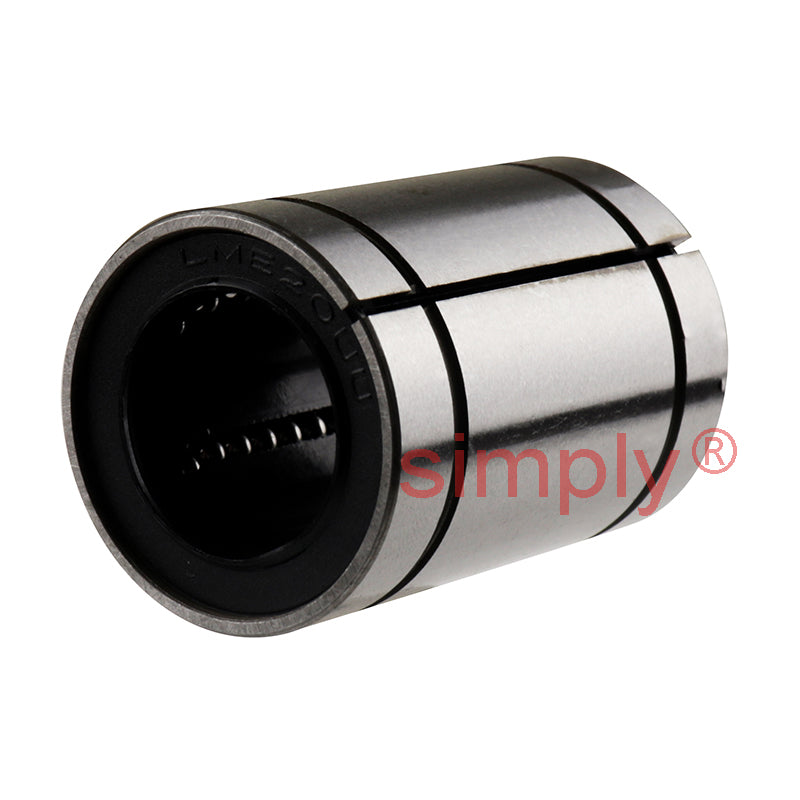

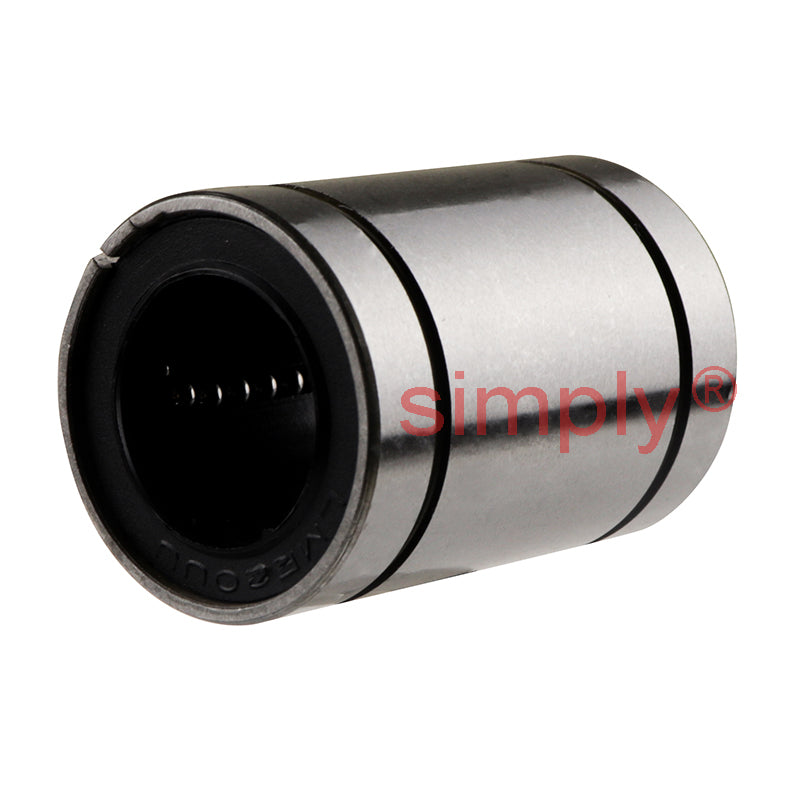

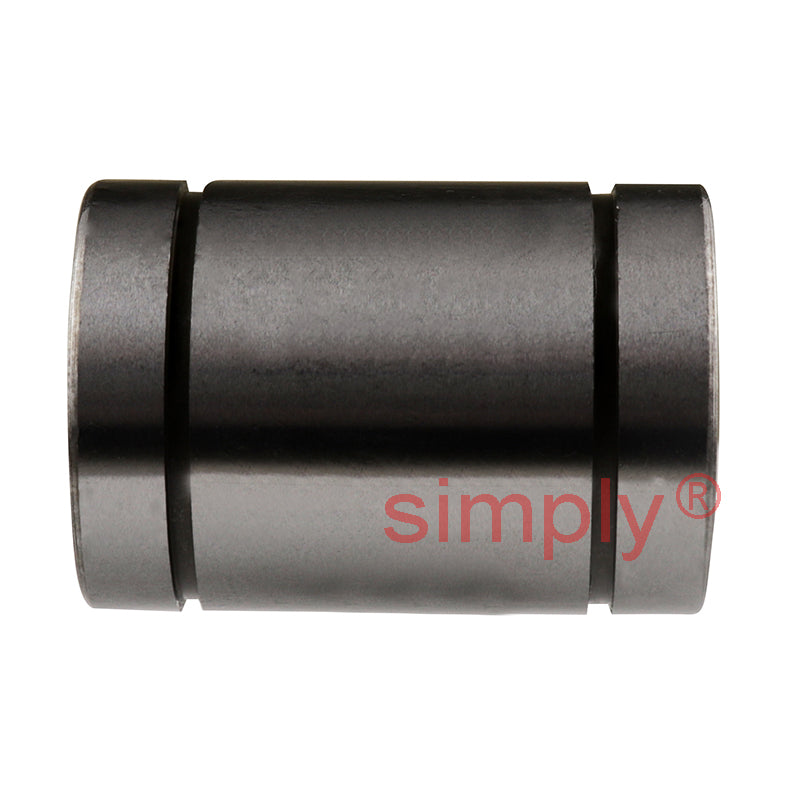

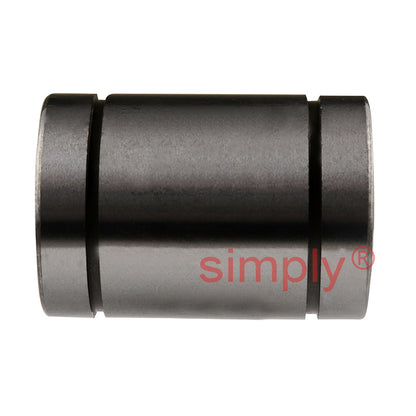

LME20UUAJ Adjustable Linear Ball Bushing with Rubber Seals 20x32x45mm

LME20UUAJ Adjustable Linear Ball Bushing with Rubber Seals 20x32x45mm
€17,72 ex VAT
€17,72 ex VAT
Sale Sold out

Equivalent to: KB20GUUAJ KBS2045PP MAM20ADJWW LBE20UUAJ

In stock

Price Break
3+ €13,47
5+ €12,71
10+ €12,56
15+ €12,41
20+ €12,26
30+ €12,11
40+ €11,35
50+ €11,20
60+ €11,05
75+ €10,90
100+ €10,59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LME_AJ_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Outside Diameter:
32mm
Length:
45mm
Technical
Inside Diameter dr 20mm Tol +9 to - 0µm
Outside Diameter D 32mm Tol + 0 to - 11µm
Length L 45mm Tol + 0 to - 200µm
W 1.6mm
D1 30.3mm
B 31.5mm
h 2mm
Eccentricity 15µm
Dynamic load C 66 kgf
Static load C<sub>o</sub> 225 kgf
Weight 91 g
Number of ball rows 5
Tolerances dr & D Apply to closed type only
