• LME25UUAJ Adjustable Linear Ball Bushing with Rubber Seals 25x40x58mm
  • LME25UUAJ Adjustable Linear Ball Bushing with Rubber Seals 25x40x58mm
  • LME25UUAJ Adjustable Linear Ball Bushing with Rubber Seals 25x40x58mm
1 3

SKU: LM.E.25.UU.AJ.EU

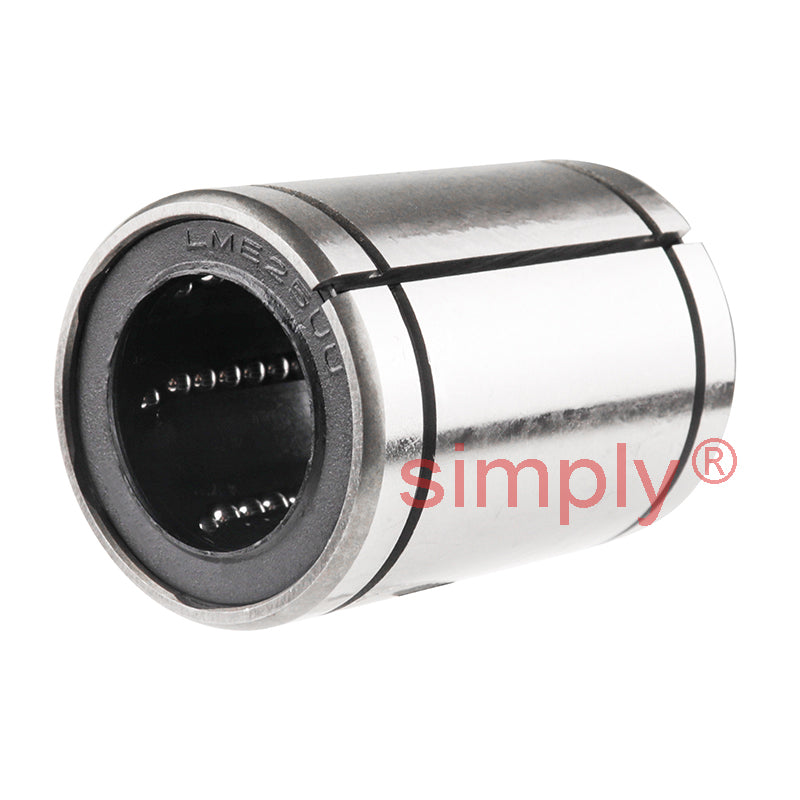

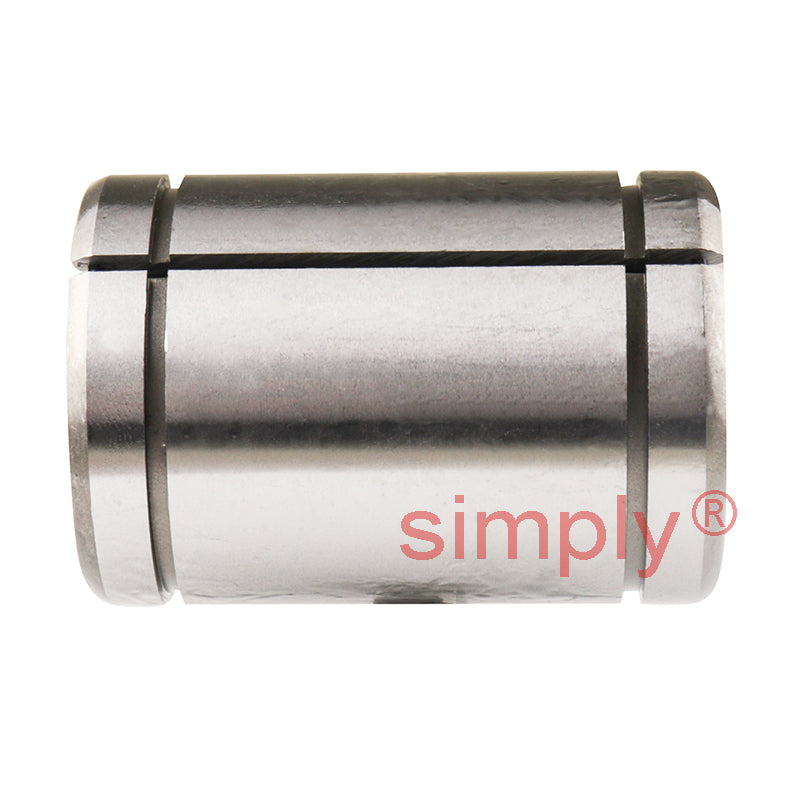

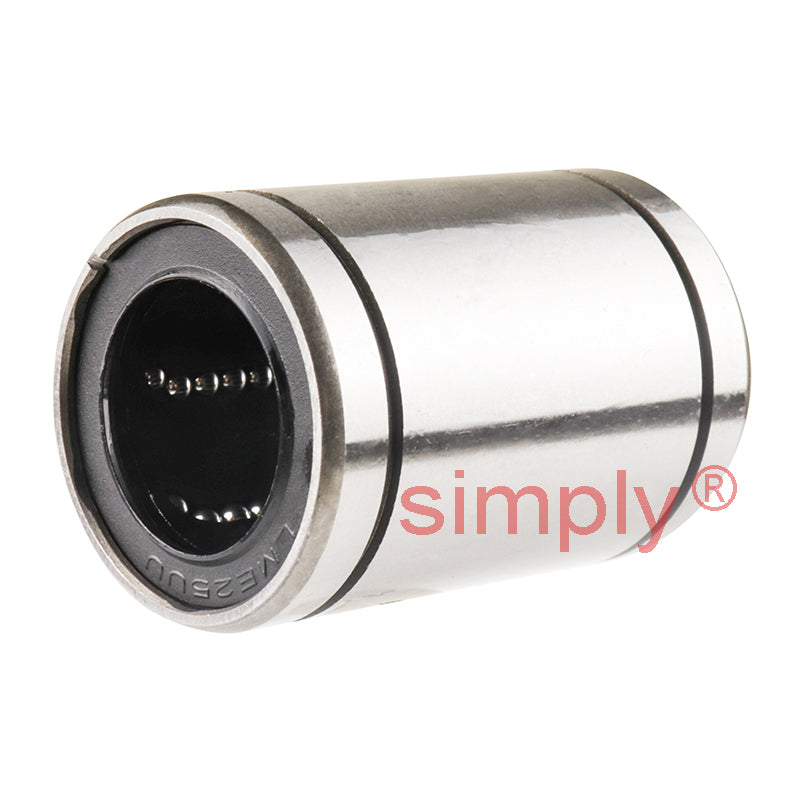

LME25UUAJ Adjustable Linear Ball Bushing with Rubber Seals 25x40x58mm

LME25UUAJ Adjustable Linear Ball Bushing with Rubber Seals 25x40x58mm
€19,36 ex VAT
€19,36 ex VAT
Sale Sold out

Equivalent to: KB25GUUAJ KBS2558PP MAM25ADJWW LBE25UUAJ

In stock

Price Break
3+ €14,71
5+ €13,88
10+ €13,72
15+ €13,55
20+ €13,39
30+ €13,22
40+ €12,39
50+ €12,23
60+ €12,06
75+ €11,90
100+ €11,57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LME_AJ_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
40mm
Length:
58mm
Technical
Inside Diameter dr 25mm Tol +11 to - 1µm
Outside Diameter D 40mm Tol + 0 to - 11µm
Length L 58mm Tol + 0 to - 300µm
W 1.85mm
D1 37.5mm
B 44.1mm
h 2mm
Eccentricity 15µm
Dynamic load C 105 kgf
Static load C<sub>o</sub> 185 kgf
Weight 215 g
Number of ball rows 6
Tolerances dr & D Apply to closed type only
