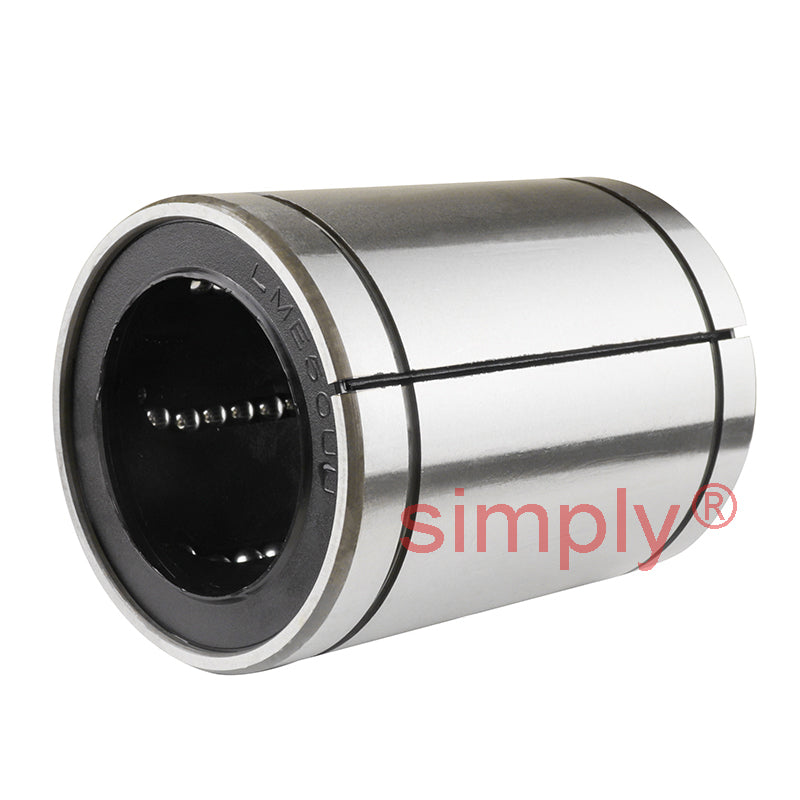

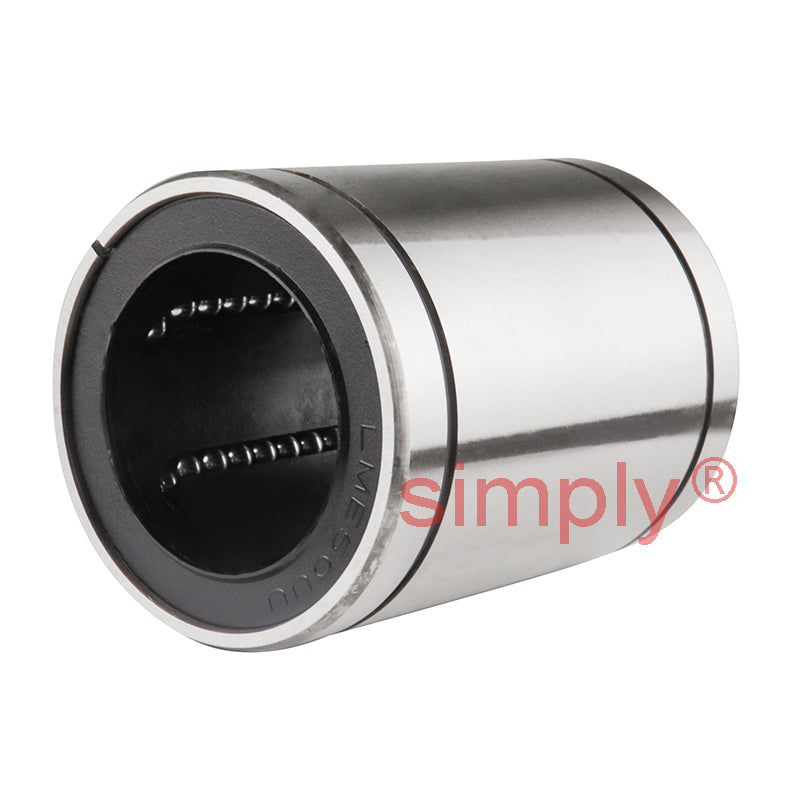

• LME50UUAJ Adjustable Linear Ball Bushing with Rubber Seals 50x75x100mm
  • LME50UUAJ Adjustable Linear Ball Bushing with Rubber Seals 50x75x100mm
1 2

SKU: LM.E.50.UU.AJ.EU

LME50UUAJ Adjustable Linear Ball Bushing with Rubber Seals 50x75x100mm

LME50UUAJ Adjustable Linear Ball Bushing with Rubber Seals 50x75x100mm
€41,02 ex VAT
€41,02 ex VAT
Sale Sold out

Equivalent to: KB50GUUAJ KBS50100PP LBE50UUAJ

In stock

Price Break
3+ €31,18
5+ €29,43
10+ €29,08
15+ €28,73
20+ €28,38
30+ €28,03
40+ €26,27
50+ €25,92
60+ €25,57
75+ €25,22
100+ €24,52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LME_AJ_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
75mm
Length:
100mm
Technical
Inside Diameter dr 50mm Tol +13 to - 3µm
Outside Diameter D 75mm Tol + 0 to - 13µm
Length L 100mm Tol + 0 to - 300µm
W 2.65mm
D1 72mm
B 77.6mm
h 2mm
Eccentricity 17µm
Dynamic load C 380 kgf
Static load C<sub>o</sub> 650 kgf
Weight 1130 g
Number of ball rows 6
Tolerances dr & D Apply to closed type only
