SKU: LM.E.50.UU.EU

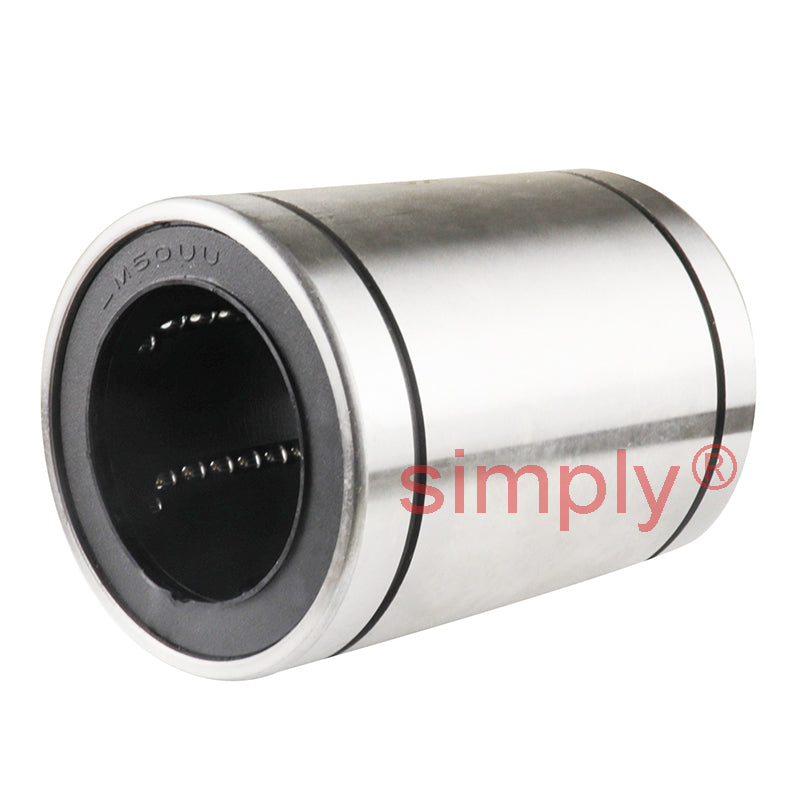

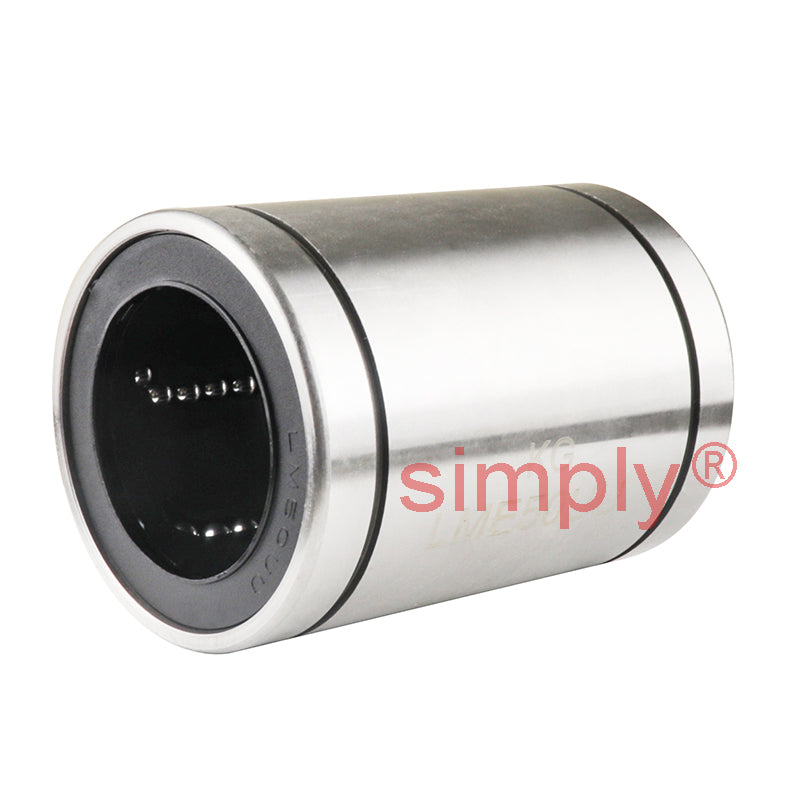

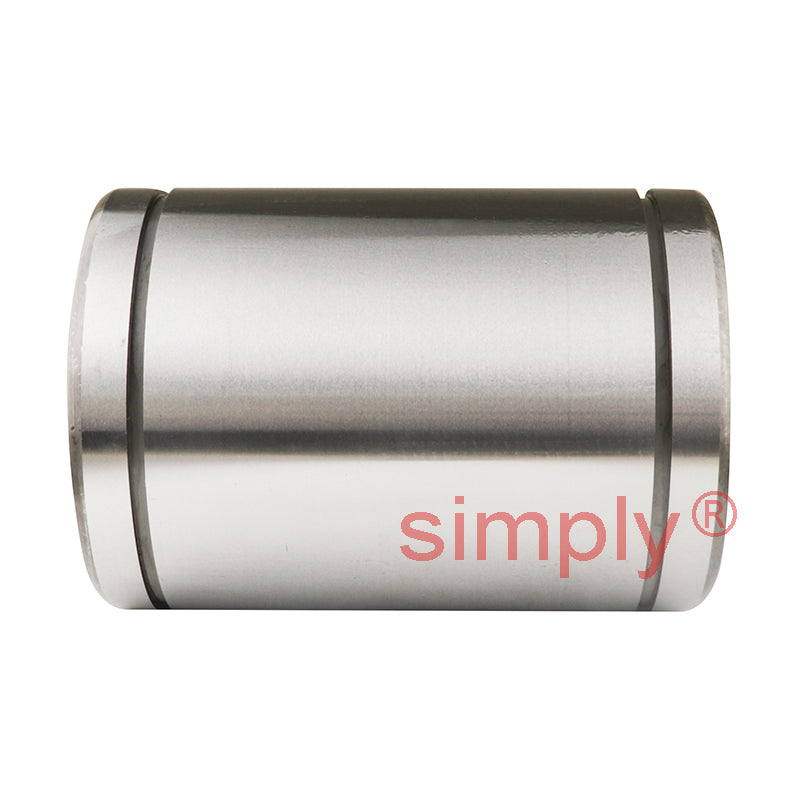

LME50UU Closed Linear Ball Bushing with Rubber Seals 50x75x100mm

LME50UU Closed Linear Ball Bushing with Rubber Seals 50x75x100mm
€48,12 ex VAT
€48,12 ex VAT
Sale Sold out

Equivalent to: KB50GUU KB50100PP LBE50UU

In stock

Price Break
3+ €36,57
5+ €34,51
10+ €34,10
15+ €33,69
20+ €33,28
30+ €32,87
40+ €30,82
50+ €30,41
60+ €29,99
75+ €29,58
100+ €28,76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LME_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
75mm
Length:
100mm
Technical
Inside Diameter dr 50mm Tol +13 to - 3µm
Outside Diameter D 75mm Tol + 0 to - 300µm
Length L 100mm Tol + 0 to - 300µm
W 2.65mm
D1 72mm
B 77.6mm
Eccentricity 17µm
Dynamic load C 380 kgf
Static load C<sub>o</sub> 650 kgf
Weight 1130 g
Number of ball rows 6
Tolerances dr & D Apply to closed type only
