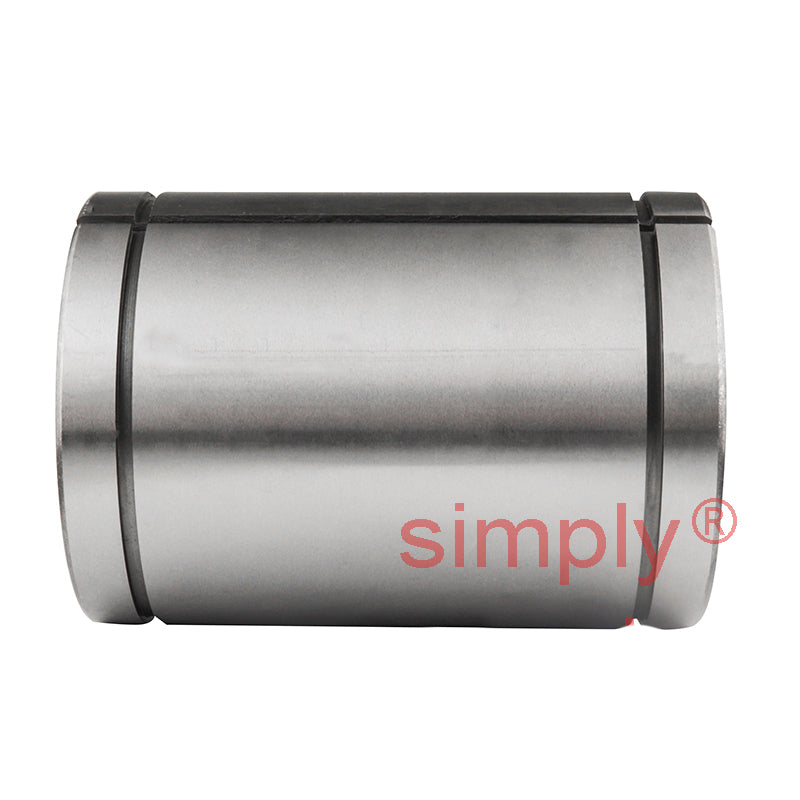

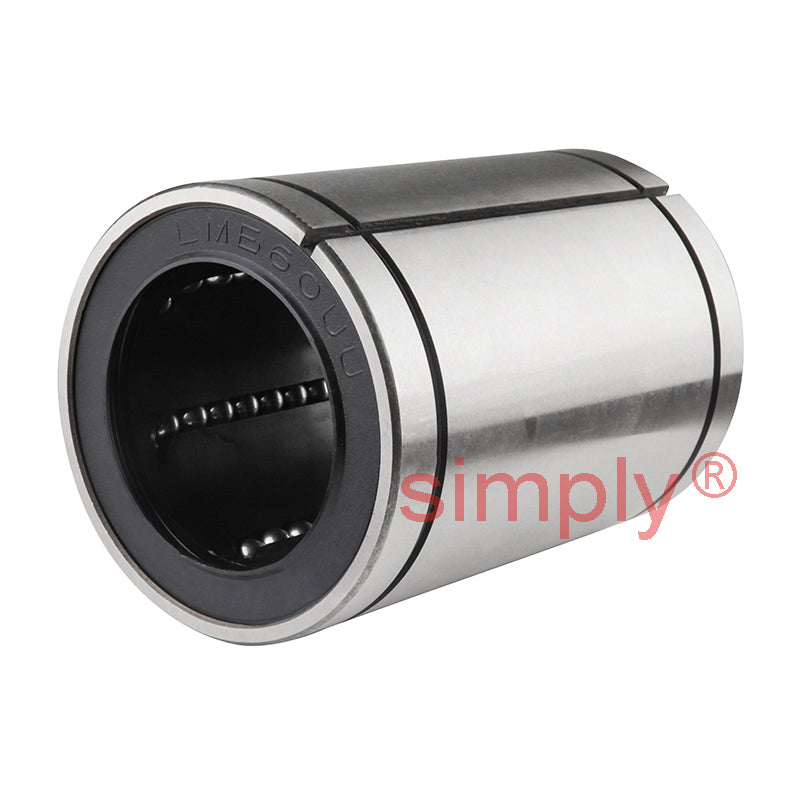

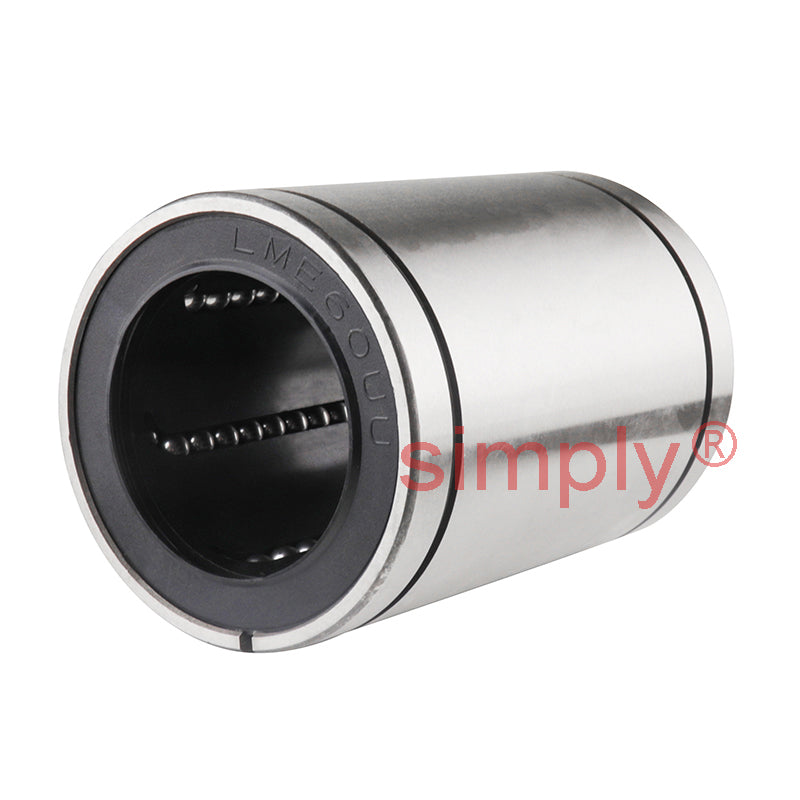

• LME60UUAJ Adjustable Linear Ball Bushing with Rubber Seals 60x90x125mm
  • LME60UUAJ Adjustable Linear Ball Bushing with Rubber Seals 60x90x125mm
  • LME60UUAJ Adjustable Linear Ball Bushing with Rubber Seals 60x90x125mm
1 3

SKU: LM.E.60.UU.AJ.EU

LME60UUAJ Adjustable Linear Ball Bushing with Rubber Seals 60x90x125mm

LME60UUAJ Adjustable Linear Ball Bushing with Rubber Seals 60x90x125mm
€66,92 ex VAT
€66,92 ex VAT
Sale Sold out

Equivalent to: KB60GUUAJ LME6090125NUUAJ

In stock

Price Break
3+ €50,85
5+ €48,00
10+ €47,42
15+ €46,85
20+ €46,28
30+ €45,71
40+ €42,85
50+ €42,28
60+ €41,71
75+ €41,14
100+ €40,00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LME_AJ_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
60mm
Outside Diameter:
90mm
Length:
125mm
Technical
Inside Diameter dr 60mm Tol +13 to - 4µm
Outside Diameter D 90mm Tol + 0 to - 13µm
Length L 125mm Tol + 0 to - 400µm
W 3.15mm
D1 86.5mm
B 101.7mm
h 3mm
Eccentricity 20µm
Dynamic load C 635 kgf
Static load C<sub>o</sub> 1200 kgf
Weight 2220 g
Number of ball rows 6
Tolerances dr & D Apply to closed type only
