SKU: LMB.12.UU.AJ.EU

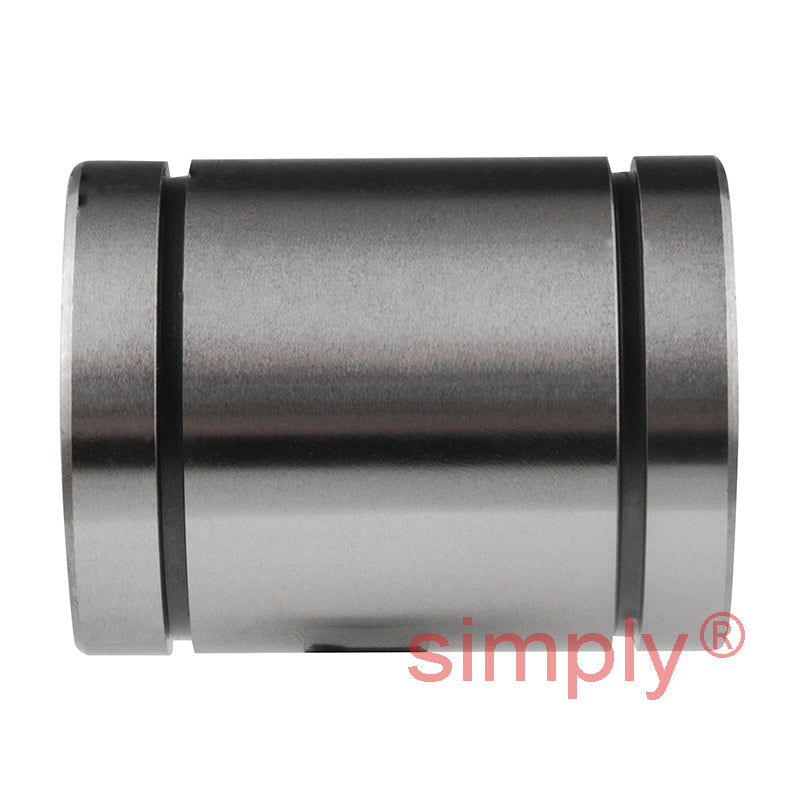

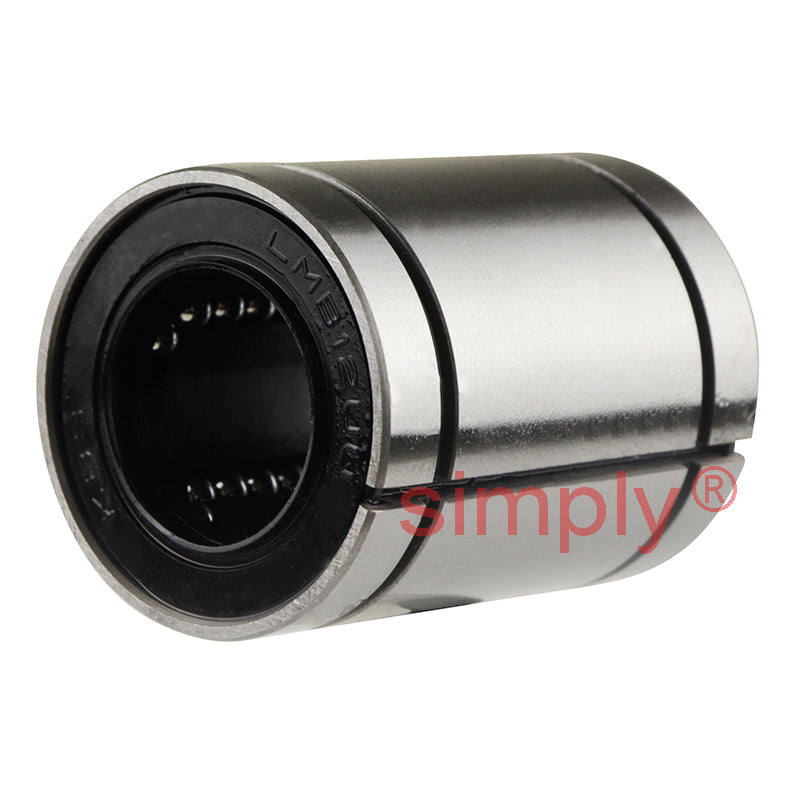

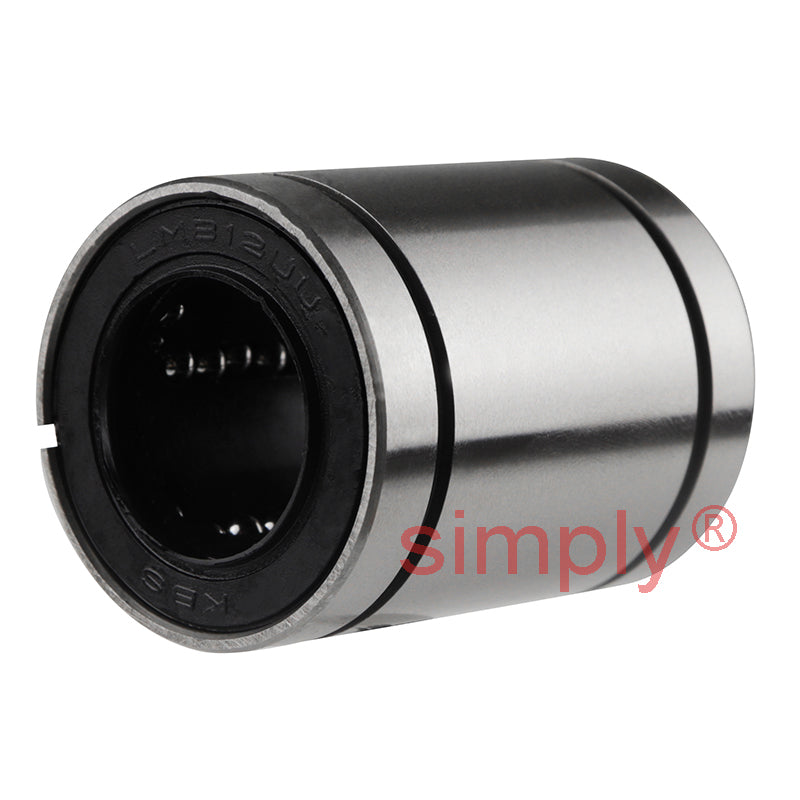

LMB12UUAJ Imperial Adjustable Linear Ball Bushing with Rubber Seals 0.75x1.25x1.625 inch
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
LMB-AJ Imperial Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Length:
- 41.28mm = 1.625 (1-5/8) inch
Technical
| Inside Diameter dr | 0.75 inch Tol - 0 to + 7µm |
|---|---|
| Outside Diameter D | 1.25 inch Tol - 0 to + 16µm |
| Length L | 1.625 inch Tol - 0 to + 200µm |
| W | 0.0559 inch |
| D1 | 1.176 inch |
| B | 1.1657 inch |
| h | 0.006 inch |
| Eccentricity | 10 to 15µm |
| Dynamic load C | 88 kgf |
| Static load C<sub>o</sub> | 140 kgf |
| Weight | 104 g |
| Number of ball rows | 4 |
| Tolerances dr & D | Apply to closed type only |
