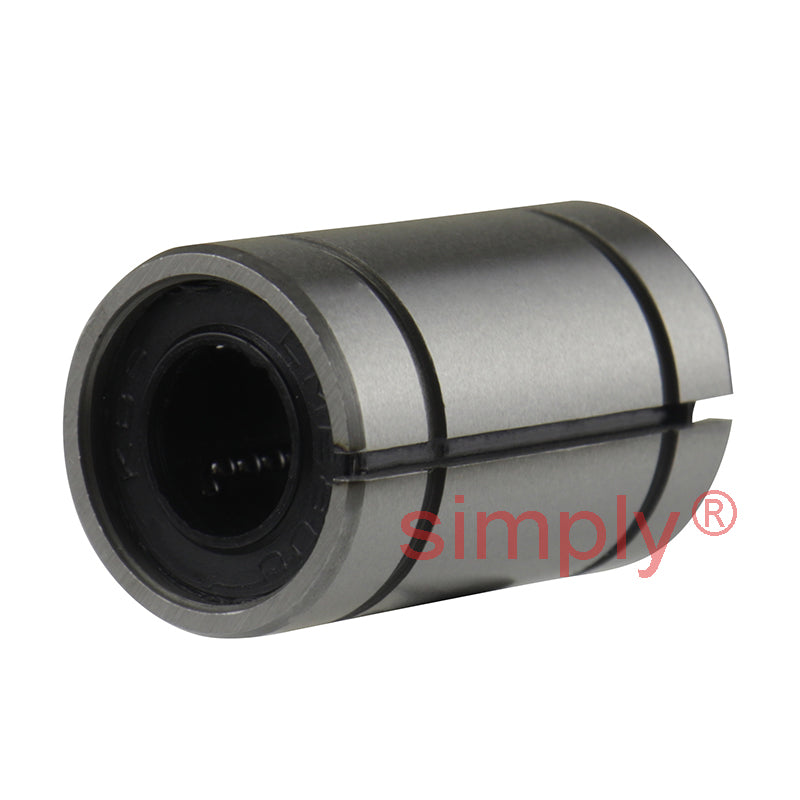

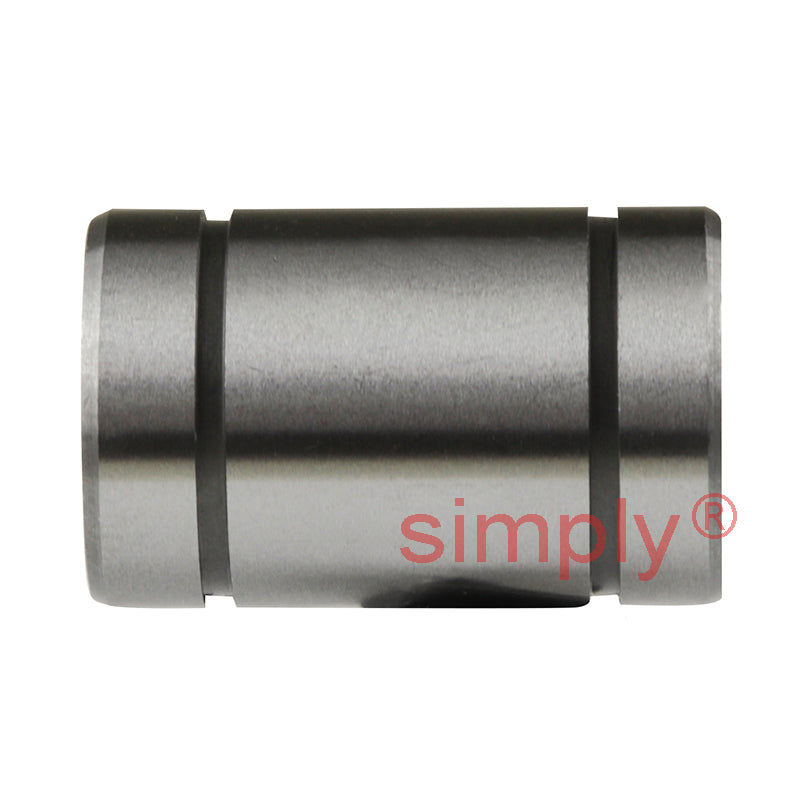

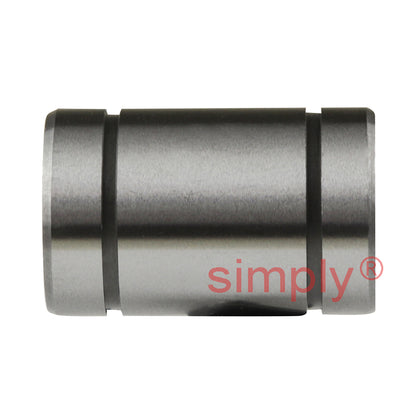

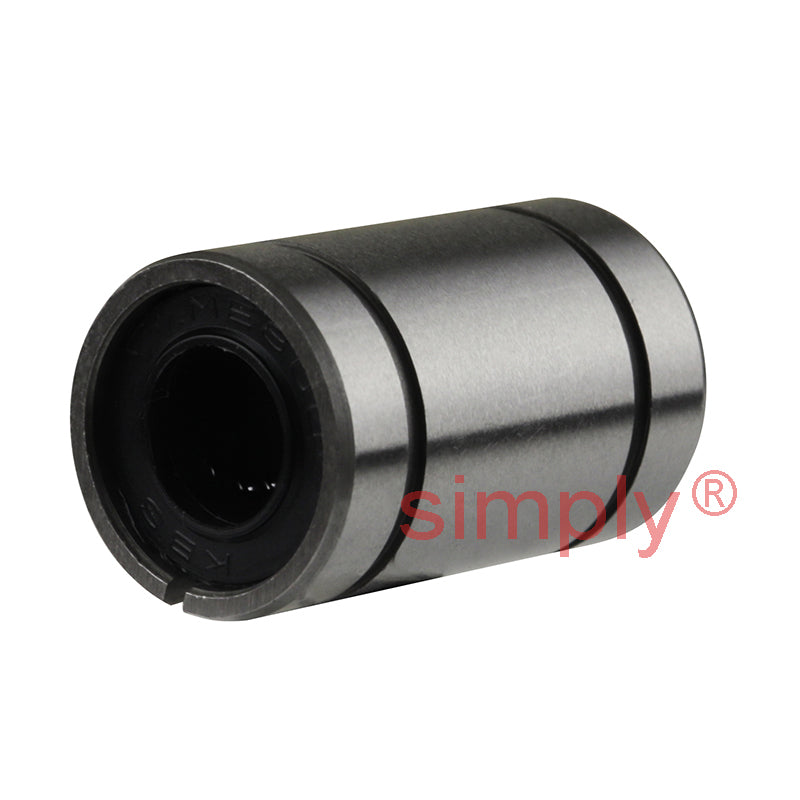

• LME8UUAJ Adjustable Linear Ball Bushing with Rubber Seals 8x16x25mm
  • LME8UUAJ Adjustable Linear Ball Bushing with Rubber Seals 8x16x25mm
  • LME8UUAJ Adjustable Linear Ball Bushing with Rubber Seals 8x16x25mm
1 3

SKU: LME-8UUAJ-EU

LME8UUAJ Adjustable Linear Ball Bushing with Rubber Seals 8x16x25mm

LME8UUAJ Adjustable Linear Ball Bushing with Rubber Seals 8x16x25mm
€10,02 ex VAT
€10,02 ex VAT
Sale Sold out

In stock

Price Break
3+ €7,62
5+ €7,19
10+ €7,10
15+ €7,02
20+ €6,93
30+ €6,85
40+ €6,42
50+ €6,33
60+ €6,25
75+ €6,16
100+ €5,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LME_AJ_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
8mm
Outside Diameter:
16mm
Length:
25mm
Technical
Inside Diameter dr 8mm Tol +8 to - 0µm
Outside Diameter D 16mm Tol + 0 to - 8µm
Length L 25mm Tol + 0 to - 200µm
W 1.1mm
D1 15.2mm
B 16.5mm
h -mm
Eccentricity 12µm
Dynamic load C 14 kgf
Static load C<sub>o</sub> 26 kgf
Weight 20 g
Number of ball rows 4
Tolerances dr & D Apply to closed type only
