• LMEF12LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x60mm
  • LMEF12LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x60mm
  • LMEF12LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x60mm
1 3

SKU: LMEF-12-L-UU-EU

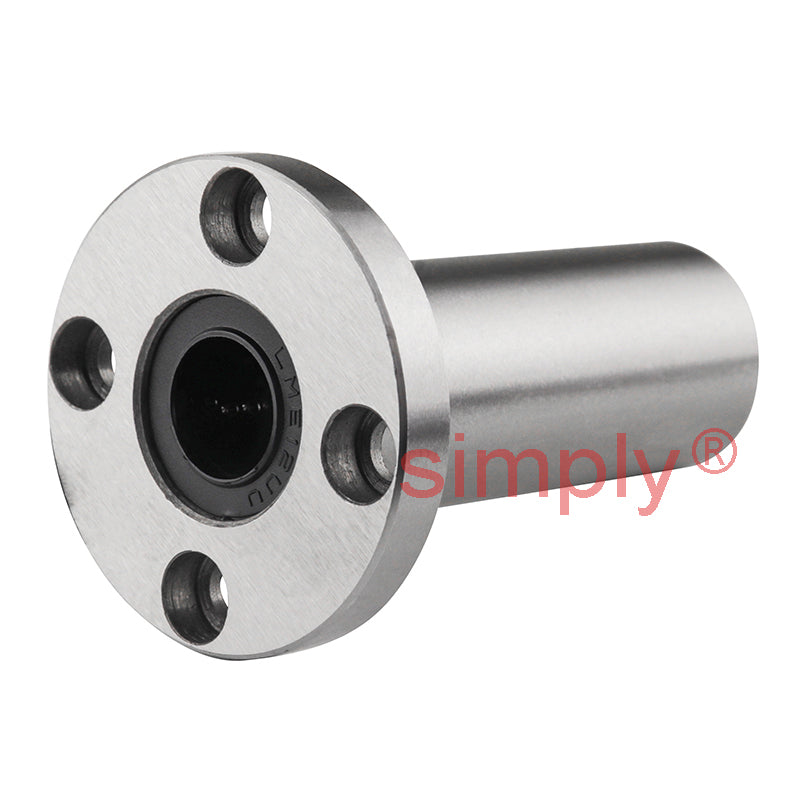

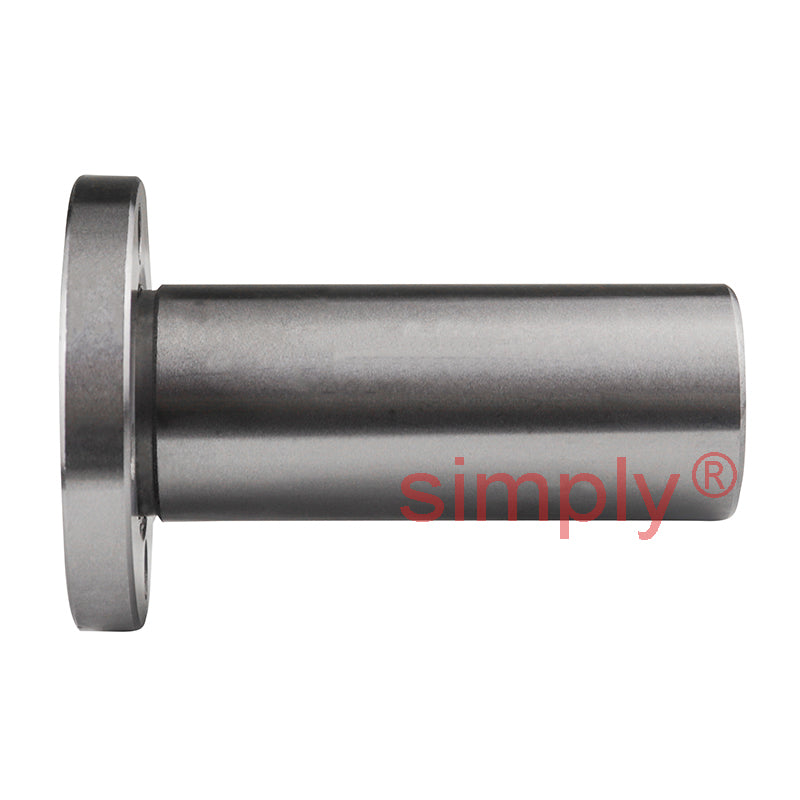

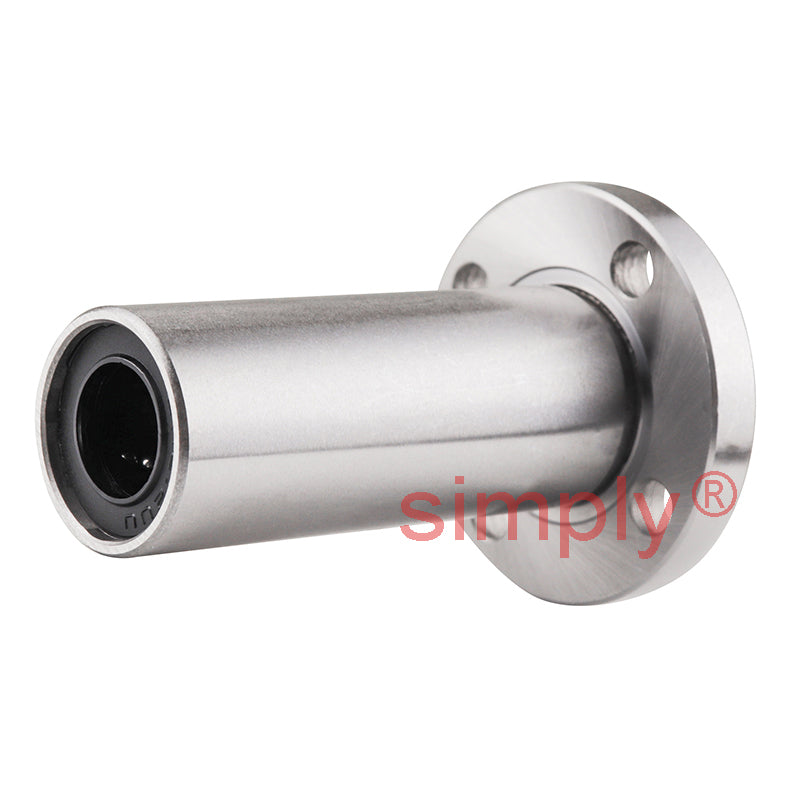

LMEF12LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x60mm

LMEF12LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x60mm
€38,13 ex VAT
€38,13 ex VAT
Sale Sold out

In stock

Price Break
3+ €28,98
5+ €27,35
9+ €27,02
19+ €26,70
49+ €26,37
74+ €26,05
99+ €24,42
199+ €24,09
249+ €23,77
499+ €23,44
999+ €22,79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMEF_LNG_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Outside Diameter:
22mm
Length:
60mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 12mm
Bore Clearance +0.009/-0.001mm
D 22mm
D Clearance 0/-0.011mm
L 60mm
L Clearance 0/-0.3mm
B 42mm
B Clearance 0/-0.2mm
H 6mm
PCD 32mm
d<sub>1</sub> 4.5mm
d<sub>2</sub> 8mm
h 4.4mm
Squareness um 15
Basic Load Rating - Dynamic C 650 N
Basic Load Rating - Static Co 1200 N
No of Ball Rows 4
