• LMEF30UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x68mm
  • LMEF30UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x68mm
  • LMEF30UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x68mm
1 3

SKU: LMEF-30-UU-EU

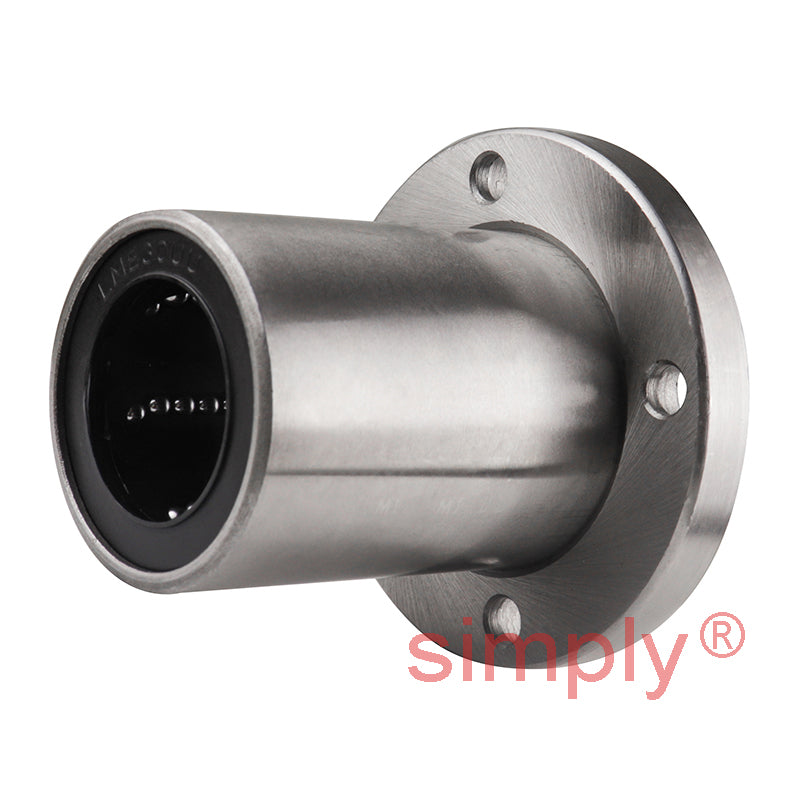

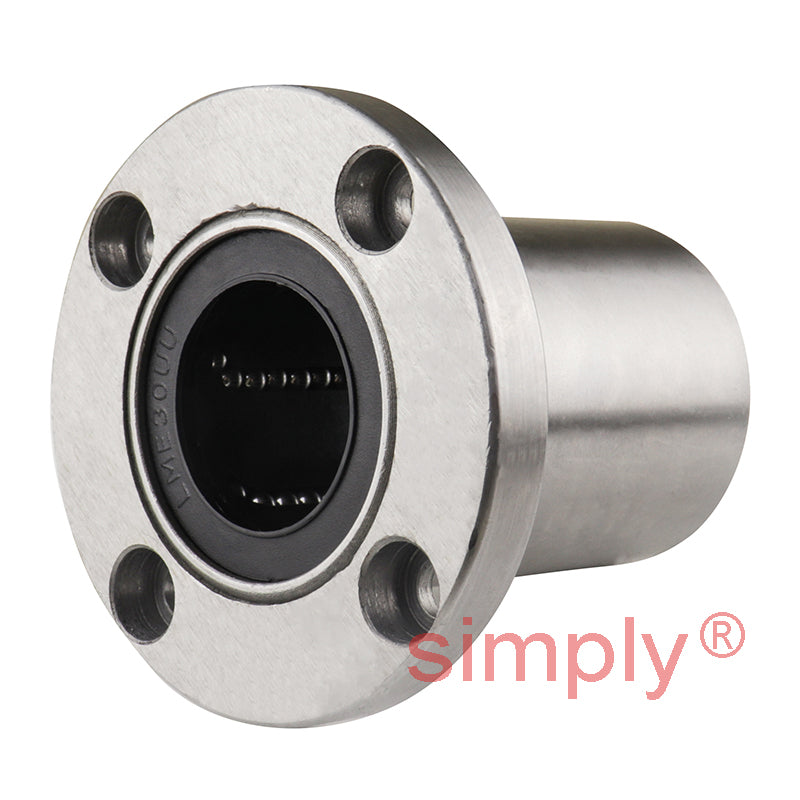

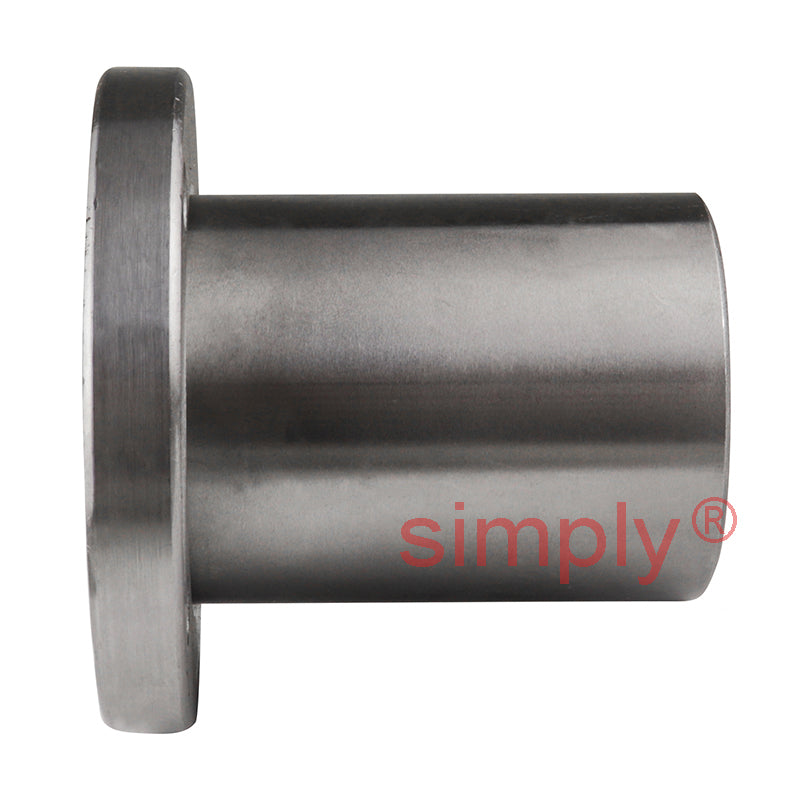

LMEF30UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x68mm

LMEF30UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x68mm
€58,70 ex VAT
€58,70 ex VAT
Sale Sold out

In stock

Price Break
3+ €44,61
5+ €42,10
9+ €41,60
19+ €41,10
49+ €40,60
74+ €40,10
99+ €37,59
199+ €37,09
249+ €36,59
499+ €36,09
999+ €35,09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMEF_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Outside Diameter:
47mm
Length:
68mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 30mm
Bore Clearance +0.011/-0.001mm
D 47mm
D Clearance 0/-0.011mm
L 68mm
L Clearance 0/-0.3mm
B 76mm
B Clearance 0/-0.2mm
H 10mm
PCD 62mm
d<sub>1</sub> 6.6mm
d<sub>2</sub> 11mm
h 6.5mm
Squareness um 15mm
Basic Load Rating - Dynamic C 1560 N
Basic Load Rating - Static Co 2740 N
No of Ball Rows 6
Weight 0.545 kg
