SKU: LMEK-50-L-UU-EU

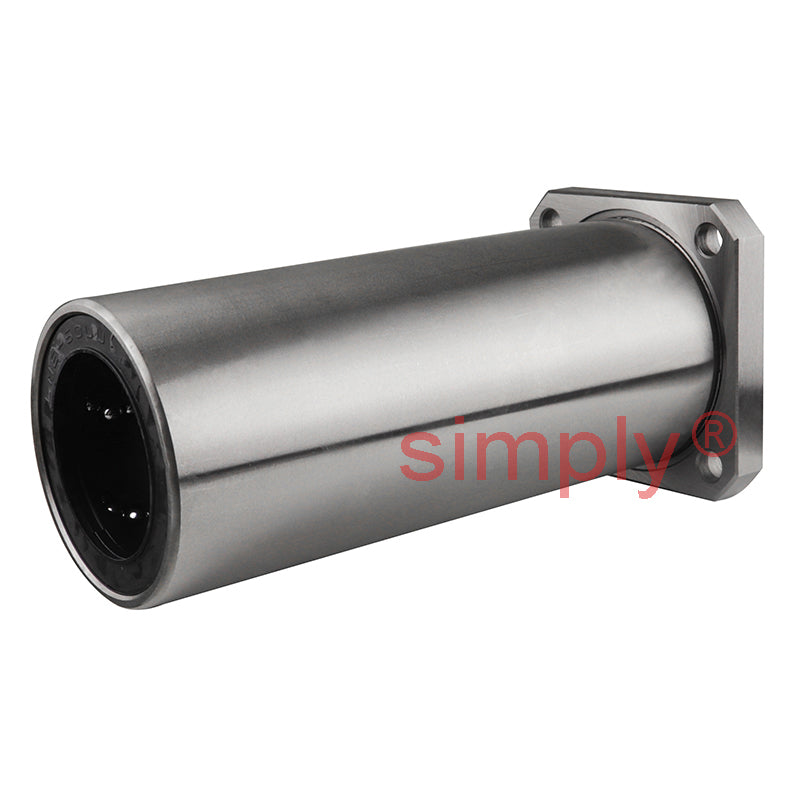

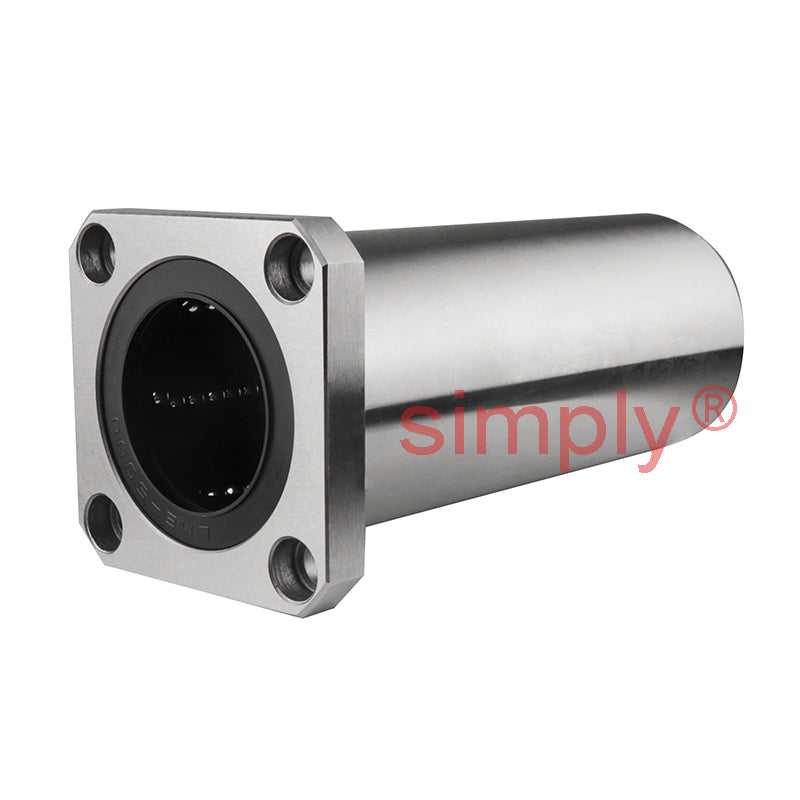

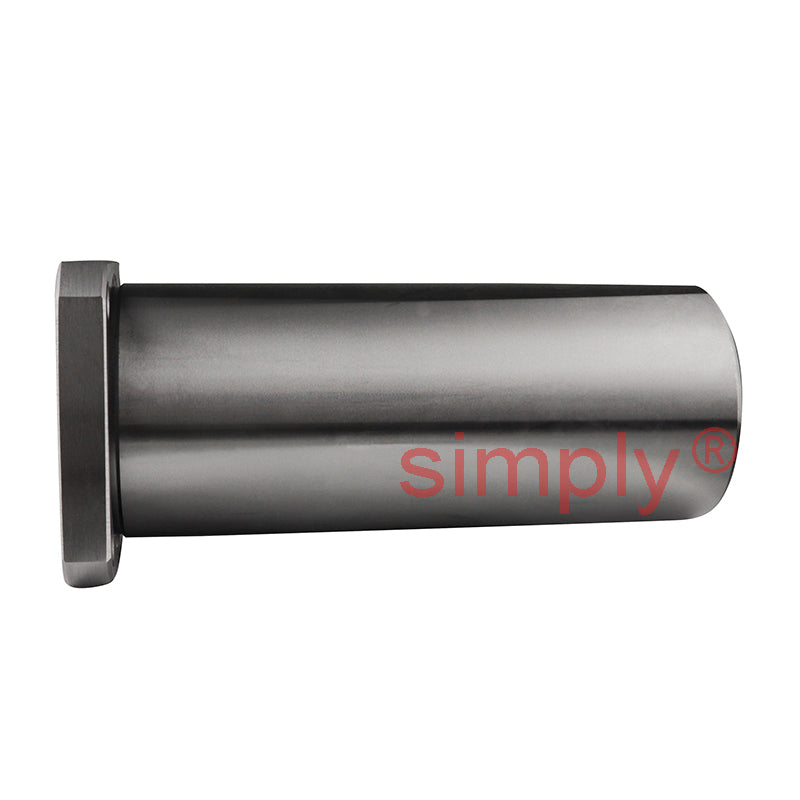

LMEK50LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 50x75x192mm

LMEK50LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 50x75x192mm
€256,44 ex VAT
€256,44 ex VAT
Sale Sold out

In stock

Price Break
3+ €194,88
5+ €183,93
9+ €181,74
19+ €179,55
49+ €177,36
74+ €175,17
99+ €164,22
199+ €162,03
249+ €159,85
499+ €157,66
999+ €153,28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMEK_LNG_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
75mm
Length:
192mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 50mm
Bore Clearance +0.016/-0.004mm
D 75mm
D Clearance 0/-0.015mm
L 192mm
L Clearance 0/-0.4mm
D<sub>1</sub> 112mm
D<sub>1</sub> Clearance 0/-0.3mm
H 13mm
PCD 94mm
K 88mm
d<sub>1</sub> 9mm
d<sub>2</sub> 14mm
h 8.6mm
Squareness um 20
Basic Load Rating - Dynamic C 6080 N
Basic Load Rating - Static Co 15900 N
No of Ball Rows 6
