SKU: LMK60.UU.EU

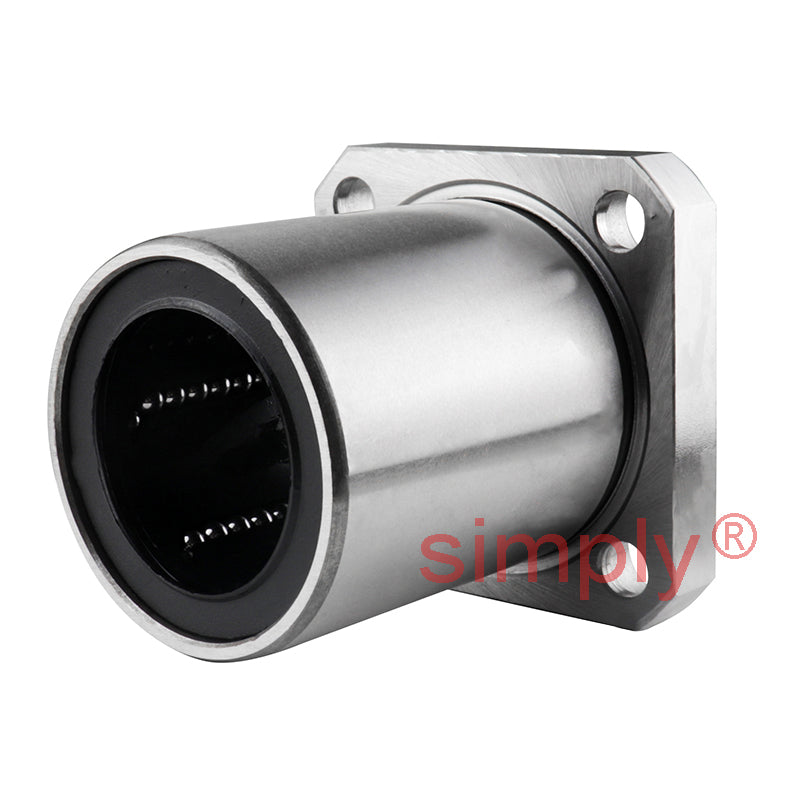

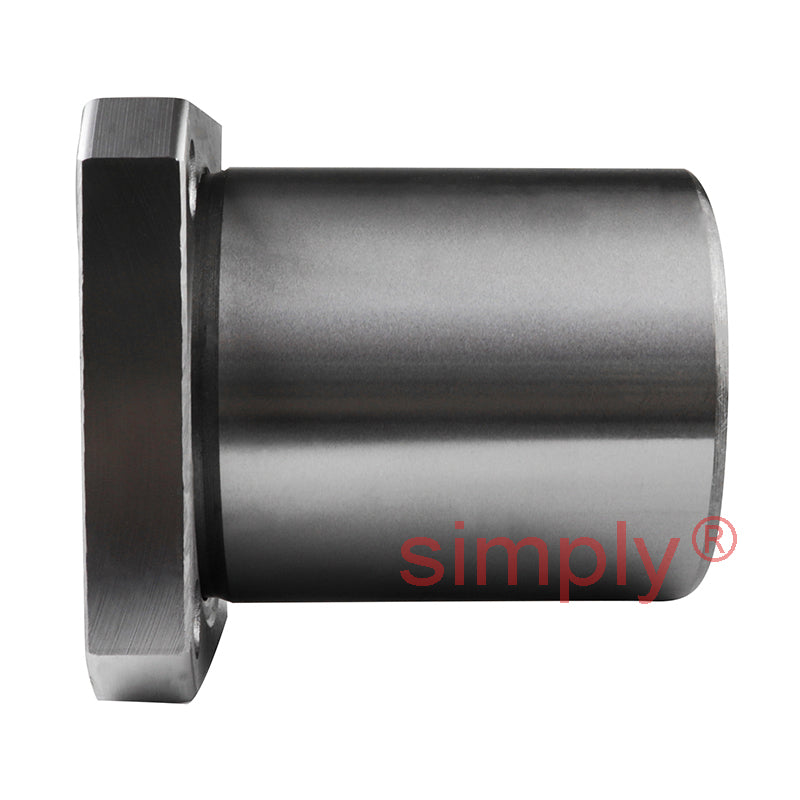

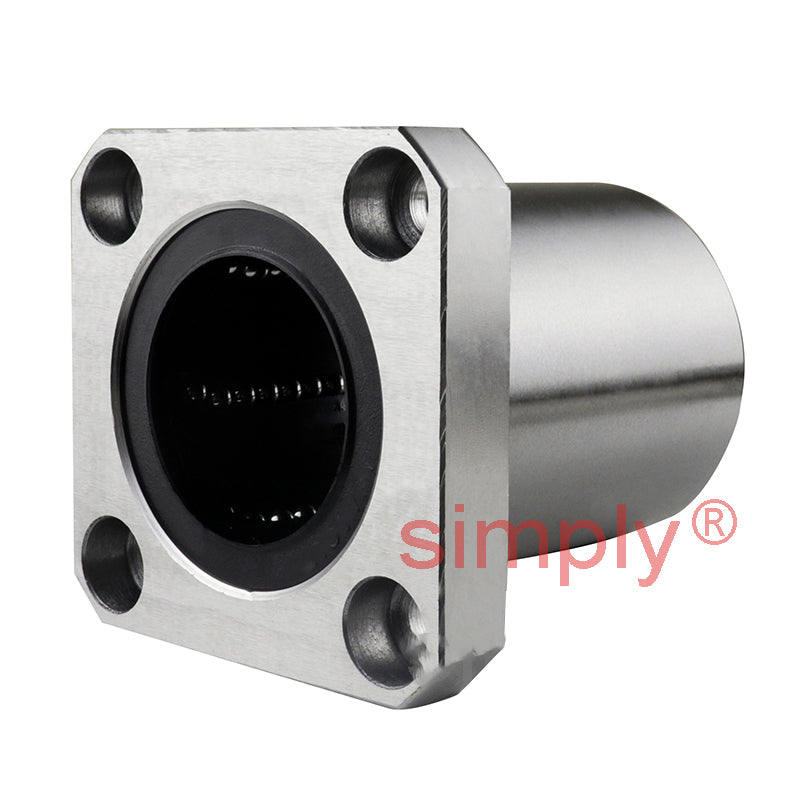

LMK60UU Metric Square Flanged Linear Ball Bushing 60x90x110mm

LMK60UU Metric Square Flanged Linear Ball Bushing 60x90x110mm
€113,04 ex VAT
€113,04 ex VAT
Sale Sold out

In stock

Price Break
3+ €85,90
5+ €81,08
9+ €80,11
19+ €79,15
49+ €78,18
74+ €77,22
99+ €72,39
199+ €71,42
249+ €70,46
499+ €69,49
999+ €67,56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMK_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
60mm
Outside Diameter:
90mm
Length:
110mm
Seals / Shields:
Rubber Sealed
Technical
Ball Rows 6
dr 60mm
dr Tolerance 0 to -0.015mm
D 90mm
D Tolerance 0 to -0.022mm
L 110mm
L Tolerance 0 to -0.3mm
D1 134mm
D1 Tolerance 0 to -0.3mm
K 106mm
H 18mm
PCD 112mm
Mounting Hole 11x17.5x10.8mm
Basic Load Dynamic Rating C 4710N
Basic Load Static Rating C0 10000N
Mass 2.278g
Material Standard
Style Square Flanged
