SKU: LPB1.1/4DEC-RHP

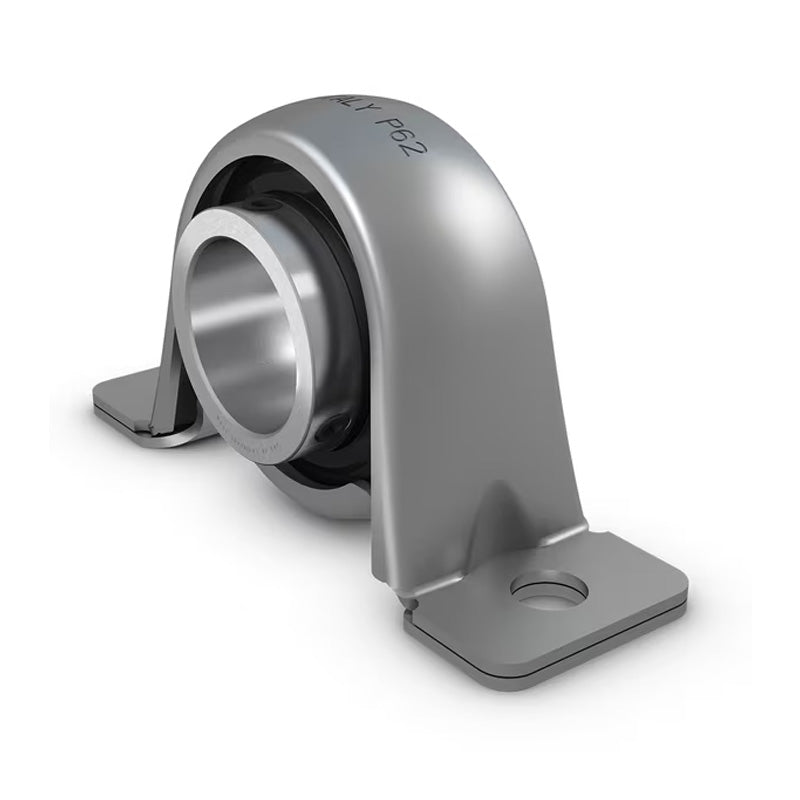

RHP LPB1-1/4DEC 1-1/4 inch Bore 2 Bolt Pressed Steel Pillow Housing Bearing
RHP LPB1-1/4DEC 1-1/4 inch Bore 2 Bolt Pressed Steel Pillow Housing Bearing
Out of stock
Description
Description
|
RHP LBP - DEC Type 2 Bolt Pillow Block Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied full width sealed bearing insert has an eccentric collar and grub screw for securing to the shaft. Once assembled the bearing remains reasonably rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, eccentric collar fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- LPB
- Bolt Hole Centres:
- 94.996mm = 3.74 inch
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 4.626 inch |
| H | 1.311 inch |
| H1 | 0.142 inch |
| H2 | 2.587 inch |
| J | 3.74 inch |
| G | 0.375 inch |
| A | 1.476 inch |
| A1 | 1.004 inch |
| B | 1.5 inch |
| B1 | 1.229 inch |
| B2 | 1.405 inch |
| B3 | 1.906 inch |
| s | 0.627 inch |
| s1 | 0.356 inch |
| s2 | 0.721 inch |
| d1 | 1.575 inch |
| d2 | 1.75 inch |
| Max radial housing load | 2670 N |
| Rec max speed | 2500 rpm |
| Weight | 0.5 kg |
| Insert | 1030-1-1/4 |
| Casting group | 4 |
