SKU: LPB1.1/4DECL-RHP

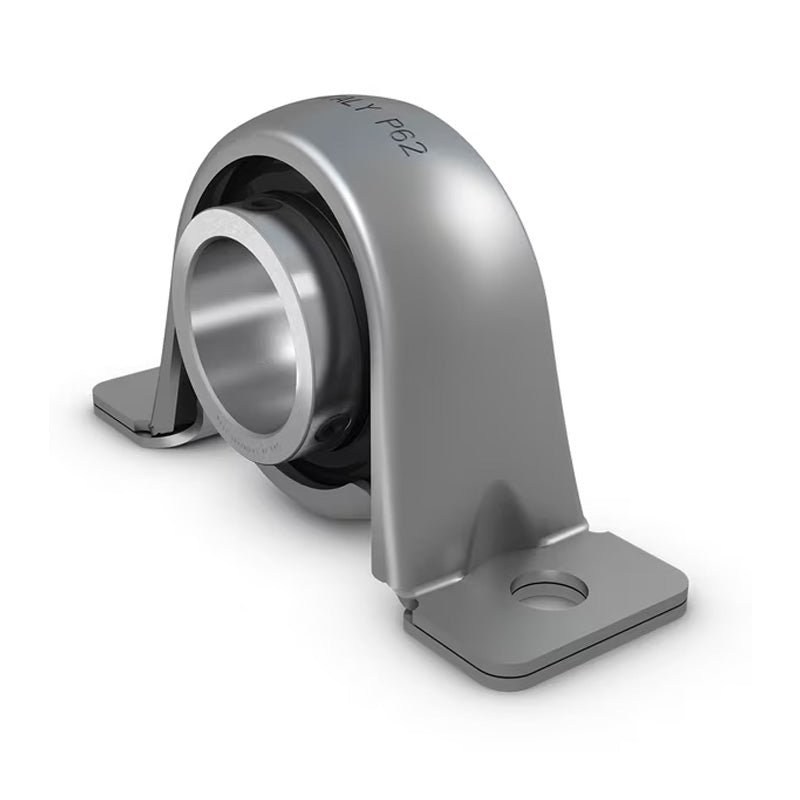

RHP LPB1-1/4DECL 1-1/4 inch Bore 2 Bolt Pressed Steel Pillow Housing Bearing
RHP LPB1-1/4DECL 1-1/4 inch Bore 2 Bolt Pressed Steel Pillow Housing Bearing
Out of stock
Description
Description
|
RHP LBP - DEC Type 2 Bolt Pillow Block Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied full width sealed bearing insert has an eccentric collar and grub screw for securing to the shaft. Once assembled the bearing remains reasonably rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, eccentric collar fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- LPB
- Bolt Hole Centres:
- 105.99mm = 4.173 inch
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 5.063 inch |
| H | 1.563 inch |
| H1 | 0.173 inch |
| H2 | 3.051 inch |
| J | 4.173 inch |
| G | 0.375 inch |
| A | 1.614 inch |
| A1 | 1.118 inch |
| B | 1.688 inch |
| B1 | 1.374 inch |
| B2 | 1.531 inch |
| B3 | 2.015 inch |
| s | 0.69 inch |
| s1 | 0.376 inch |
| s2 | 0.744 inch |
| d1 | 1.838 inch |
| d2 | 2.188 inch |
| Max radial housing load | 3560 N |
| Rec max speed | 2000 rpm |
| Weight | 0.9 kg |
| Insert | 1035-1-1/4 |
| Casting group | 5 |
