SKU: LR5201-KDDU-ZEN

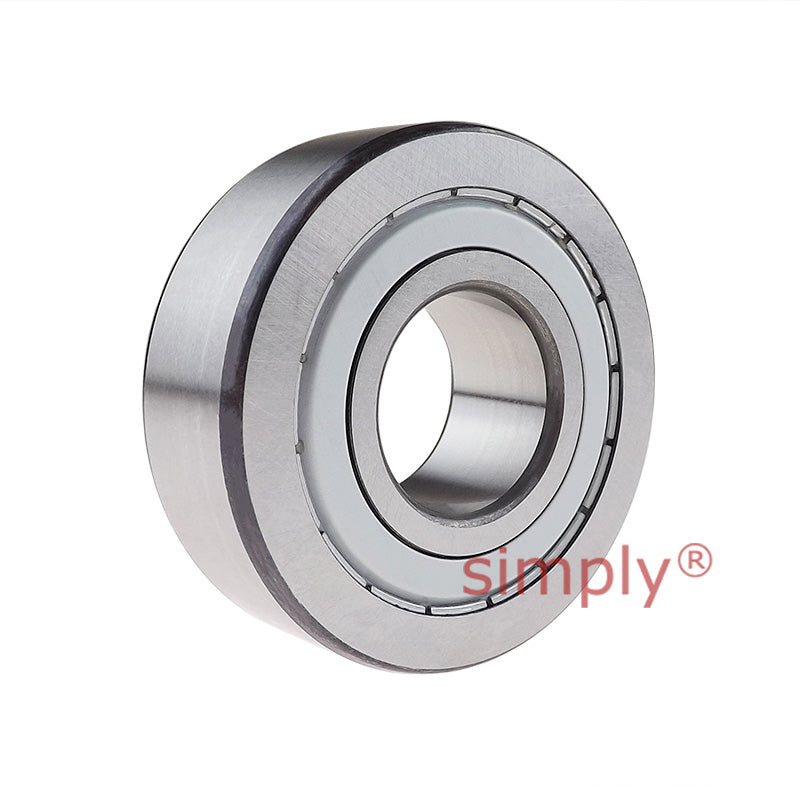

ZEN LR5201-KDDU Metal Shielded Track Roller 12x35x15.9mm - Allow 1-2 Days - Contact Us For Faster Delivery
- Regular price
- €11.96 ex VAT
- Sale price
- €11,96
- Regular price
-
Quantity Price Breaks
ZEN LR5201-KDDU Metal Shielded Track Roller 12x35x15.9mm - Allow 1-2 Days - Contact Us For Faster Delivery
- Regular price
- €11.96 ex VAT
- Sale price
- €11,96
- Regular price
-
Description
ZEN LR Series Track Rollers: The ZEN LR Series Track Roller is a precision-engineered bearing component designed for reliable performance in track guidance, conveyor, and automation systems. Built with a thick-walled outer ring, it delivers high rigidity and exceptional resistance to deformation under load. They are a dependable choice for engineers who need precise guidance, high load capacity, and long-lasting reliability in industrial applications. The LR series are available with metal shields or rubber seals.
Benefits: Low friction, compact design, long service life

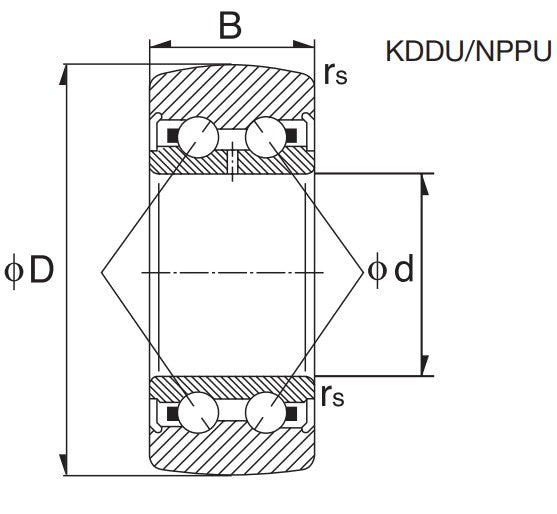

Technical
| d - Inside Diameter | = | 12mm |
| D - Outside Diameter | = | 35mm |
| B - Width | = | 15.9mm |
| rs - Radius | = | 0.6mm |
| Static load rating | = | 5100 N |
| Dynamic load rating | = | 8600 N |
| Limiting Speed | = | 10000 rpm |
