SKU: LR606-2RSR-INA

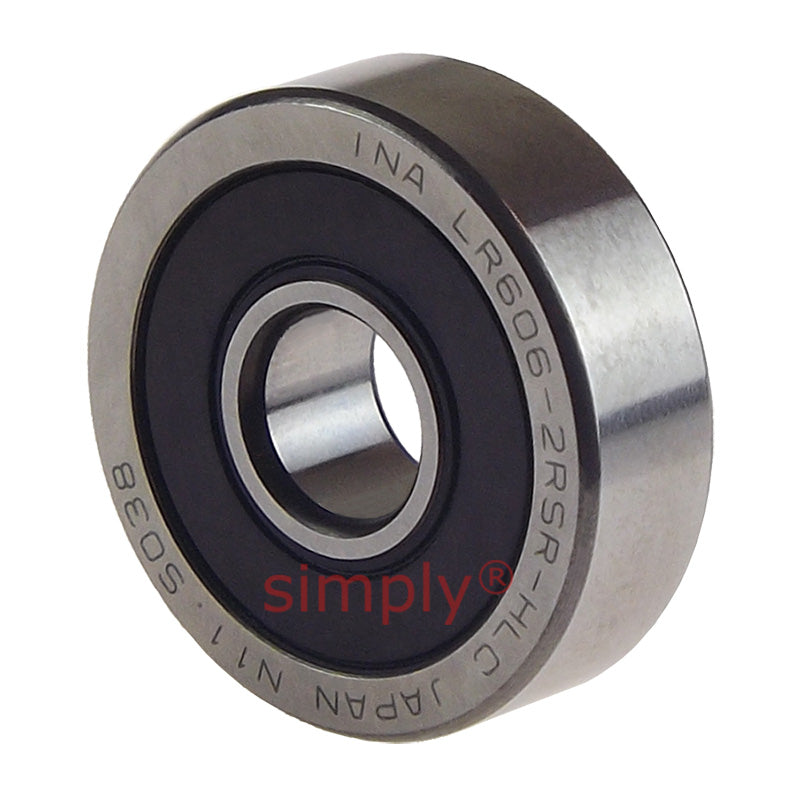

INA LR6062RSR Rubber Sealed Track Roller with Crowned Outer Race 6x19x6mm
- Regular price
- €23.07 ex VAT
- Sale price
- €23,07
- Regular price
-
Not in stock
Quantity Price Breaks
3
€20.53
5
€19.38
9
€19.15
19
€18.92
49
€18.69
74
€18.46
99
€17.30
199
€17.07
249
€16.84
499
€16.61
999
€16.15
SKU:
LR606-2RSR-INA
INA LR6062RSR Rubber Sealed Track Roller with Crowned Outer Race 6x19x6mm
- Regular price
- €23.07 ex VAT
- Sale price
- €23,07
- Regular price
-
Description
Rubber Sealed Track Roller Bearing with a Spherical Outer: This range of self-retaining track roller bearings have a crowned outer raceways with thicker walls. They are able to take on high radial forces and can support axial force in both directions. This 2RSR range has lip seals on both sides giving radial sealing action.
Benefits: Maintenance free, capable of withstanding high radial and axial forces
Technical
| d | = | 6mm |
| D | = | 19mm |
| C | = | 6mm |
| d< | = | sub> |
| 2< | = | /sub> |
| = | 8.7mm | |
| Crowning Radius (R) | = | 500mm |
| r< | = | sub> |
| min< | = | /sub> |
| = | 0.3mm | |
| Mass (m) | = | 0.01kg |
| Dynamic Load (C< | = | sub> |
| r w< | = | /sub> |
| ) | = | 1940N |
| Static Load (C0< | = | sub> |
| r w< | = | /sub> |
| ) | = | 790N |
| Fatigue Limit Load (C< | = | sub> |
| ur w< | = | /sub> |
| ) | = | 39.5N |
| Speed (n< | = | sub> |
| D G< | = | /sub> |
| ) | = | 22000 1/min |
