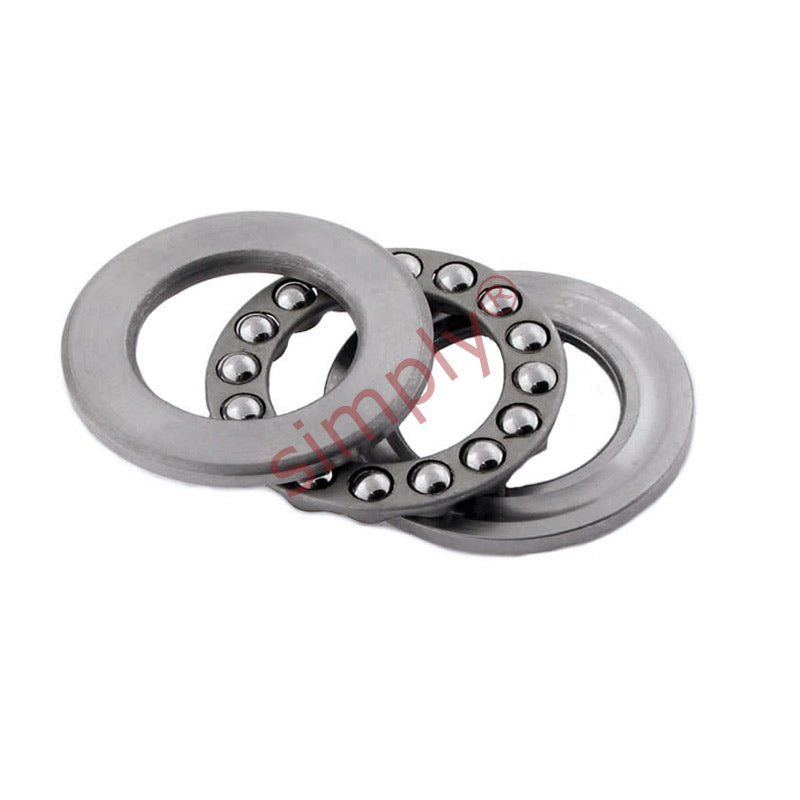

• LT2-1/2 Imperial Thrust Ball Bearing 2-1/2x3-23/32x1 inch
1 1

SKU: LT.2-1/2

LT2-1/2 Imperial Thrust Ball Bearing 2-1/2x3-23/32x1 inch

LT2-1/2 Imperial Thrust Ball Bearing 2-1/2x3-23/32x1 inch
€81,53 ex VAT
€81,53 ex VAT
Sale Sold out

In stock

Price Break
10+ €61,96
19+ €58,48
29+ €57,78
39+ €57,08
49+ €56,39
74+ €55,69
99+ €52,21
199+ €51,52
249+ €50,82
499+ €50,12
999+ €48,73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Imperial Ball Thrust Bearings: Consisting of two grooved washers and a ball race supported in a cage assembly. For ease of assembly they are separable into the three components permitting each part to be mounted individually, This style of bearing offers some element of shaft location, axial load and limited radial load.
Benefits: Cost effective, separable for ease of mounting, axial loading
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
63.5mm = 2.5 (2-1/2) inch
Outside Diameter:
94.46mm = 3.719 (3-23/32) inch
Width:
25.4mm = 1 inch
Technical
Shaft Washer Bore(d) 2-1/2 inch
Housing Washer Bore(D1) 2-17/32 inch
Shaft Washer Outside Diameter(d1) 3-11/16 inch
Housing Washer Outside Diameter(D) 3-23/32 inch
Width 1 inch
