SKU: M-AELPF208-NTN

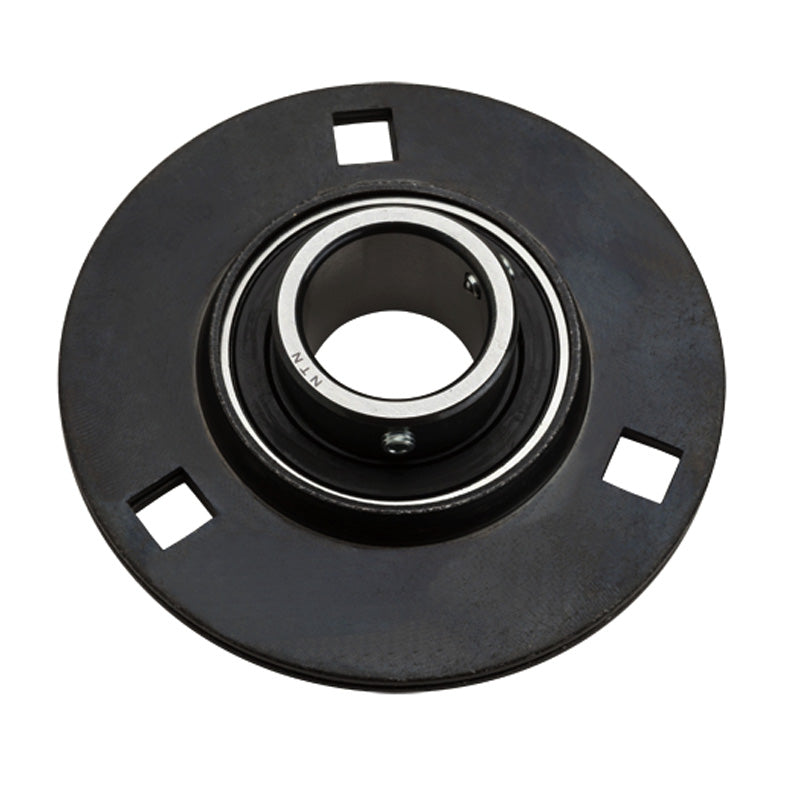

NTN M-AELPF208 Round 4 Bolt Pressed Steel Bearing Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
NTN M-AELPF208 Round 4 Bolt Pressed Steel Bearing Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Description
Description
|
AELPF200 Series 4 Bolt Pressed Steel Round Housings: Of galvanized steel construction these housings are a simple economical housed housing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. Benefits: Cost-effective housing assembly |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- AELPF
- Pitch Circle Diameter:
- 119mm
Technical
Technical

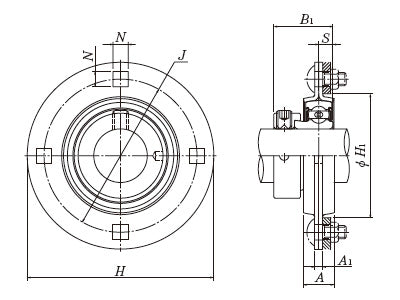

| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| H | 148mm |
| J | 119mm |
| A<sub>1</sub> | 6.8mm |
| N | 13.5mm |
| A | 21mm |
| B<sub>1</sub> | 43.7mm |
| S | 11mm |
| H<sub>1</sub> min | 91mm |
| Fixing bolt | M12 |
| --- | Load rating |
| Max load recommended radial | 7000 N |
| Max load recommended axial | 3500 N |
| --- | Unit information |
| Mass | 1.4 kg |
