SKU: M-C-UCP217-305D1-NTN

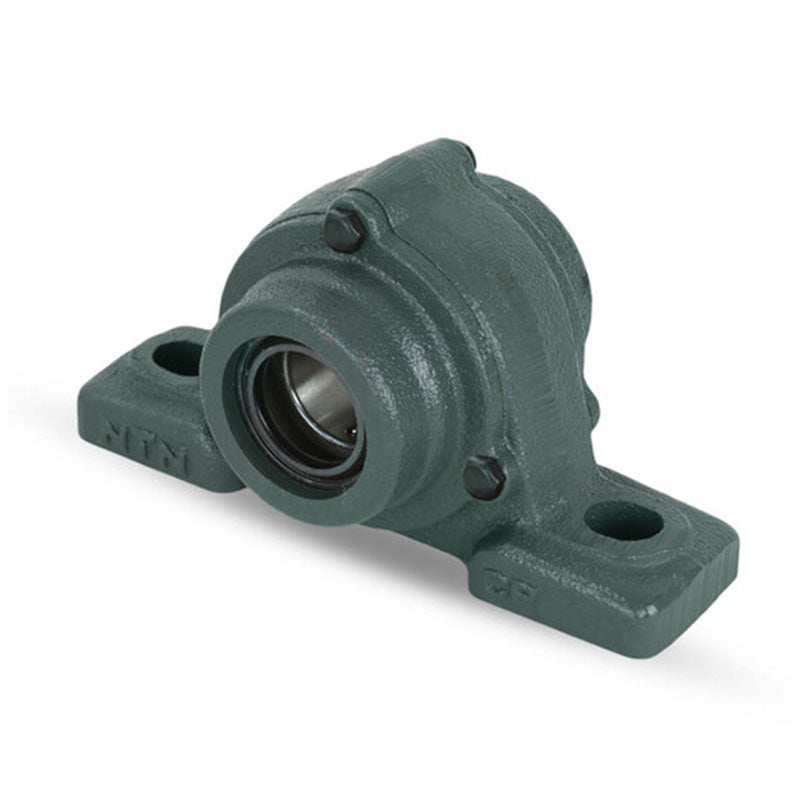

NTN M-C-UCP217-305D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3-5/16 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN M-C-UCP217-305D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3-5/16 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 84.13mm = 3.312 (3-5/16) inch
- Style:
- UCP
- Bolt Hole Centres:
- 9-23/32 inch
Technical
Technical

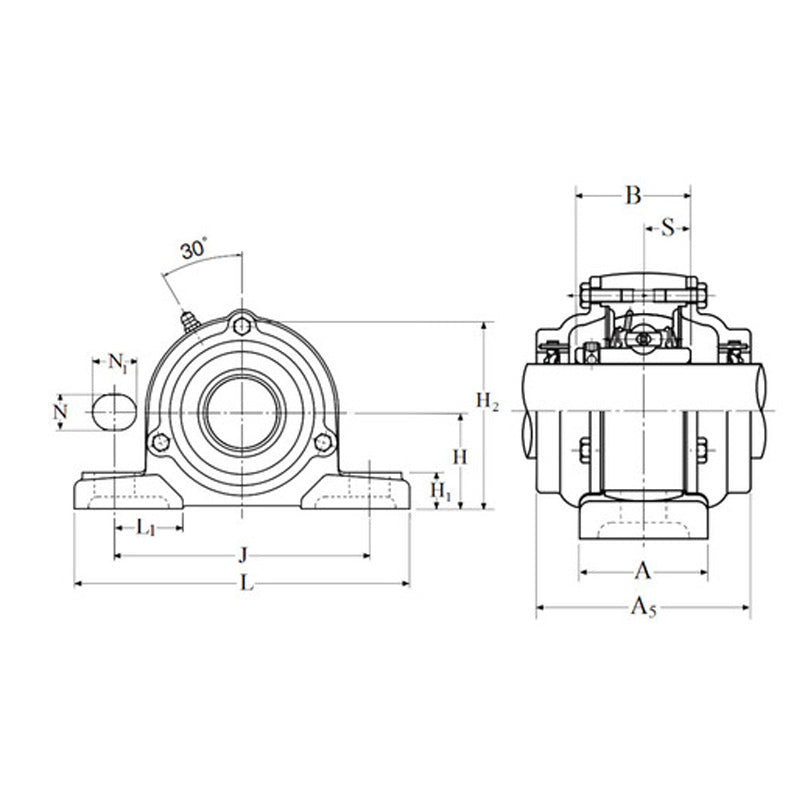

| --- | Dimensions |
|---|---|
| Shaft diameter | 3-5/16 inch |
| H | 3-3/4 inch |
| L | 12-7/32 inch |
| J | 9-23/32 inch |
| A | 3-9/32 inch |
| N | 31/32 inch |
| N<sub>1</sub> | 1-3/32 inch |
| H<sub>1</sub> | 1-1/4 inch |
| H<sub>2</sub> | 7-3/8 inch |
| L<sub>1</sub> | 3-11/32 inch |
| B | 3.374 inch |
| S | 1.343 inch |
| H<sub>3</sub> | 7-17/32 inch |
| A<sub>5</sub> | 6-3/32 inch |
| Fixing bolt | 3/4 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 92 kN |
| Static load C<sub>0r</sub> | 64 kN |
| Fatigue load limit C<sub>u</sub> | 4.6 kN |
| --- | Unit information |
| Mass | 29 lbs |
