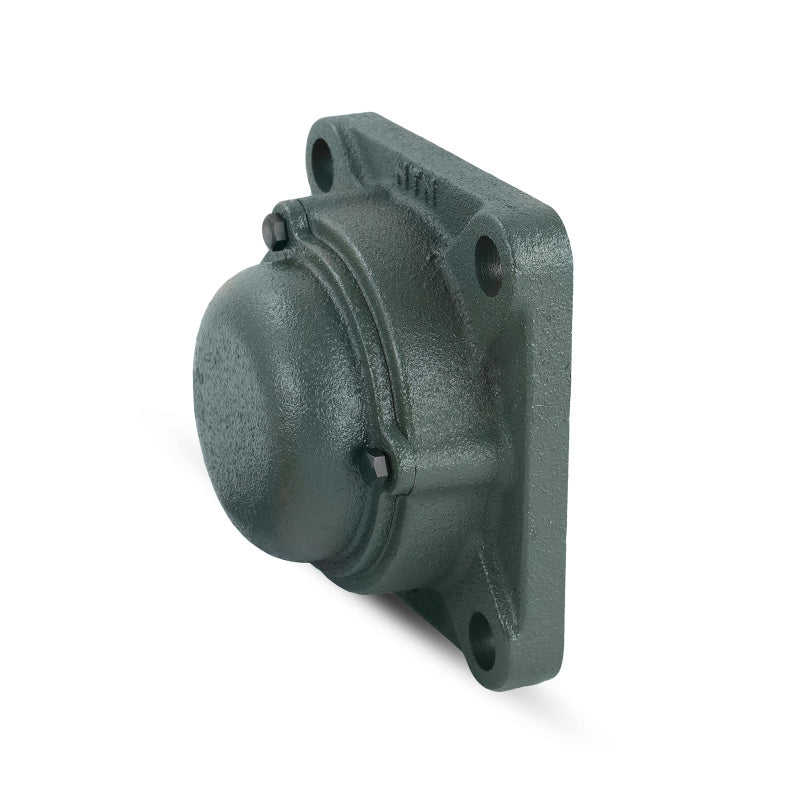

• NTN M-CM-UCF210D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
1 1

SKU: M-CM-UCF210D1-NTN

NTN M-CM-UCF210D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN M-CM-UCF210D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
€68,22 ex VAT
€68,22 ex VAT
Sale Sold out

In stock

Price Break
3+ €51,84
4+ €48,93
9+ €48,35
19+ €47,77
49+ €47,18
99+ €46,60
499+ €43,69
999+ €43,11
1999+ €42,52
2999+ €41,94
4999+ €40,78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF200_DESC
Brand / Quality:
NTN - High Quality
Inside Diameter:
50mm
Style:
UCF
Bolt Hole Centres:
111mm
Technical

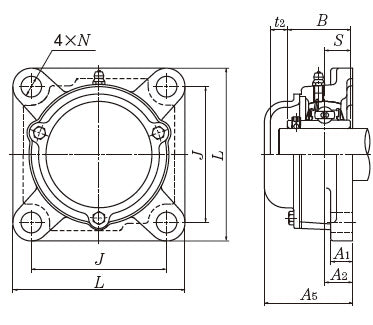

--- Dimensions
Shaft diameter 50mm
L 143mm
J 111mm
A<sub>2</sub> 22mm
A<sub>1</sub> 16mm
A 40mm
N 16mm
B 51.6mm
S 19mm
t<sub>2</sub> 12mm
A<sub>5</sub> 72mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 39 kN
Static load C<sub>0r</sub> 23.2 kN
Fatigue load limit C<sub>u</sub> 1.82 kN
--- Unit information
Mass 3 kg
