SKU: M-CM-UCFL216D1-NTN

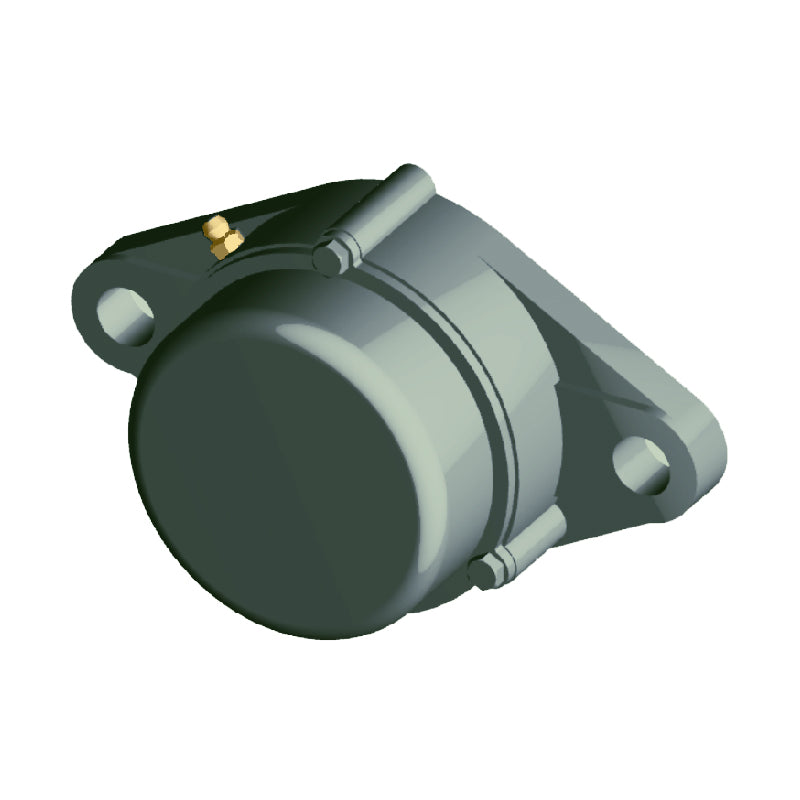

NTN M-CM-UCFL216D1 Metric Two Bolt Oval Cast Iron Flange Housing with 80mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN M-CM-UCFL216D1 Metric Two Bolt Oval Cast Iron Flange Housing with 80mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCFL
- Bolt Hole Centres:
- 233mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| H | 290mm |
| J | 233mm |
| A<sub>2</sub> | 34mm |
| A<sub>1</sub> | 22mm |
| A | 58mm |
| N | 25mm |
| L | 180mm |
| B | 82.6mm |
| S | 33.3mm |
| t<sub>2</sub> | 16mm |
| A<sub>5</sub> | 106mm |
| L<sub>1</sub> | 183mm |
| L<sub>2</sub> | 90mm |
| Fixing bolt | M22 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 80.5 kN |
| Static load C<sub>0r</sub> | 53 kN |
| Fatigue load limit C<sub>u</sub> | 3.95 kN |
| --- | Unit information |
| Mass | 8.6 kg |
