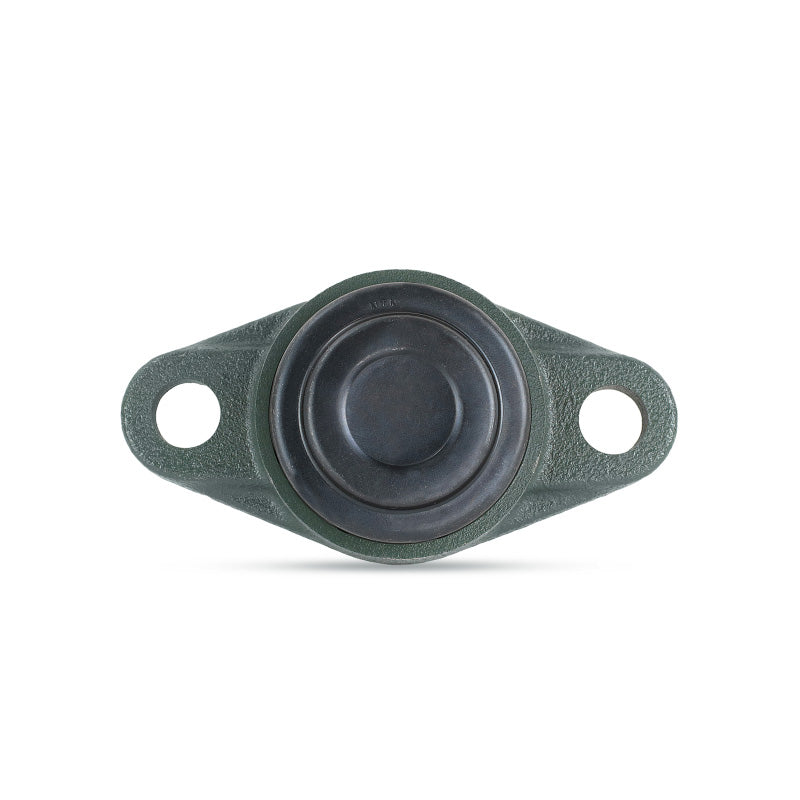

• NTN M-SM-UCFL205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: M-SM-UCFL205D1-NTN

NTN M-SM-UCFL205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days

NTN M-SM-UCFL205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
€33,59 ex VAT
€33,59 ex VAT
Sale Sold out

In stock

Price Break
3+ €25,53
4+ €24,09
9+ €23,80
19+ €23,52
49+ €23,23
99+ €22,94
499+ €21,51
999+ €21,22
1999+ €20,94
2999+ €20,65
4999+ €20,08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL200_DESC
Brand / Quality:
NTN - High Quality
Inside Diameter:
25mm
Style:
UCFL
Bolt Hole Centres:
99mm
Technical
--- Dimensions
Shaft diameter 25mm
H 130mm
J 99mm
A<sub>2</sub> 16mm
A<sub>1</sub> 13mm
A 27mm
N 16mm
L 68mm
B 34.1mm
S 14.3mm
t<sub>1</sub> 7mm
A<sub>4</sub> 44.5mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 15.5 kN
Static load C<sub>0r</sub> 7.85 kN
Fatigue load limit C<sub>u</sub> 0.55 kN
--- Unit information
Mass 0.6 kg
