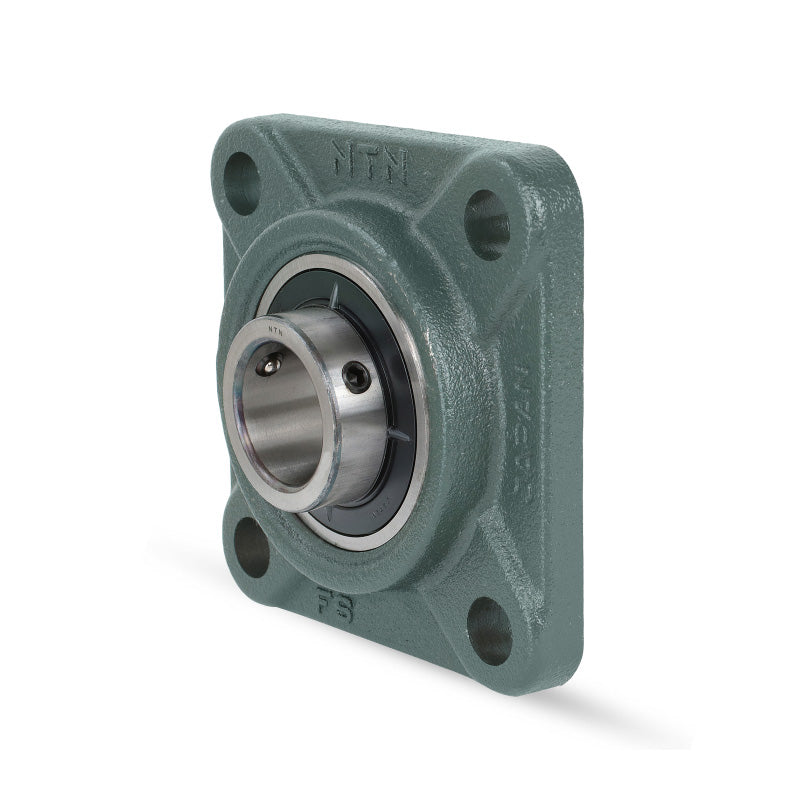

• NTN M-UCF209D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert
1 1

SKU: M-UCF209D1-NTN

NTN M-UCF209D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert

NTN M-UCF209D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert
€46,65 ex VAT
€46,65 ex VAT
Sale Sold out

In stock

Price Break
3+ €35,45
4+ €33,46
9+ €33,06
19+ €32,66
49+ €32,26
99+ €31,86
499+ €29,87
999+ €29,47
1999+ €29,08
2999+ €28,68
4999+ €27,88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF200_DESC
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Style:
UCF
Bolt Hole Centres:
105mm
Technical
--- Dimensions
Shaft diameter 45mm
L 137mm
J 105mm
A<sub>2</sub> 22mm
A<sub>1</sub> 16mm
A 38mm
N 16mm
A<sub>0</sub> 52.2mm
B 49.2mm
S 19mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 36 kN
Static load C<sub>0r</sub> 20.4 kN
Fatigue load limit C<sub>u</sub> 1.6 kN
--- Unit information
Mass 2.1 kg
