SKU: M-UCFA204D1-NTN

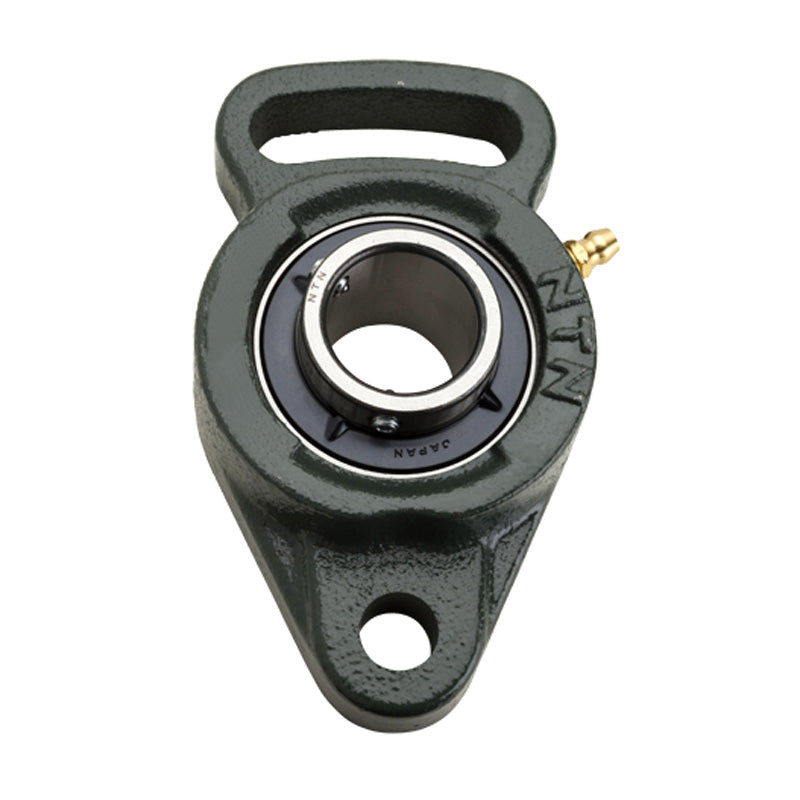

NTN M-UCFA204D1 Metric Cast Iron Adjustable Flange Unit with 20mm Insert - Allow 2-3 Days
- Regular price
- €26.64 ex VAT
- Sale price
- €26,64
- Regular price
-
Not in stock
Quantity Price Breaks
3
€23.71
4
€22.38
9
€22.11
19
€21.84
49
€21.58
99
€21.31
499
€19.98
999
€19.71
1999
€19.45
2999
€19.18
4999
€18.65
SKU:
M-UCFA204D1-NTN
NTN M-UCFA204D1 Metric Cast Iron Adjustable Flange Unit with 20mm Insert - Allow 2-3 Days
- Regular price
- €26.64 ex VAT
- Sale price
- €26,64
- Regular price
-
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

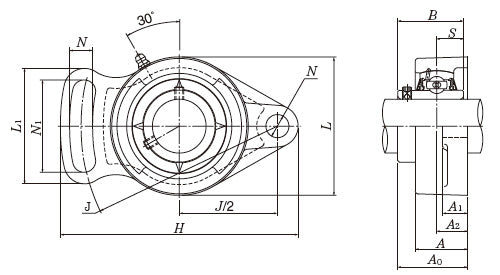

Technical
| Shaft diameter | = | 20mm |
| H | = | 98mm |
| J | = | 78mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 15mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 12mm | |
| A | = | 25.5mm |
| N | = | 10mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 40mm | |
| L | = | 60mm |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 50mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 33.3mm | |
| B | = | 31mm |
| S | = | 12.7mm |
| Fixing bolt | = | M8 |
| Mass | = | 0.5 kg |
