SKU: M-UCFA205D1-NTN

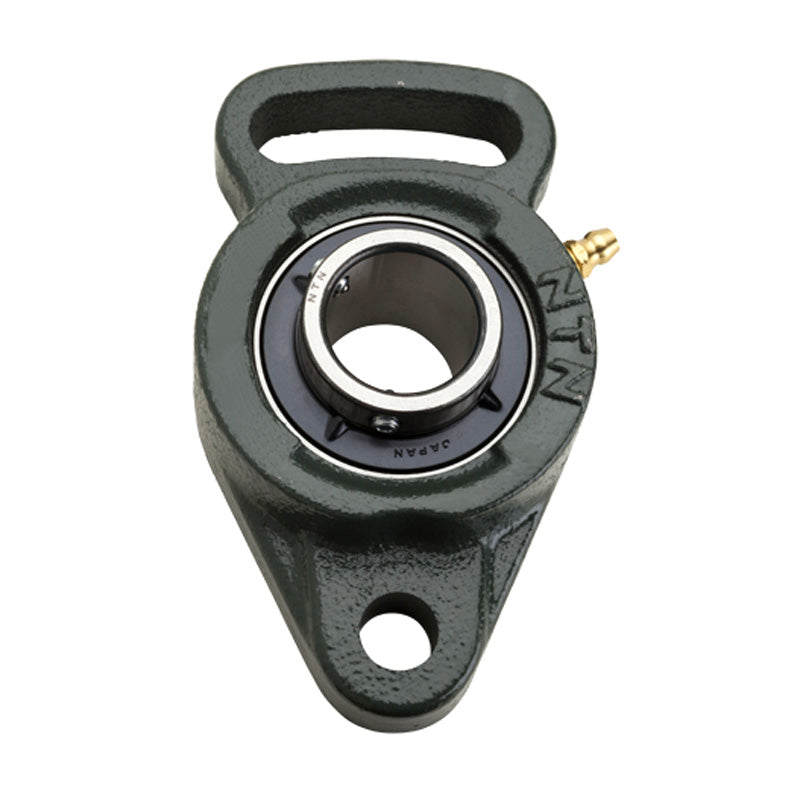

NTN M-UCFA205D1 Metric Cast Iron Adjustable Flange Unit with 25mm Insert - Allow 2-3 Days
- Regular price
- €31.49 ex VAT
- Sale price
- €31,49
- Regular price
-
Not in stock
Quantity Price Breaks
3
€28.03
4
€26.45
9
€26.14
19
€25.82
49
€25.51
99
€25.19
499
€23.62
999
€23.30
1999
€22.99
2999
€22.67
4999
€22.04
SKU:
M-UCFA205D1-NTN
NTN M-UCFA205D1 Metric Cast Iron Adjustable Flange Unit with 25mm Insert - Allow 2-3 Days
- Regular price
- €31.49 ex VAT
- Sale price
- €31,49
- Regular price
-
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| Shaft diameter | = | 25mm |
| H | = | 124mm |
| J | = | 96mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 15mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 14mm | |
| A | = | 26.5mm |
| N | = | 13mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 49mm | |
| L | = | 70mm |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 64mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 34.8mm | |
| B | = | 34.1mm |
| S | = | 14.3mm |
| Fixing bolt | = | M10 |
| Mass | = | 0.7 kg |
