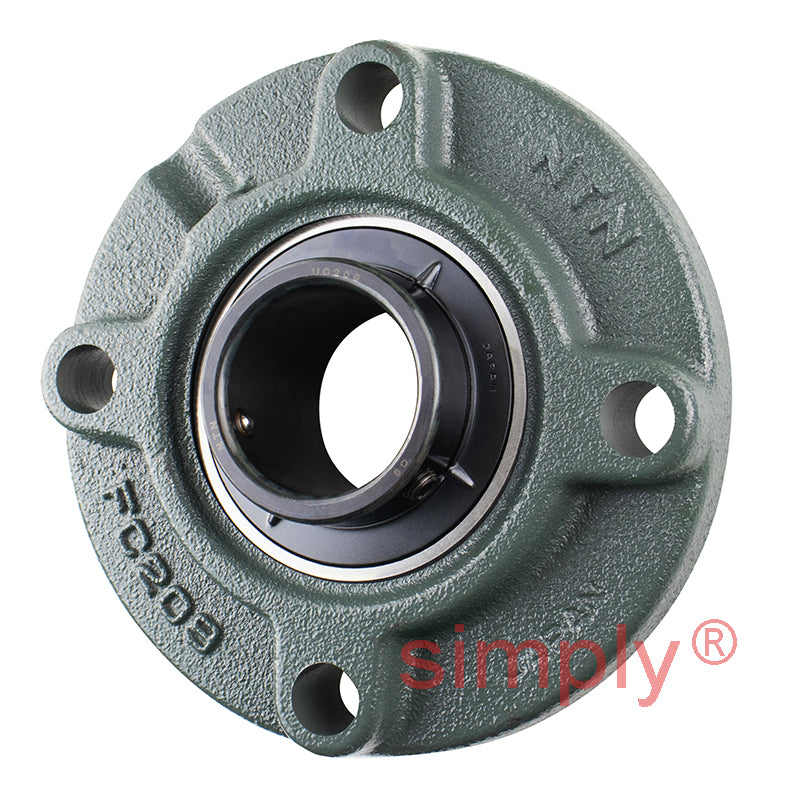

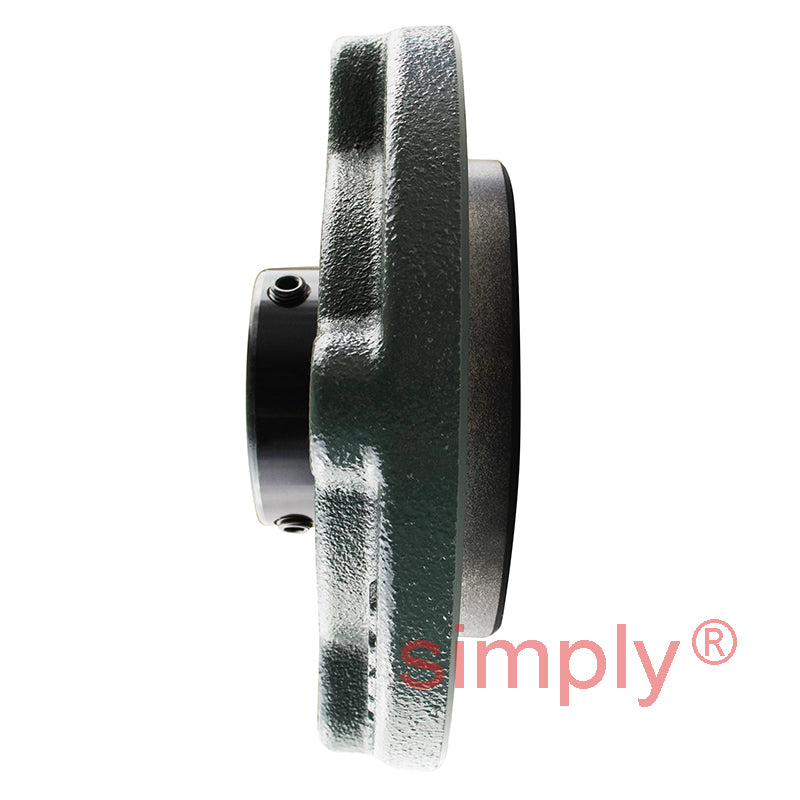

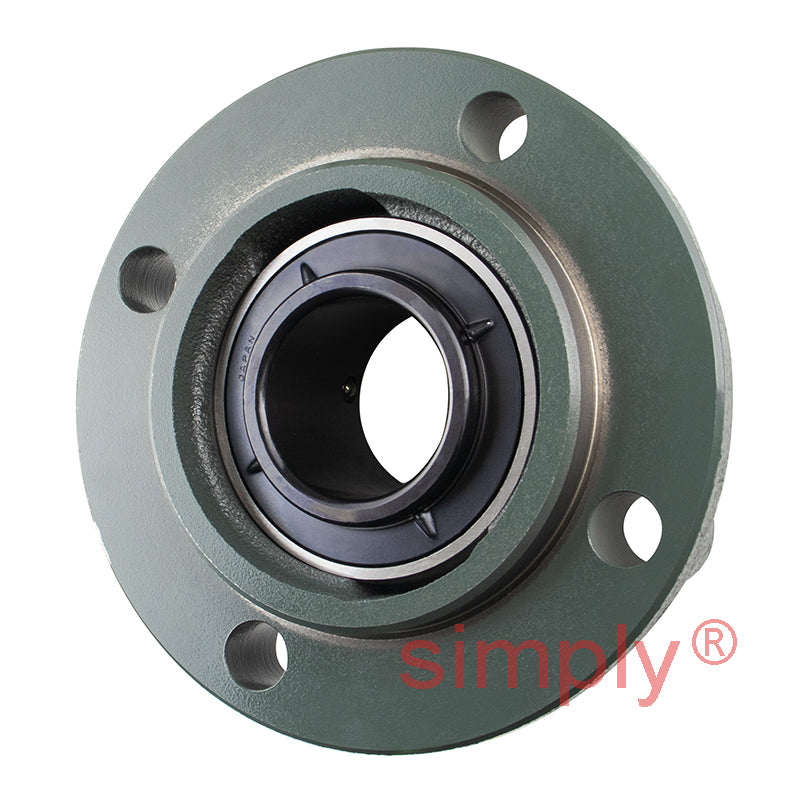

NTN M-UCFC209D1 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert
NTN M-UCFC209D1 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert
Regular price
€53,49
ex VAT
Regular price
Sale price
€53,49
ex VAT
In stock
Price Break
3+
€40,65
4+
€38,36
9+
€37,91
19+
€37,45
49+
€36,99
99+
€36,54
499+
€34,25
999+
€33,80
1999+
€33,34
2999+
€32,88
4999+
€31,97
Quantity
Couldn't load pickup availability
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 93.3mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| L | 160mm |
| J | 132mm |
| (J<sub>1</sub>) | 93.3mm |
| A<sub>2</sub> | 10mm |
| N | 16mm |
| A<sub>3</sub> | 12mm |
| A<sub>1</sub> | 26mm |
| A | 38mm |
| H<sub>3</sub> | 105mm |
| A<sub>0</sub> | 52.2mm |
| B | 49.2mm |
| S | 19mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 36 kN |
| Static load C<sub>0r</sub> | 20.4 kN |
| Fatigue load limit C<sub>u</sub> | 1.6 kN |
| --- | Unit information |
| Mass | 2.7 kg |
