SKU: M-UCFH204D1-NTN

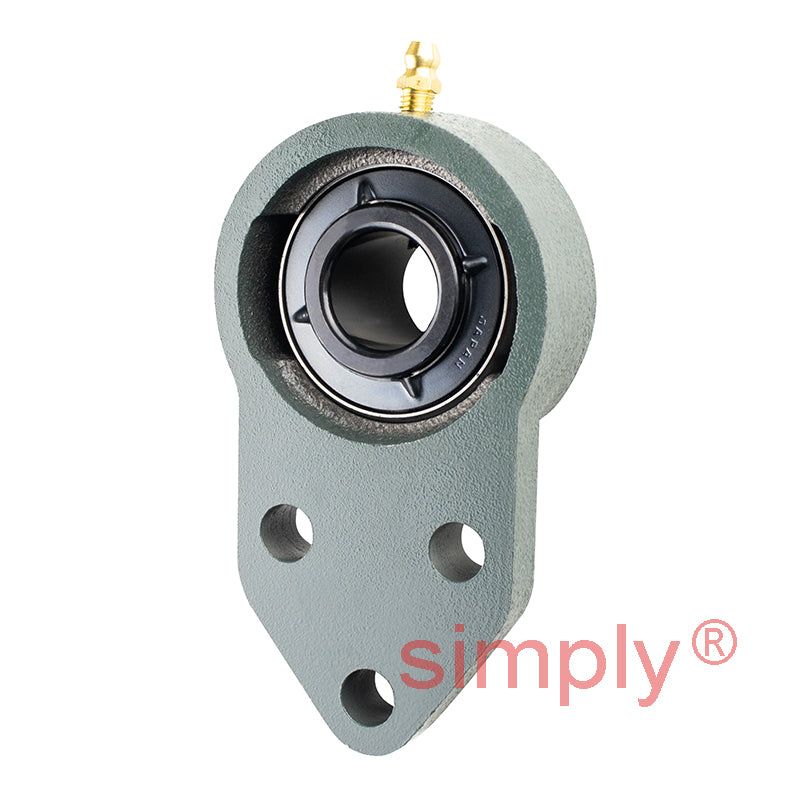

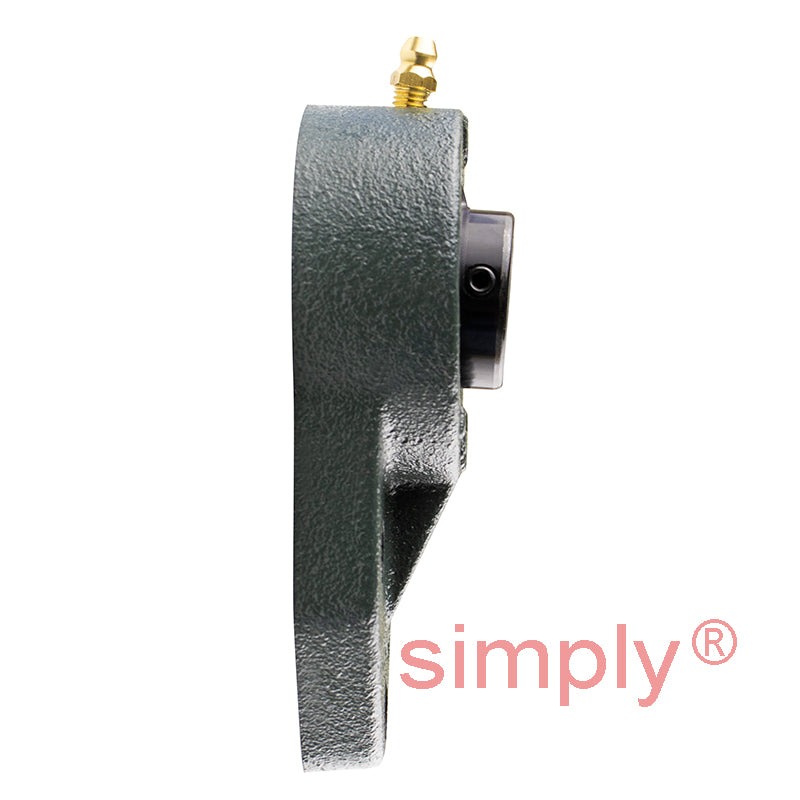

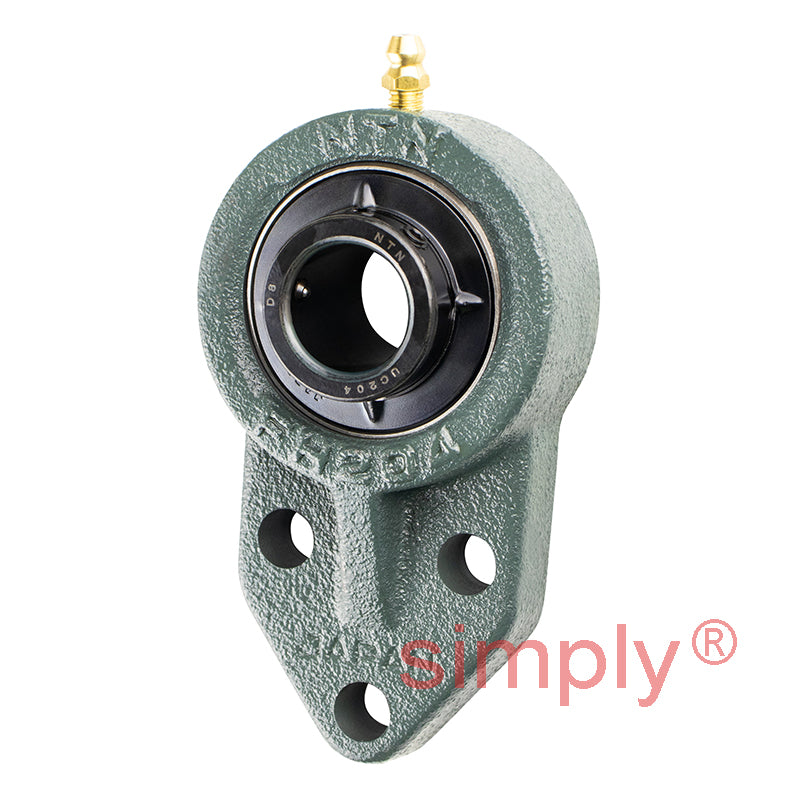

NTN M-UCFH204D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 20mm Bore
- Regular price
- €25.43 ex VAT
- Sale price
- €25,43
- Regular price
-
In stock
Quantity Price Breaks
3
€22.63
4
€21.36
9
€21.11
19
€20.85
49
€20.60
99
€20.34
499
€19.07
999
€18.82
1999
€18.56
2999
€18.31
4999
€17.80
SKU:
M-UCFH204D1-NTN
NTN M-UCFH204D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 20mm Bore
- Regular price
- €25.43 ex VAT
- Sale price
- €25,43
- Regular price
-
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| Shaft diameter | = | 20mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 110mm | |
| J | = | 32mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 15mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 13mm | |
| A | = | 25.5mm |
| N | = | 10mm |
| H | = | 42mm |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 27mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 52mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 52mm | |
| L | = | 62mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 33.3mm | |
| B | = | 31mm |
| S | = | 12.7mm |
| Fixing bolt | = | M8 |
| Mass | = | 0.6 kg |
