SKU: M-UCFH206D1-NTN

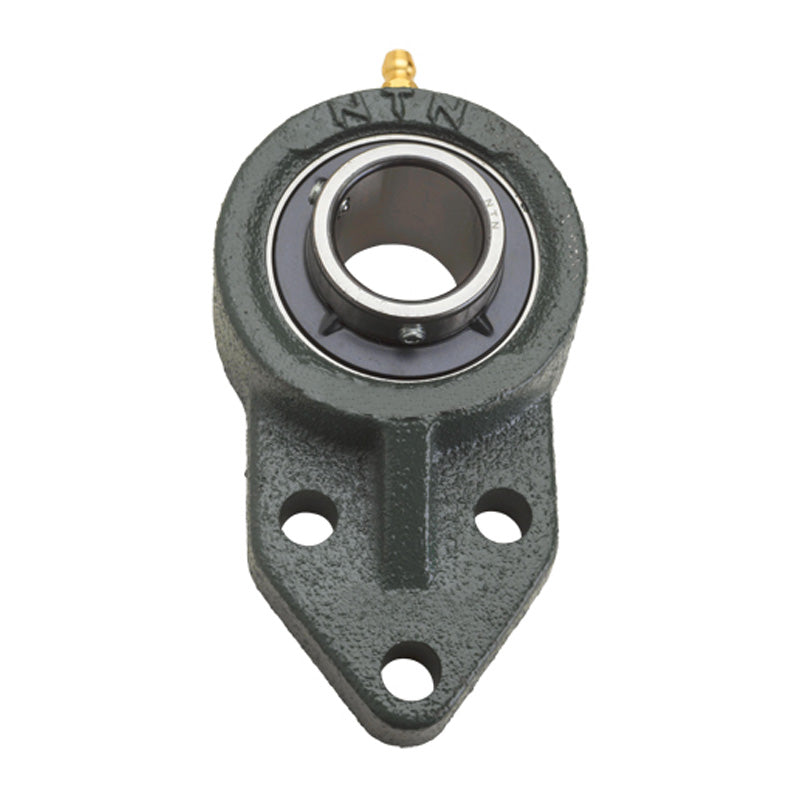

NTN M-UCFH206D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 30mm Bore - Allow 2-3 Days
- Regular price
- €36.82 ex VAT
- Sale price
- €36,82
- Regular price
-
Not in stock
Quantity Price Breaks
3
€32.77
4
€30.93
9
€30.56
19
€30.19
49
€29.82
99
€29.46
499
€27.62
999
€27.25
1999
€26.88
2999
€26.51
4999
€25.77
SKU:
M-UCFH206D1-NTN
NTN M-UCFH206D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 30mm Bore - Allow 2-3 Days
- Regular price
- €36.82 ex VAT
- Sale price
- €36,82
- Regular price
-
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

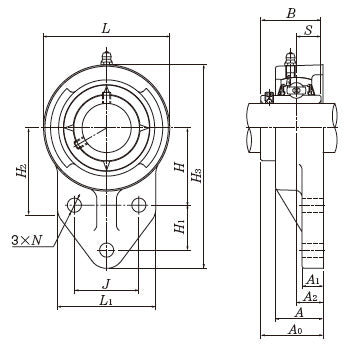

Technical
| Shaft diameter | = | 30mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 130mm | |
| J | = | 40mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 18mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 13mm | |
| A | = | 31mm |
| N | = | 10mm |
| H | = | 50mm |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 29mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 65mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 55mm | |
| L | = | 78mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 40.2mm | |
| B | = | 38.1mm |
| S | = | 15.9mm |
| Fixing bolt | = | M8 |
| Mass | = | 0.9 kg |
