SKU: M-UCFH210D1-NTN

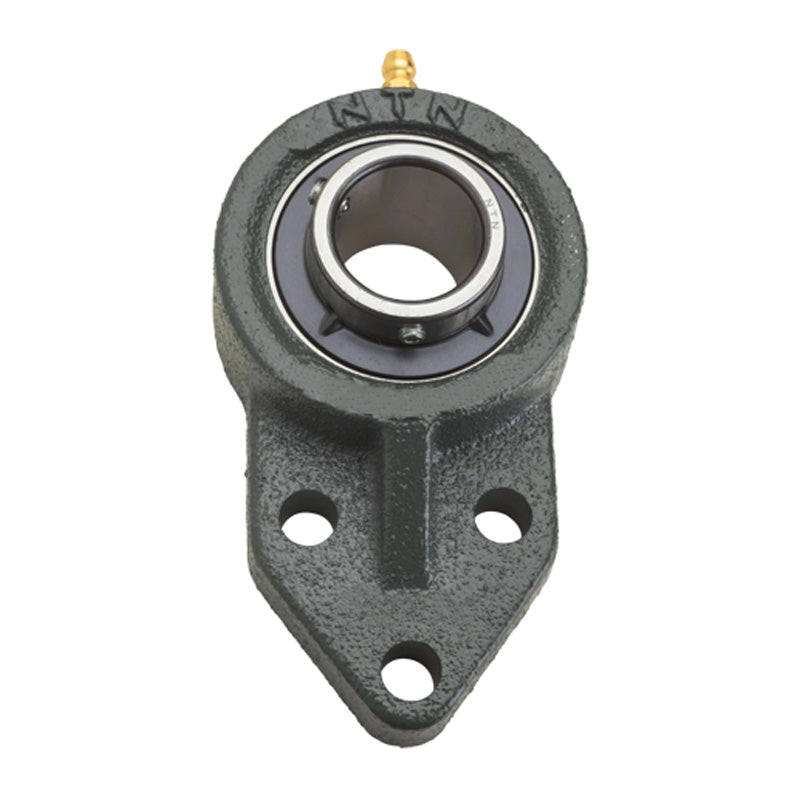

NTN M-UCFH210D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 50mm Bore - Allow 2-3 Days
NTN M-UCFH210D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 50mm Bore - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFH
- Bolt Hole Centres:
- 58mm
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| H<sub>3</sub> | 184mm |
| J | 58mm |
| A<sub>2</sub> | 22mm |
| A<sub>1</sub> | 18mm |
| A | 40mm |
| N | 12mm |
| H | 68mm |
| H<sub>1</sub> | 46mm |
| L<sub>1</sub> | 86mm |
| H<sub>2</sub> | 82mm |
| L | 112mm |
| A<sub>0</sub> | 54.6mm |
| B | 51.6mm |
| S | 19mm |
| Fixing bolt | M10 |
| Mass | 2.4 kg |
