• NTN M-UCFL201D1 Metric Two Bolt Oval Cast Iron Flange Housing with 12mm Bore Insert - Allow 2-3 Days
1 1

SKU: M-UCFL201D1-NTN

NTN M-UCFL201D1 Metric Two Bolt Oval Cast Iron Flange Housing with 12mm Bore Insert - Allow 2-3 Days

NTN M-UCFL201D1 Metric Two Bolt Oval Cast Iron Flange Housing with 12mm Bore Insert - Allow 2-3 Days
€26,75 ex VAT
€26,75 ex VAT
Sale Sold out

In stock

Price Break
3+ €20,33
4+ €19,19
9+ €18,96
19+ €18,73
49+ €18,50
99+ €18,27
499+ €17,13
999+ €16,90
1999+ €16,67
2999+ €16,44
4999+ €15,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL200_DESC
Brand / Quality:
NTN - High Quality
Inside Diameter:
12mm
Style:
UCFL
Bolt Hole Centres:
90mm
Technical

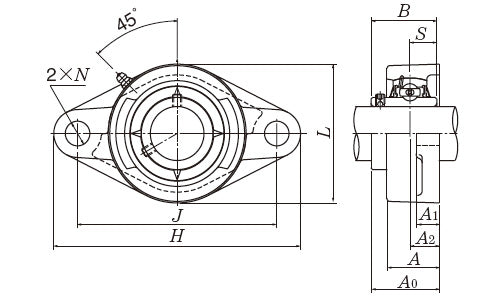

--- Dimensions
Shaft diameter 12mm
H 113mm
J 90mm
A<sub>2</sub> 15mm
A<sub>1</sub> 11mm
A 25.5mm
N 12mm
L 60mm
A<sub>0</sub> 33.3mm
B 31mm
S 12.7mm
Fixing bolt M10
--- Load rating
Dynamic load C<sub>r</sub> 14.2 kN
Static load C<sub>0r</sub> 6.65 kN
Fatigue load limit C<sub>u</sub> 0.505 kN
--- Unit information
Mass 0.5 kg
