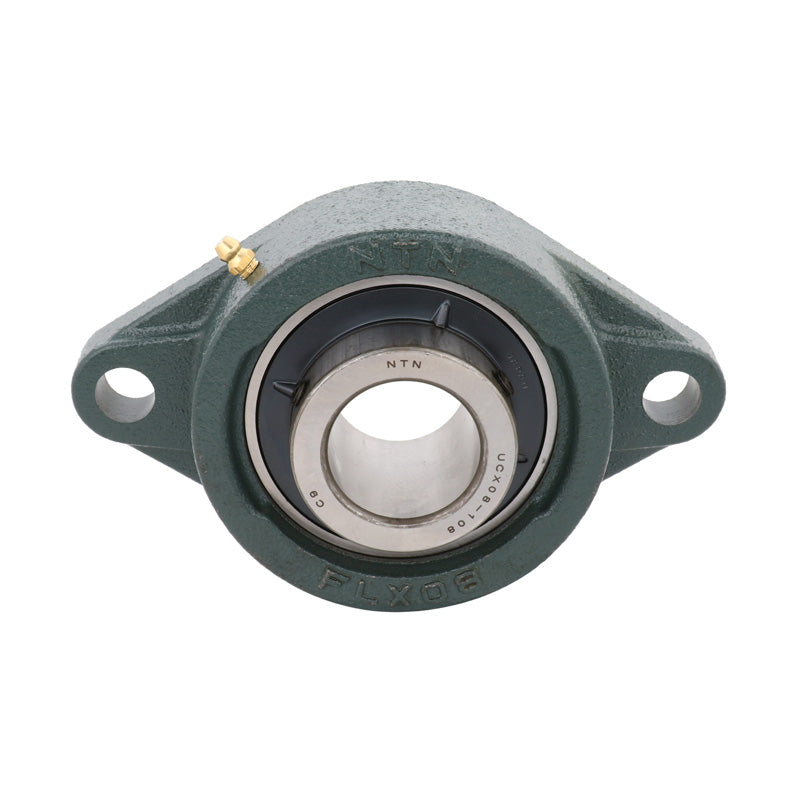

• NTN M-UCFL208D1 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
1 1

SKU: M-UCFL208D1-NTN

NTN M-UCFL208D1 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days

NTN M-UCFL208D1 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
€41,74 ex VAT
€41,74 ex VAT
Sale Sold out

In stock

Price Break
3+ €31,72
4+ €29,94
9+ €29,58
19+ €29,22
49+ €28,87
99+ €28,51
499+ €26,73
999+ €26,37
1999+ €26,02
2999+ €25,66
4999+ €24,95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL200_DESC
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Style:
UCFL
Bolt Hole Centres:
144mm
Technical
--- Dimensions
Shaft diameter 40mm
H 175mm
J 144mm
A<sub>2</sub> 21mm
A<sub>1</sub> 15mm
A 36mm
N 16mm
L 100mm
A<sub>0</sub> 51.2mm
B 49.2mm
S 19mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 32.5 kN
Static load C<sub>0r</sub> 17.8 kN
Fatigue load limit C<sub>u</sub> 1.24 kN
--- Unit information
Mass 1.5 kg
