SKU: M-UCHB207D1-NTN

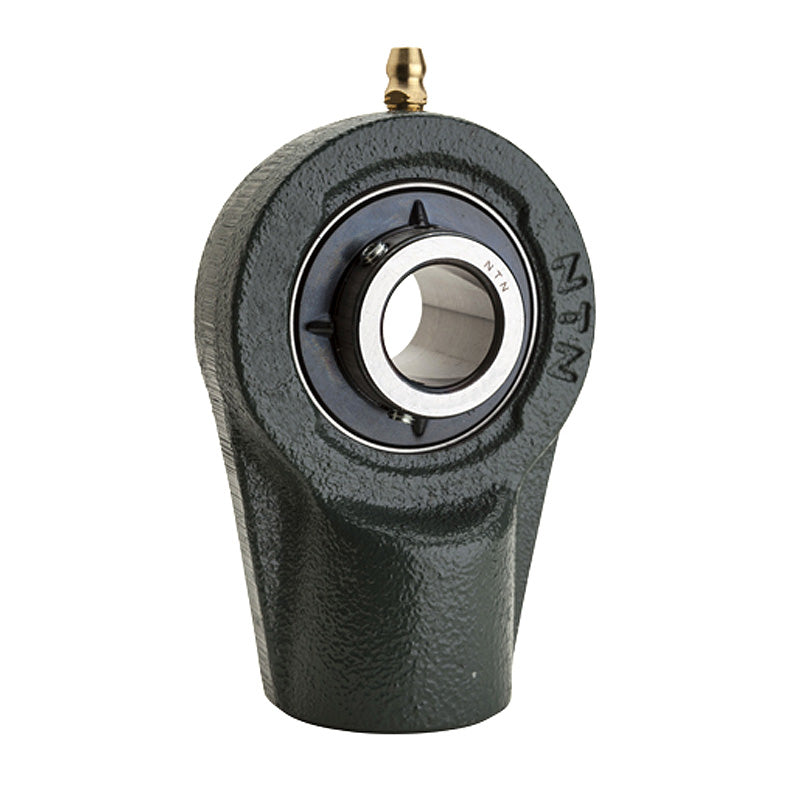

NTN M-UCHB207D1 Metric Cast Iron Hanger Bearing Unit with 35mm Bore Insert - Allow 2-3 Days
- Regular price
- €45.78 ex VAT
- Sale price
- €45,78
- Regular price
-
Not in stock
Quantity Price Breaks
3
€40.74
4
€38.46
9
€38.00
19
€37.54
49
€37.08
99
€36.62
499
€34.34
999
€33.88
1999
€33.42
2999
€32.96
4999
€32.05
SKU:
M-UCHB207D1-NTN
NTN M-UCHB207D1 Metric Cast Iron Hanger Bearing Unit with 35mm Bore Insert - Allow 2-3 Days
- Regular price
- €45.78 ex VAT
- Sale price
- €45,78
- Regular price
-
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

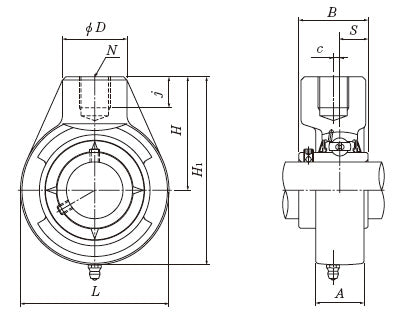

Technical
| Shaft diameter | = | 35mm |
| L | = | 92mm |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 116mm | |
| c | = | 0mm |
| A | = | 30mm |
| H | = | 70mm |
| N | = | RP3/4 |
| D | = | 40mm |
| j | = | 19mm |
| B | = | 42.9mm |
| S | = | 17.5mm |
| Mass | = | 1.2 kg |
