SKU: M-UCT208D1-NTN

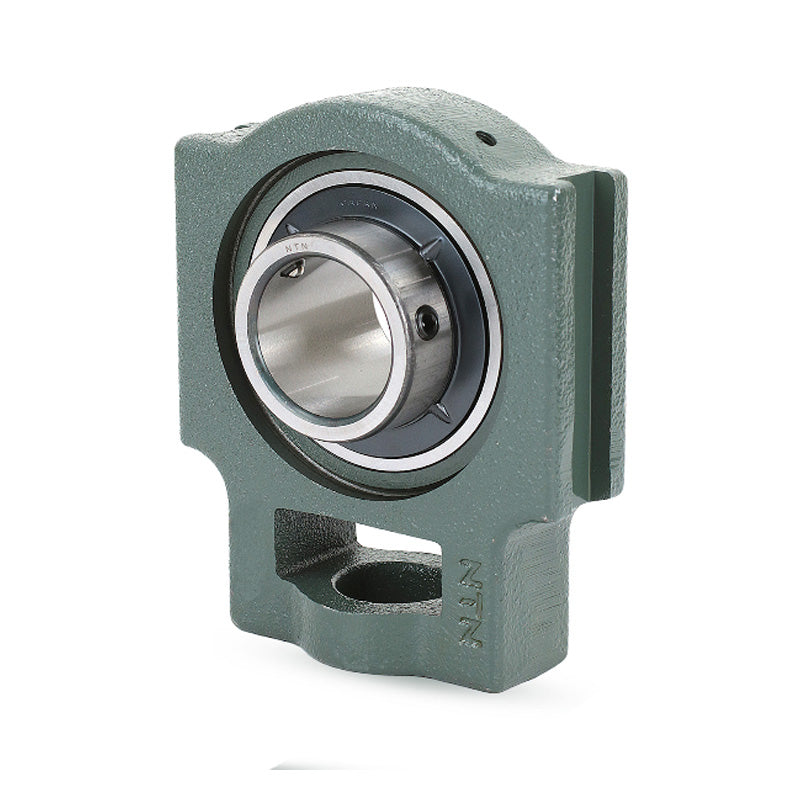

NTN M-UCT208D1 Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- €43.73 ex VAT
- Sale price
- €43,73
- Regular price
-
Not in stock
Quantity Price Breaks
3
€38.92
4
€36.73
9
€36.30
19
€35.86
49
€35.42
99
€34.98
499
€32.80
999
€32.36
1999
€31.92
2999
€31.49
4999
€30.61
SKU:
M-UCT208D1-NTN
NTN M-UCT208D1 Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- €43.73 ex VAT
- Sale price
- €43,73
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 40mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 19mm | |
| L< | = | sub> |
| 2< | = | /sub> |
| = | 18mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 83mm | |
| N< | = | sub> |
| 2< | = | /sub> |
| = | 49mm | |
| N | = | 29mm |
| L< | = | sub> |
| 3< | = | /sub> |
| = | 83mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 16mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 102mm | |
| H | = | 114mm |
| L | = | 144mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 33mm | |
| A | = | 49mm |
| r | = | 56mm |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 88mm | |
| B | = | 49.2mm |
| S | = | 19mm |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 32.5 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 17.8 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 1.24 kN | |
| --- | = | Unit information |
| Mass | = | 24 kg |
