SKU: M-UELF208D1-NTN

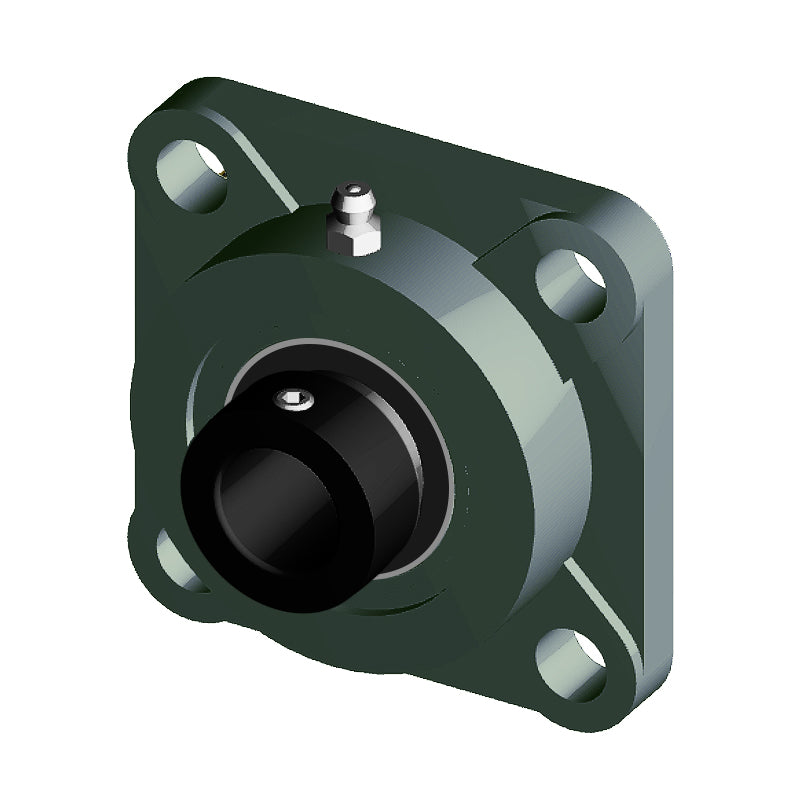

NTN M-UELF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €47.96 ex VAT
- Sale price
- €47,96
- Regular price
-
Not in stock
Quantity Price Breaks
3
€42.68
4
€40.29
9
€39.81
19
€39.33
49
€38.85
99
€38.37
499
€35.97
999
€35.49
1999
€35.01
2999
€34.53
4999
€33.57
SKU:
M-UELF208D1-NTN
NTN M-UELF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €47.96 ex VAT
- Sale price
- €47,96
- Regular price
-
Description
UELF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing

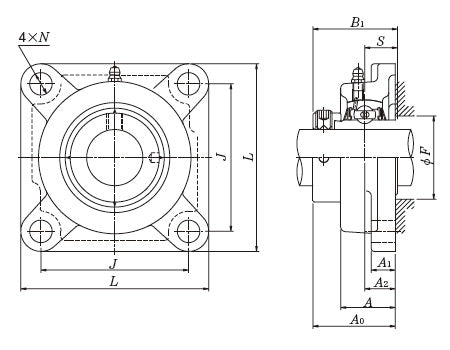

Technical
| Shaft diameter | = | 40mm |
| L | = | 130mm |
| J | = | 102mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 21mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 15mm | |
| A | = | 36mm |
| N | = | 16mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 55.9mm | |
| B< | = | sub> |
| 1< | = | /sub> |
| = | 56.3mm | |
| S | = | 21.4mm |
| F min. | = | 57mm |
| Fixing bolt | = | M14 |
| Mass | = | 1.9 kg |
