SKU: M-UELFC207D1-NTN

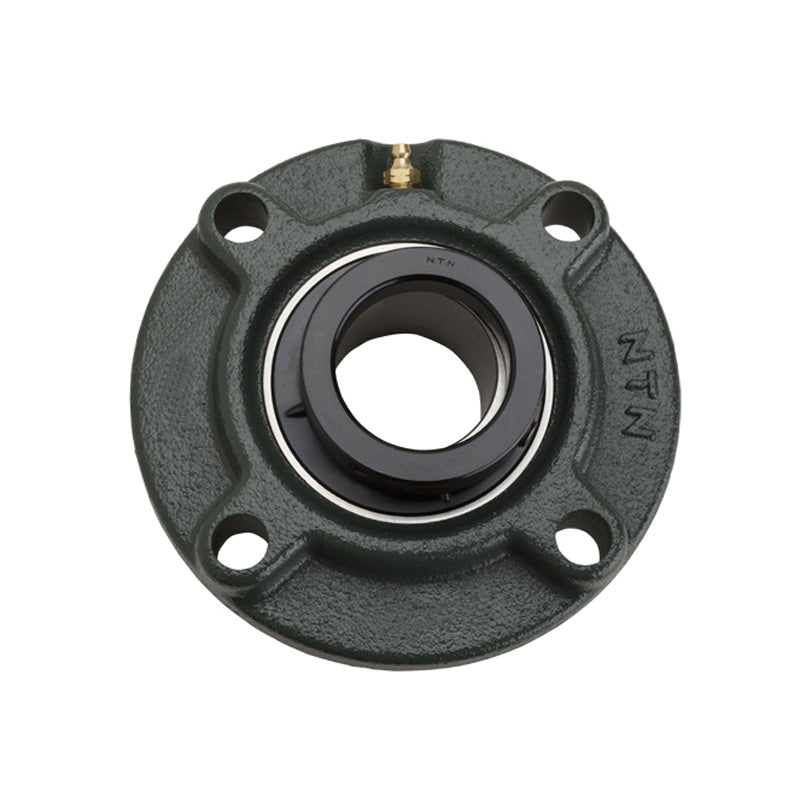

NTN M-UELFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €45.78 ex VAT
- Sale price
- €45,78
- Regular price
-
Not in stock
Quantity Price Breaks
3
€40.74
4
€38.46
9
€38.00
19
€37.54
49
€37.08
99
€36.62
499
€34.34
999
€33.88
1999
€33.42
2999
€32.96
4999
€32.05
SKU:
M-UELFC207D1-NTN
NTN M-UELFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €45.78 ex VAT
- Sale price
- €45,78
- Regular price
-
Description
UELFC200 Series 4 Bolt Cast Iron Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing

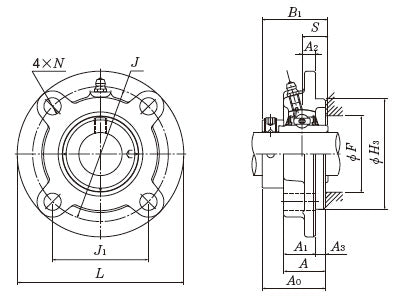

Technical
| Shaft diameter | = | 35mm |
| L | = | 135mm |
| J | = | 110mm |
| (J< | = | sub> |
| 1< | = | /sub> |
| = | 77.8mm | |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 11mm | |
| N | = | 14mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 8mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 26mm | |
| A | = | 34mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 90mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 51.3mm | |
| B< | = | sub> |
| 1< | = | /sub> |
| = | 51.1mm | |
| S | = | 18.8mm |
| F min. | = | 53mm |
| Fixing bolt | = | M12 |
| Mass | = | 1.8 kg |
