SKU: M-UELFL207D1-NTN

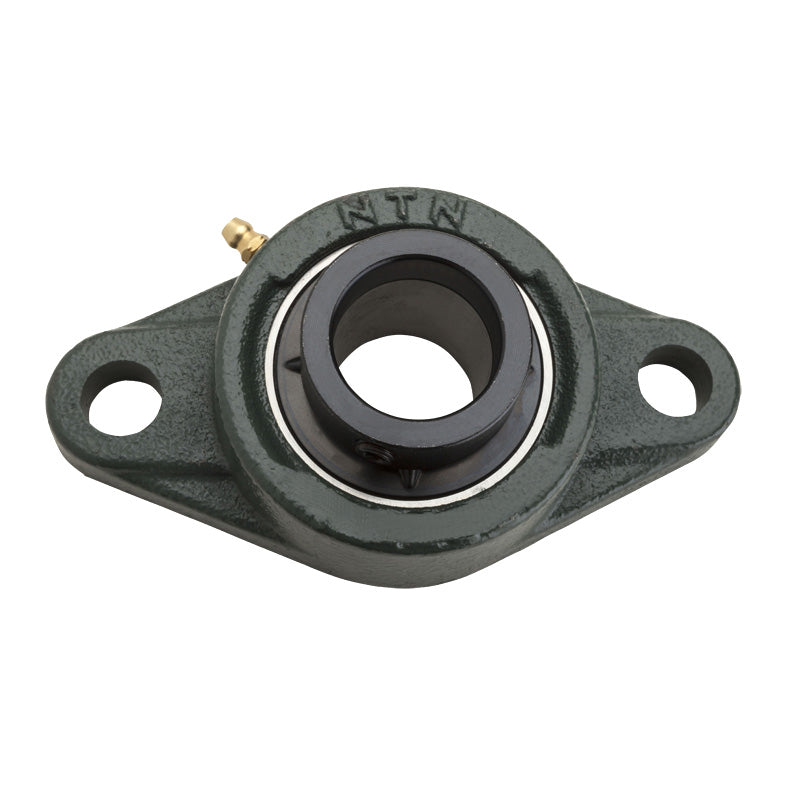

NTN M-UELFL207D1 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELFL207D1 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UELFL
- Bolt Hole Centres:
- 130mm
Technical
Technical
| Shaft diameter | 35mm |
|---|---|
| H | 161mm |
| J | 130mm |
| A<sub>2</sub> | 19mm |
| A<sub>1</sub> | 15mm |
| A | 34mm |
| N | 16mm |
| L | 90mm |
| A<sub>0</sub> | 51.3mm |
| B<sub>1</sub> | 51.1mm |
| S | 18.8mm |
| F min. | 51mm |
| Fixing bolt | M14 |
| Mass | 1.3 kg |
